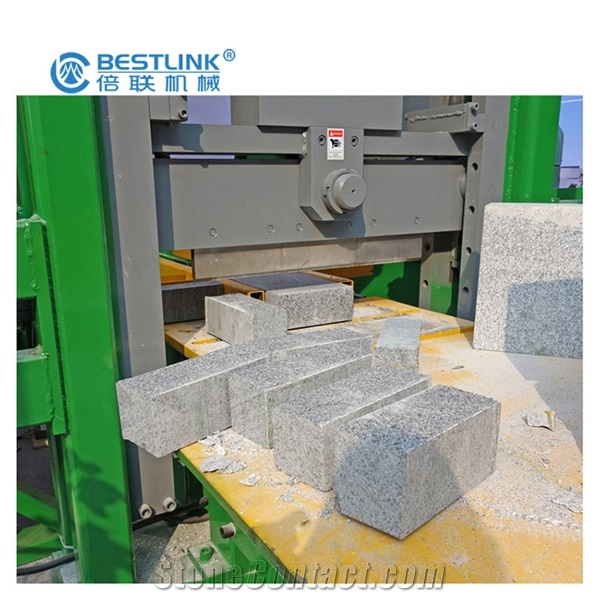

Cobble/Paving/Wall Stone Splitting Machine

FOB Price:$10000-35000

Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time: 15 days
Warranty:12 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Eatablished :Dec 22,2000

Main Product:

Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features

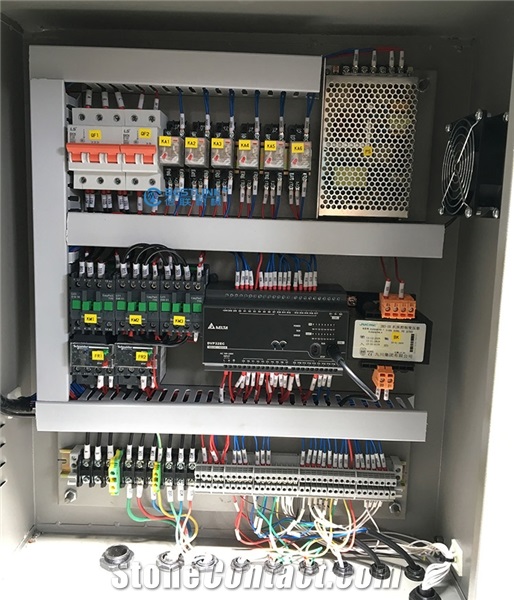

Specification: 1 Hydraulic open-frame splitting machine for paving stone 2 CE certificate 3 world famous components 4 low maintain BESTLINK HYDRAULIC STONE SPLITTING MACHINE Bestlink's BRT series hydraulic stone splitting machine is suitable for splitting all types of natural and artificial stones, cube stone/curb stone/wall stone/blockstone/tiles/pavingstone/countertops/vanity tops. Every splitting machine can be integrated in a production line. It could be especially designed according to your equirements. Main characters: 1) The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate. 2) The hydraulic system adopts from German Bosch Rexroth, providing sustainable, stable and sufficient power to the machine. 3) The electrical motor adopts from German Siemens, providing stable performance of the complete machine working. 4) With intelligent gear cutting head, itcould adjust itself according to the smooth condition of the stone surface. 5) We can design a perfect stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers.
Technical Data
Parameters
Unit
BRT120T-1000*300-M
Machine length (L)
mm
3300
Machine width (W)
mm
1200
Hydraulic oil grade
46#
Max. Pressure
tons
120
Machine height (H)
mm
2850
Approximate weight
Kg
4200
Electric current
A
30
Main Motor Power
kw
15
Max. working height
mm
300
Oil tank capacity
L
780
Max. working width
mm
1000
Software
 Specifications      Bridge Type / Closed Type    C-Front / Open Type
Model No.   BRT320T-1200*800-M BRT200T-1200*400-M BRT160T-1000*400-M BRT120T-1000*300-M BRT70T-800*300-M BRT40T-600*200-M BRT160T-500*550 BRT70T-400*350 BRT40T-240*320 BRT20T-160*180
splitting force T 320 200 160 120 70 40 160 70 40 20
max.splitting width mm 1200 1200 1000 1000 800 600 500 400 240 160
max.splitting height mm 800 400 400 300 300 200 550 350 320 180
Single blade size mm 194*50*40 194*50*40 194*50*40 194*50*40 160*40*25 160*40*25 194*50*40 194*50*40 160*40*25 160*40*25
Blade QTY. pcs 48 48 40 40 40 32 20 16 12 8
Adaptation of upper/lower blade mm 36*20 30*15 30*15 20*10 20*10 20*10 30*15 20*10 15*10 10*5
Power supply KW 22 15 15 15 11 7.5 15 11 7.5 7.5
main oil cylinder data mm Φ400/Φ280-800 Φ320/Φ200-400 Φ280/Φ200-400 Φ280/Φ200-300 Φ220/Φ140-300 Φ180/Φ120-200 Φ280/Φ200-550 Φ220/Φ140-350 Φ160/Φ110-320 Φ120/Φ80-180
Bench height mm 900 900 900 900 900 900 900 900 900 900
machine overall size(L*W*H) mm 2250*1500*3515 2010*1240*2855 1810*1240*2855 1780*1140*2575 1570*1140*2490 1390*1140*2300 1970*1200*3300mm 1500*1200*2520 1260*1000*2300 1145*1000*2030
machine weight kg 7000 6000 4800 4000 3000 2200 7000 3000 2200 1800
Hydraulic unit size mm 1280*1000*1475 1280*1000*1475 1280*1000*1345 1280*1000*1345 960*650*1220 800*650*1100 1280*1000*1345 960*650*1220 800*650*1100 800*650*1100
Hydraulic unit weight kg 600 600 550 550 400 310 550 400 310 310

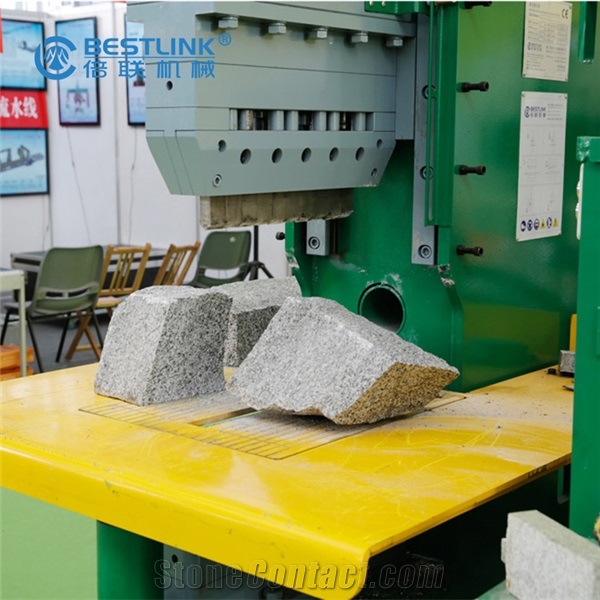

Processed Stone Photos
  • Processed Stone Photos

Components
Consumables
