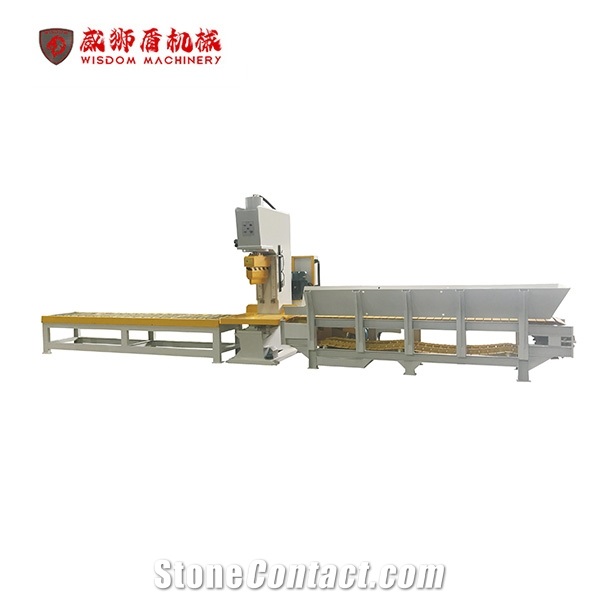

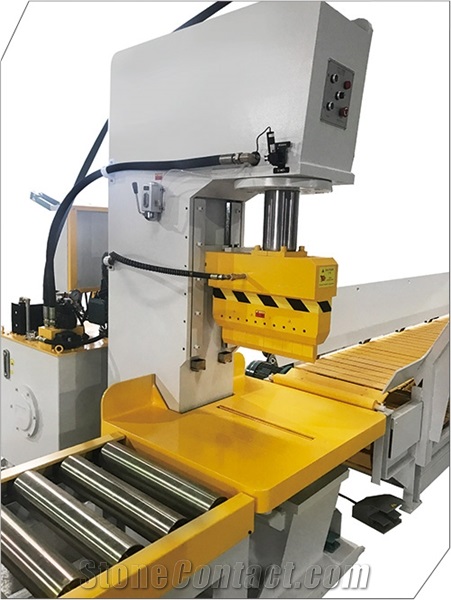

Guillotine Hydraulic Stone Splitter For Paving Stone Wall Stone
FOB Price:$10000-50000
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
40days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 20,2021
Main Product:
Bridge Saw, Stone Cutting Machine, Block Cutting Machine, Wire Saw Machine, Stone Splitter, Stone Polishing Machine|
Machinery Function Features
It suitable for splitting all types of natural and artifical stones,
used for Cobble stones,Paving stones,
Tiles for paving and cladding,Wall stones and Kerb stones,etc.
The hydraulic system and electrical system used high quality and reliable components.

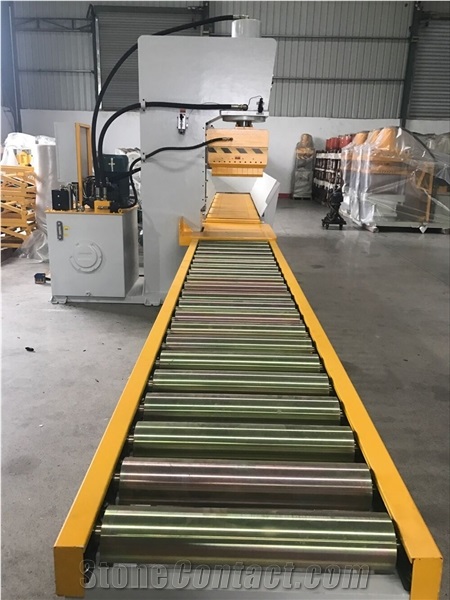

Our splitter machine is equip with hopper conveyor and roller conveyor.
Our splitter machine is high speed,good quality,low consumpiton.
Technical Data
Parameters |
Unit |
WSDSP |
Frequency |
Hz |
50/60 |
Roller conveyor width |
mm |
600 |
Roller conveyor length |
mm |
3700 |
Hopper conveyor length |
mm |
3800 |
Flow rate |
L/min |
47 |
Output per Hour |
m2/h |
18 |
Main motor power |
kw |
18.5 |
Oil tank capacity |
L |
350 |
Hopper conveyor width |
mm |
600 |
Machine height |
mm |
2559 |
Blade length |
mm |
500 |
Approximate weight |
kg |
4800 |
Machine length |
mm |
2086 |
Max working width |
mm |
500 |
Hydraulic oil grade |
# |
46# |
Machine width |
mm |
1000 |
Max Pressure |
tons |
120 |
Blade feeding speed |
cm/s |
9 |
Voltage |
V |
custmized |
Max working height |
mm |
500 |

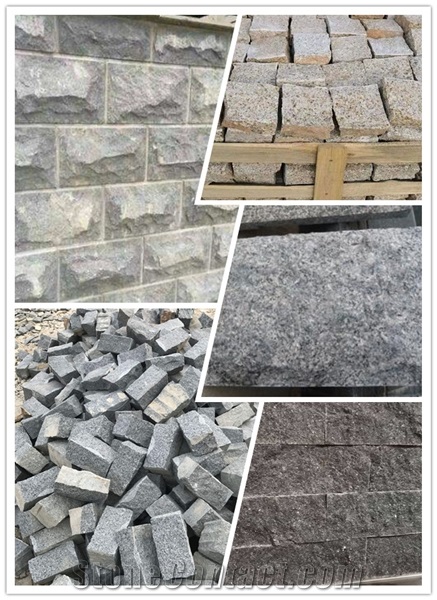

Processed Stone Photos

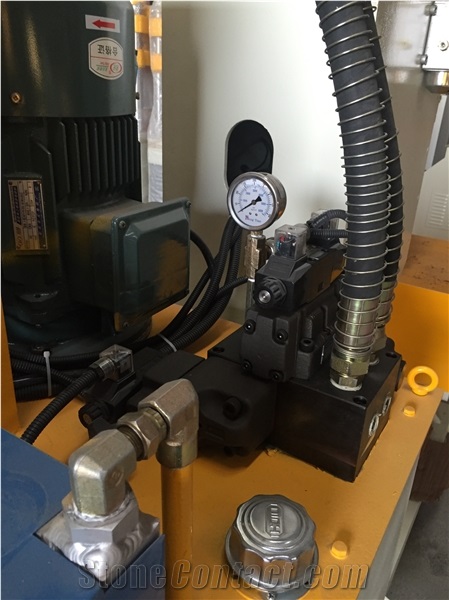

Components
Consumables
-

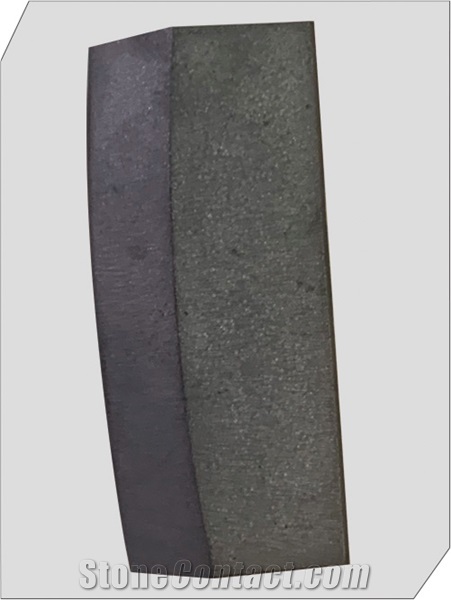

curve segment
