Pedrini- GS122 Open frame gang saw for sawing marble blocks

Name: Pedrini- GS122 Open frame gang saw for sawing marble blocks
Brand: Pedrini S.p.a. ad Unico Socio
SKU: 3472
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw

Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Pedrini S.p.a. ad Unico Socio

Pedrini

Italy

Main Product:

Gs 121 Open Frame Gang Saw, M945 Bridge Saw, B220mv Slabs Polishing Machine For Marble, Wire Saw Machines, Gang Saw Machines, Giant Disc Saw, Bridge Saw, Polishing Line, Slab Scanner, Resin Line, Trimming Machine, Cruss Cutting Machine, Chamfering Machine|

Contact supplier

Start Order

You may also like

TJBM Marble Multi Blade Gang Saw

Multi Blade Gang Saw Machine For Marble

Battle-Proven Multi Blade Gang Saw For Marble Block Cutting

Ultra Thin Wire Saw Machine-Roller Grooving Machine

Multi Blade-Diamon Gang Saw Block Cutting Machine

Product Detail
Company Profile

Overview

Machinery Function Features

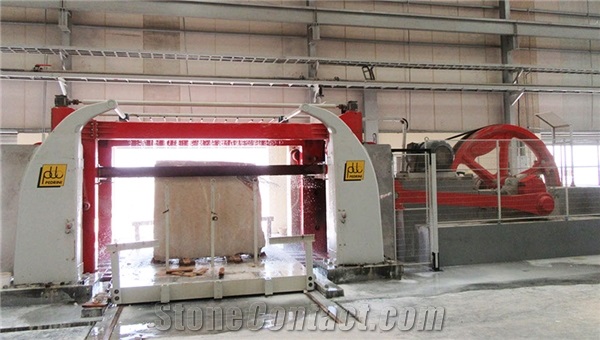

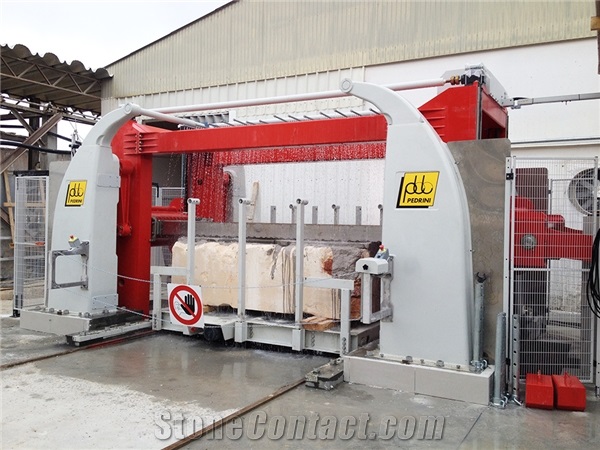

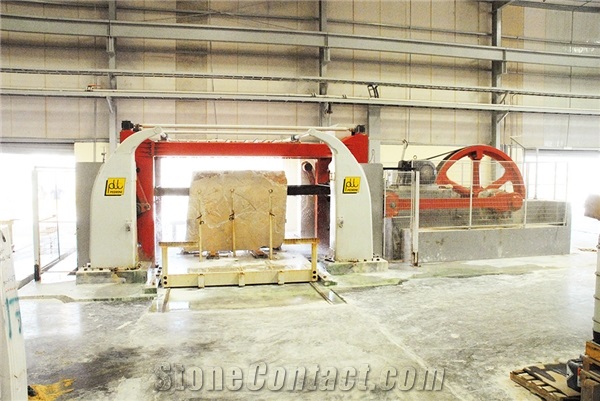

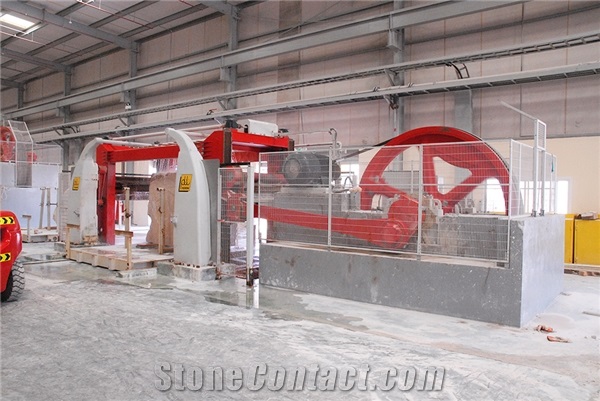

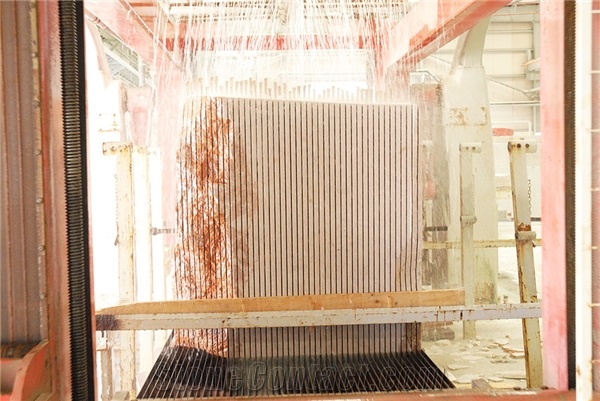

GS122 is an open frame gang saw for sawing marble blocks. The gang saws of the range GS122 are available in 3 versions: with 30, 40 and 50 blades according to the working width of the blades holder frame. Open gang saws are mainly used for sawing irregular marble blocks and when big productions are not required.

Technical Data

Parameters	Unit	GS122 L30	GS122 L40	GS122 L50
Blades length	mm	4050	4050	4050
Rising and quick lowering motor power	kw	3	3	3
Block max. height	mm	2000	2000	2000
Block max. length	mm	3200	3200	3200
Machine overall length	mm	10800	11000	11000
Minimum slab thickness	mm	11 or 15	11 or 15	11 or 15
Approx. Weight	Kg	29000	35000	37000
Installed power	kw	60	82	82
Machine overall width	mm	3000	3400	4000
Blade stack width with max. tension	mm	1000	1200	1500
Strokes of the blades	mm	600	600	600
Fly wheel revolution	rpm	90	90	90
Lowering motor power	kw	0.55	0.55	0.55
Cooling water min. pressure 1.5 bar	L/min	270	360	450
Main motor	kw	55	75	75
Max vertical discs /blade no	nr	30	40	50
Lowering speed	cm/h	15/50	15/50	15/50
Machine overall height	mm	3250	3250	3250
