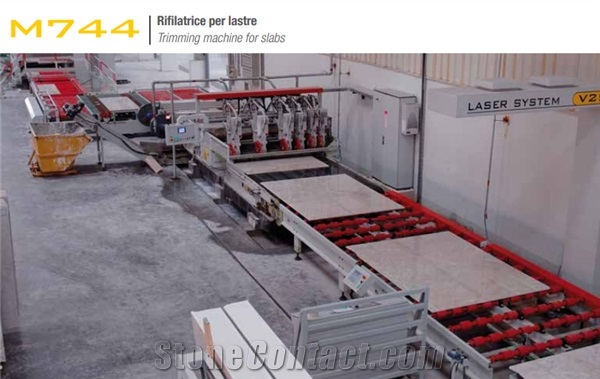

Pedrini M744LD - M744MD - M744KD - Edge trimming machine for marble, travertine, granite slabs and strips

Upon request, the machine can be equipped with a laser mounted on the disc holder head to show the position where the cut will be performed on the slab. Trimming machine M744 for strips with useful cutting width up to 900 mm. Trimming machine M744 for strips with disc diameter 500 mm for cutting thickness up to 120 mm. Trimming machine M744 for strips to cut formats up to 650 x 650 mm. In this case, the machine is equipped with a squaring system to align each format before the trimming process. Upon request, all Pedrini M744 trimming machines, both for strips and for slabs, can be equipped with the exclusive cutting system with aligned double disc which allows to directly cut thickness up to 70 mm twice faster than standard versions. The disc holder head special double support is manufactured in one piece and it ensures the double disc perfect alignment. The simultaneous use of the two discs allows a high production capacity and a lower tool consumption as well. Power varying from 4 to 9 kW according to the type of material and to the required thickness.
