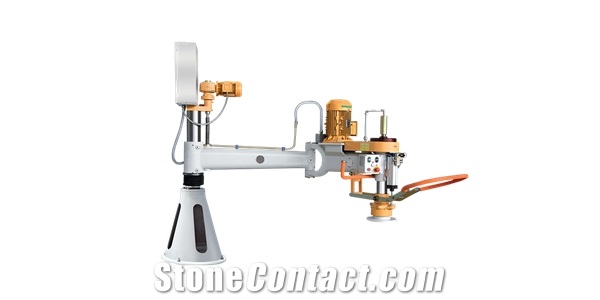

Comandulli M.B. Manual Arm Polishing Machine

Name: Comandulli M.B. Manual Arm Polishing Machine
Brand: Comandulli Costruzioni Meccaniche S.R.L.
SKU: 3537
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Surface Processing Machines Arm Polishing Machine

Usage: Granite, Marble, Limestone, Basalt, Quartzite

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Comandulli Costruzioni Meccaniche S.R.L.

Comandulli

Italy

Eatablished :Dec 30,1972

Main Product:

Stone Polishing Machines, Stone Cutting Machines, Second Hand Machine|

Contact supplier

Start Order

You may also like

SFM-2600 New Haineng Manual Polishing Machine

Manual Polishing Machine -Arm Polishing Machine

Joborn Manual Polishing Machine SF-2500/3000

Manual Arm Polishing Machine

Manual Arm Polishing Machine For Granite Marble Slabs

Product Detail
Company Profile

Overview

Machinery Function Features

Multipurpose, handy, simple. Very strong cast iron structure High quality steel mechanical parts. Features THE UNIQUE FEATURES OF COMANDULLI M.B. MACHINE Strong spindle with two speeds and transmission obtained through V-type belts. Abrasive-holding plate supplied with special elastic joint. Neoprene guard for column protection OPTIONS There is always enough room for some further desires. Spindle with 4 planet wheels Bushhammering plate Tool for brushing Ball joint for curved surfaces Spindle speed controlled by inverter

Technical Data

Parameters	Unit	M.B.1 - 2	M.B.1 - 2 SUPER	M.B.G.	M.B.T. 2	M.B.T. 4
Installed power	kw	6	6	6	7	7
Max. processable width	mm	2500	3000	3000	3500	5500
Articulated arm length	mm	2000	2250	2250	2250	2250
Max. processable length	mm	3500-1400	4300-1400	4300-1400	5000-2000	7000-2000
Planet spindle speed	rpm	350-700	350-700	350-750	350-750	350-750
Vertical axis motor power	kw	0,55	0,55	0,55	0,55	0,55
Minimum processable thickness	mm	400	400	400	400	400
Spindle motor power	kw	3 / 5,5	3 / 5,5	3 / 5,5	3 / 5,5	3 / 5,5
Spindle lifting cylinder stroke	mm	200	200	200	200	200
Spindle revs	r/min	500-1000	500-1000	500-1000	500-1000	500-1000
Lifting stroke	mm	400	400	700	400	400
Traverse motor power	kw	-	-	-	0,55	0,55
Approx. Weight	Kg	600	650	750	1600	2300
