Globo Variaxis Plus XL 5 interpolated axis CNC Bridge Saw Machine

Name: Globo Variaxis Plus XL 5 interpolated axis CNC Bridge Saw Machine
Brand: EmmeDue Division - Industrie Montanari S.r.l.
SKU: 3576
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Remote troubleshooting

Supplier

EmmeDue Division - Industrie Montanari S.r.l.

EmmeDue

San Marino

Main Product:

CNC Bridge Saws , CNC Work Center|

Contact supplier

Start Order

You may also like

Electromagnetic Valve

Prussiani Star Plus - Cnc Bridge Saw

4 Axis CNC Integrated Bridge Cutter Edge Cutting Machine DF-400

CNC Machine Guard Shield Dust Cover Bellows Cover

New 3D 5 Axis CNC Stone Bridge Saw Machine For Quartz In America USA

Product Detail
Company Profile

Overview
Components

Machinery Function Features

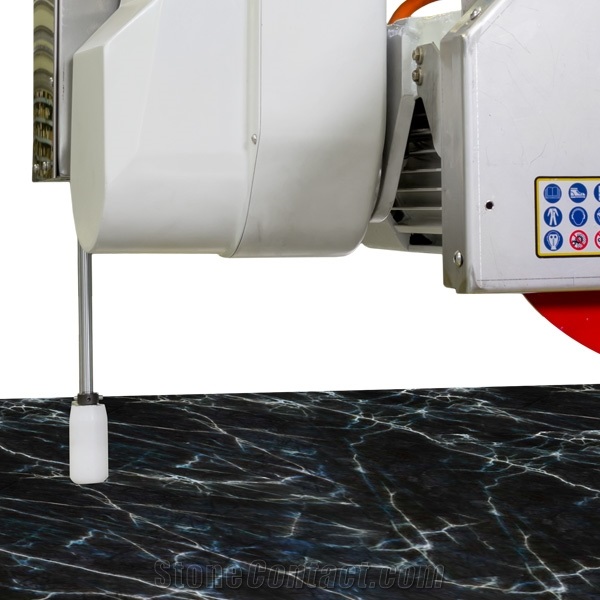

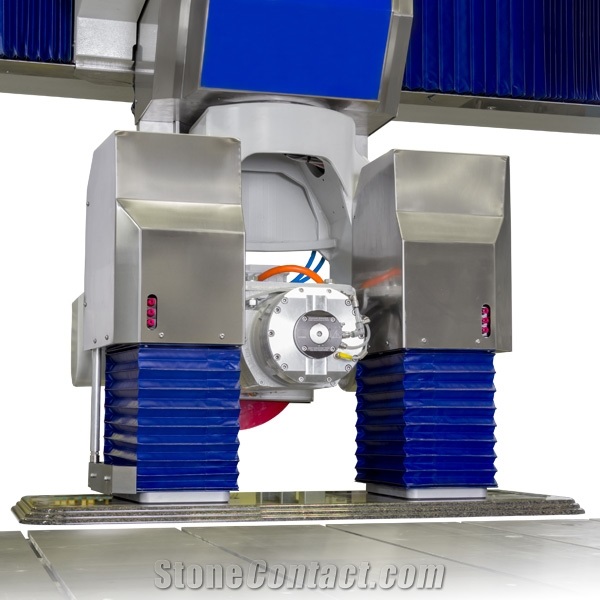

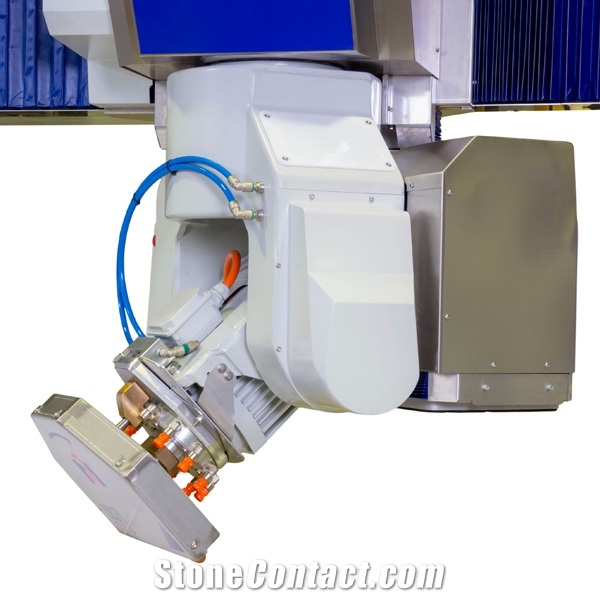

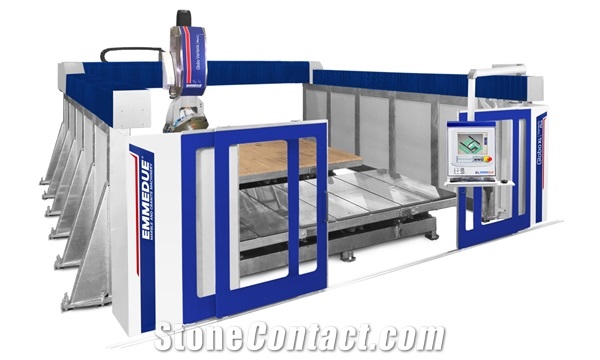

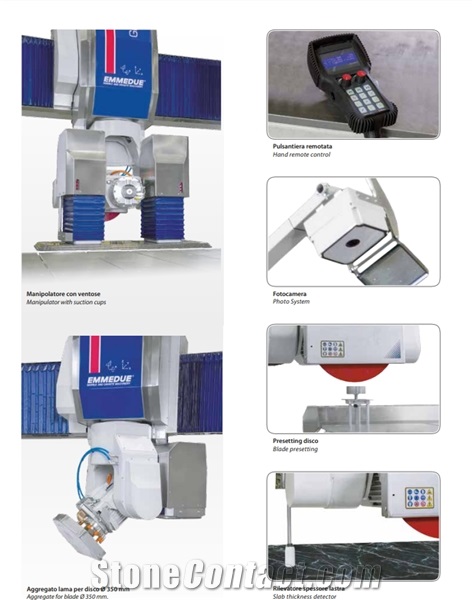

Multifunction with 5 interpolated axis managed by new generation numeric control that manages both automatic movements of all axis that the new device with suction cups used for the shift of the pieces. The structure of the vertical carriage in the form of a cage, is performed in electro-welded steel which ensures the machine more stability and rigidity, minimizing the vibrations generated during processings. The high speed movements of the X, Y and Z axis, are obtained with brushless motors and the movement is performed by recirculating roller balls slide guides automatically lubricated. The automation of all the processing is made possible by the extended length of Y axis up to 7 meters and by the presence of two different working table, one with wood surface and the other one with aluminum. The movement of the vertical Z axis is performed by a screw with recirculating balls supported by a pneumatic piston compensator. The translational motion of the beam is performed by a motor positioned between two pinions which scroll on a precision rack with inclined teeth. Thanks to the manipulator, Globo XL lifts up and moves the pieces from the wood cover working table, placing them on the aluminum table with suction cups, all this without the intervention of an operator and reducing downtime.

Technical Data

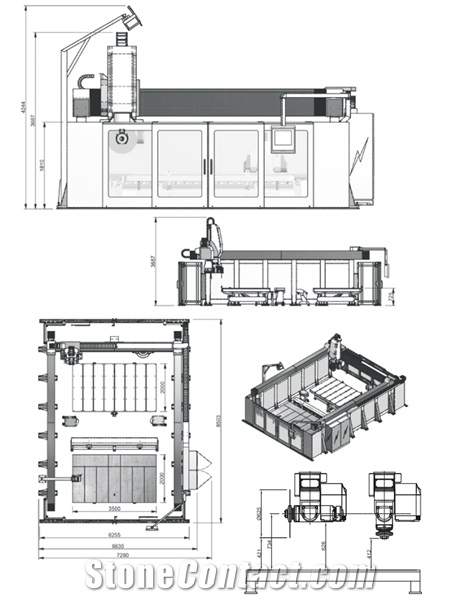

Parameters	Unit	Globo Variaxis Plus XL
C axis blade rotation	°	0 ÷ 370
Max. cutting depth	mm	200
Machine width	mm	8400
Store tools change	nr	20 + 2 aggregate
Head motor power	hp	18
Vertical stroke speed (Z displacement speed)	m/min	7.5
Max. liftable weight with all the vacuum cups activated	Kg	180
Standard voltage	Volt / Hz	400 / 50
Machine length	mm	6500
Machine height	mm	3600
Transversal stroke speed (Y displacement speed)	m/min	30
Max. revolutions of the spindle unit	r/min	9000
Horizontal stroke(X axis travel)	mm	3600
Dimensions of the work table(L×W)	mm	3500 x 2000
Disc diameter	mm	625/(disc hole 65)
Head raising/lowering stroke(Z axis travel)	mm	580
Approximate weight without table	Kg	12100
Bridge transversal stroke(Y axis travel)	mm	6100
Horizontal stroke speed(X axis displacement speed)	m/min	30
Tools holder head inclination(A axis blade rotation)	°	+5 / -95
Tool connection		ISO 40
Max number of interpolated axes	nr	5

Software

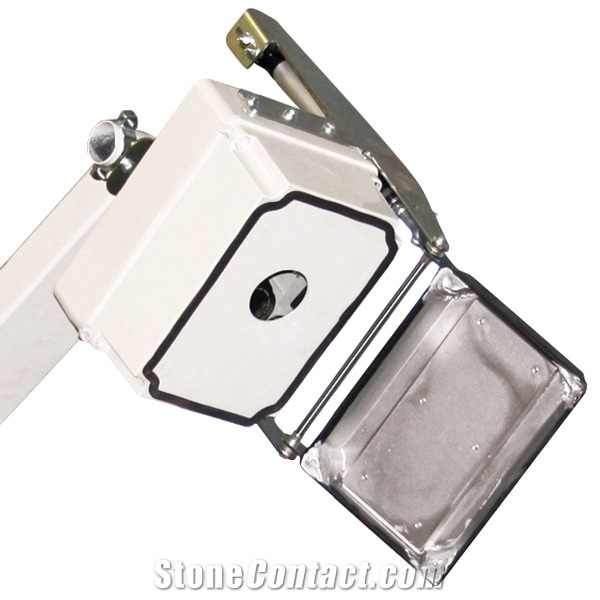

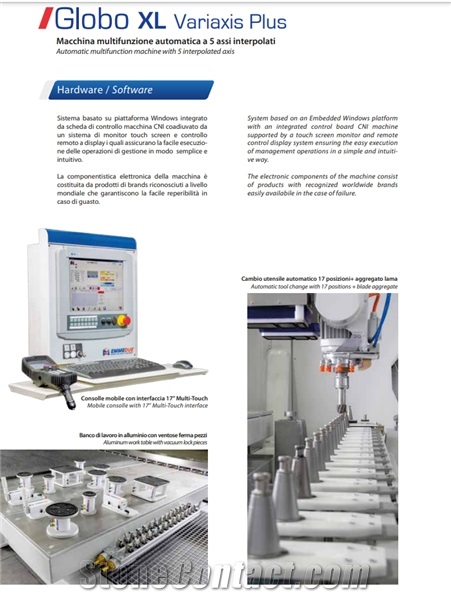

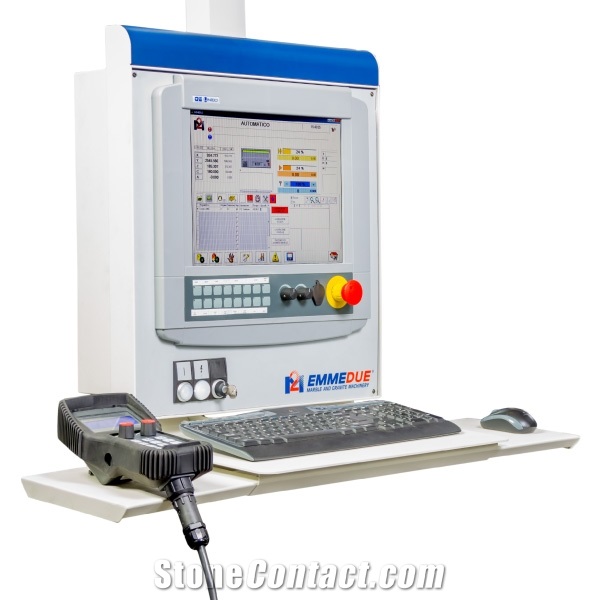

System based on an embedded windows base with an integrated control board CNI machine supported by a of touch screen monitor and remote control display system ensuring the easy execution of management operations in a simple and intuitive way.
The electronic components of the machine are controlled by products with recognized worldwide brands that ensure easy availability in the case of failure.

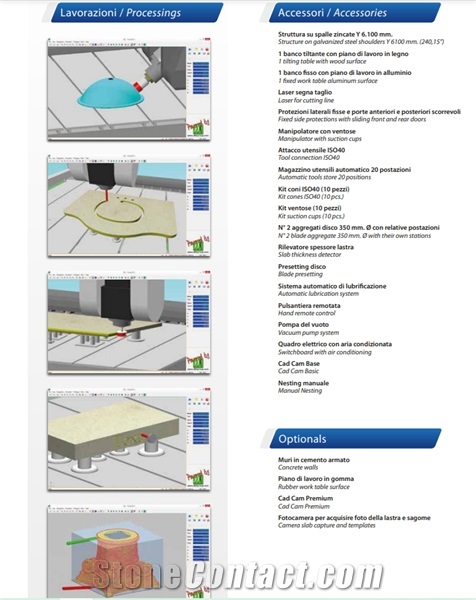

Cad Cam software manages and optimizes all the phases of the process: from the design and/or import of parts, the definition of machining strategies, to the estimated timing and control of collisions with 3D simulation, through to the provision of parts and underparts on the workbench.

Automatic generation of roughing cycles, coring, drilling, finishing, profiling, pocketing and polishing.
Free drawing of geometric entities arches, bi-arcs, lines, rectangles, squares, ellipses, circles, regular polygons, joints, chamfers, construction designs.
Drawing from predefined parametric models: vanity tops, kitchen tops, tables, including managing the downside, the canals and the sink, etc.
Definition of guided basic three-dimensional surfaces, starting with sections and/or guidelines drawn on the XY plane (frames, shower trays, concave convex sinks, sinks in multiple sections, columns section and variable torque)
Write in different fonts also shaped profiles, including characters in italics, characters with drills, working downside, relief and engraving with sharp edges, fenerary art.
Nesting manual, facilitates and optimize arrangement of the pieces on the worktable.
