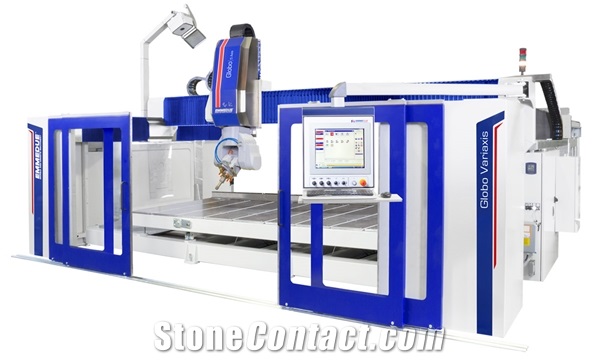

EmmeDue Globo Variaxis 5 Axis CNC Cutting Machine

Multifunction with 5 interpolated axis managed by new generation numeric control that manages both automatic movements of all axis. The high speed movements of the X, Y and Z axis, are obtained with the installation of brushless motors and the movement is performed by automatically lubricated recirculating roller balls slide guides. The movement of the vertical Z axis is performed by a screw with recirculating balls supported from a pneumatic piston compensator. The translational motion of the beam is performed by a motor positioned between two pinions which scroll on a precision rack with inclined teeth. The structure of the vertical carriage in the form of a cage, is performed in electro welded steel which ensures the machine more stability and rigidity, minimizing vibrations generated during processing.
