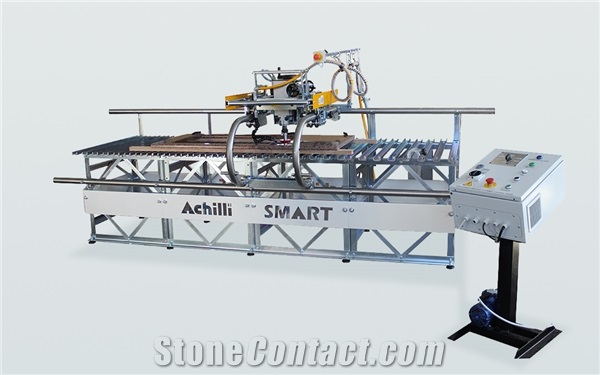

SMART MULTIPURPOSE MACHINE- MANUAL WORKING CENTER FOR KITCHEN COUNTERTOPS
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 31,1949
Main Product:
Floor Grinder, Compact Bridge Saw With Turning Head, Mitre Saw Machines, Compact Bridge Saw With Mobile Bridge, Tile Cutting Machines, Bridge Saw With Turning Table For Marble|
Machinery Function Features

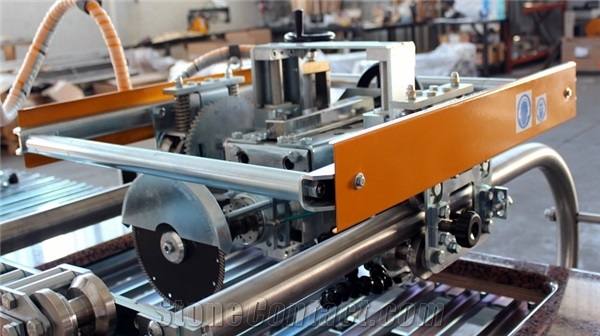

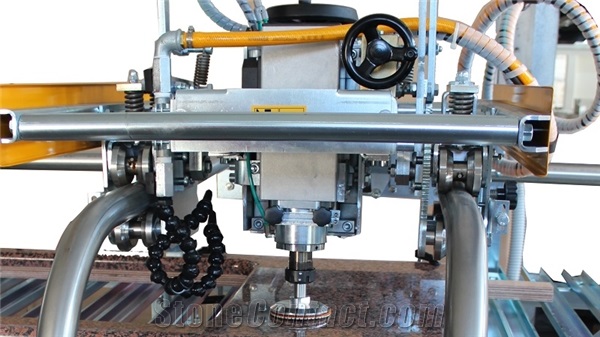

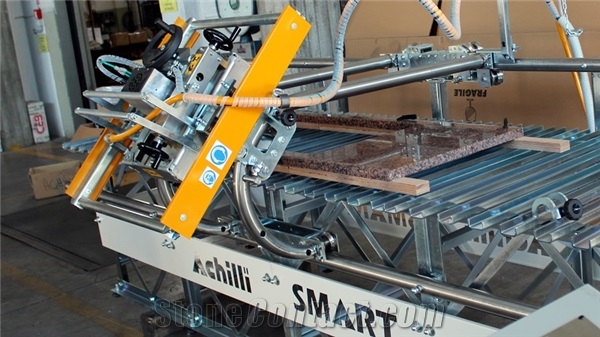

Manual working center for bath and kitchen tops. The solution for cutting, shaping and polishing internal and external contours, chamfering, drilling, performing sink cut-out, recess drains, grooves and slots on edges.
ADVANTAGES
New "all in one" machine SMART for kitchen tops:
Cutting, shaping, polishing, chamfering and drilling without limitations;
It allows to create a complete kitchen top;

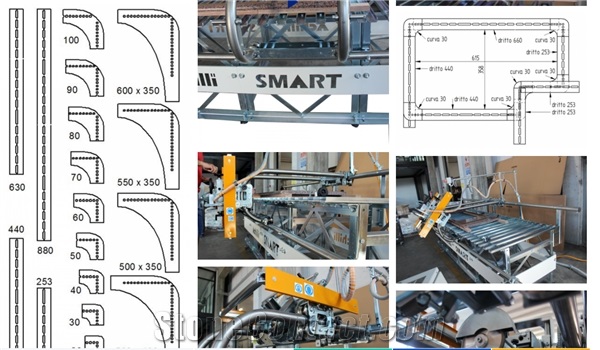

Possibility to use templates to create washbasins.
Technical Data
Parameters |
Unit |
SMART |
Max. diameter of the blade |
mm |
200 |
Z axis stroke |
mm |
150 |
X axis stroke |
mm |
3300 / 3750 |
Standard voltage |
Volt |
230V-50/60Hz (1ph.) |
Shaping Tool max. diameter |
mm |
115-120 |
Max cutting depth |
mm |
35 |
Max. core drill diameter |
mm |
80 |
Y axis stroke |
mm |
650 /1250 |
Shaping Tool max. length |
mm |
80 |
Total Power required |
kw |
3.3 |
Tool-holder spindle rotation speed |
r/min |
1500/10000 |
