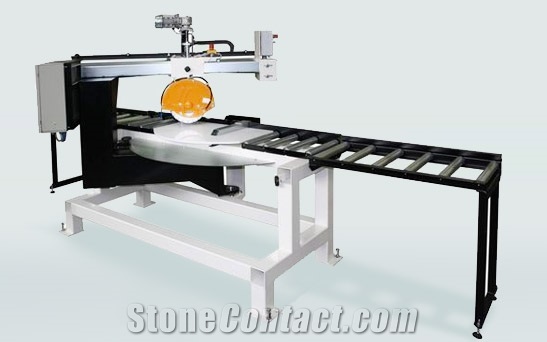

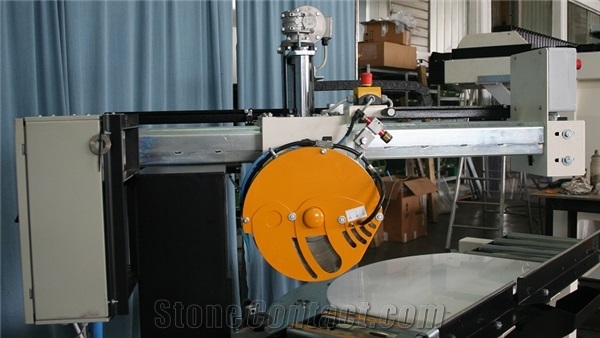

ARS Circular cross cut revolving saw for angle cutting
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage:
Granite, Marble, Artificial Stone, Basalt
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 31,1949
Main Product:
Floor Grinder, Compact Bridge Saw With Turning Head, Mitre Saw Machines, Compact Bridge Saw With Mobile Bridge, Tile Cutting Machines, Bridge Saw With Turning Table For Marble|
Machinery Function Features
Circular cross cut revolving saw for angle cutting, developed and designed to simplify cuts on small pieces. Ideal for creating tiles and design pieces. The machine is equipped with precision goniometer and it's available with manual or motorized feed.
ADVANTAGES
Revolving cross-cutting machine ARS for anglle cutting:
Available with manual or motorized head feed;
Maximum cutting precision guaranteed by a special beam design;
Head assembly swivelling: +45°, 0°, -45°.
Technical Data
Parameters |
Unit |
ARS |
ARS HT |
Standard voltage/frequency |
V/Hz |
400V-50/60Hz /230V-60Hz 3ph. |
400V-50/60Hz /230V-60Hz 3ph. |
Discs diameter |
mm |
250-300-350 |
400-450-500 |
Forwarding/Spindle motor power |
kw |
5kW = 7HP (3ph.) |
5.5kW = 7.5HP (3ph.) |
Cutting depth with ø350mm blade |
mm |
600 |
600 |
Disc flange |
mm |
25.4 |
25.4 |
Motor rotation speed |
rpm |
2800 rpm a 50Hz – 3400 rpm a 60Hz |
1400 rpm a 50Hz – 1700 rpm a 60Hz |
