GIANT Semi-automatic Cutting Machine

Name: GIANT Semi-automatic Cutting Machine
Brand: Ferrari & Cigarini SRL
SKU: 3662
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Basalt, Quartzite

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Ferrari & Cigarini SRL

CompactLine

Italy

Main Product:

Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|

Contact supplier

Start Order

You may also like

SQC450/600/700-4D Bridge Cutting Machine

Infrared Fully Automatic Bridge Type Edge Cutting Machine

3-Axis (Rock Board) Bridge Cutting Machine

ZDSC-400 BRIDGE AUTOMATIC CUTTING MACHINE(MARBLE)

SQC-600-4D 4 Post Guide Bridge Cutting Machine

Product Detail
Company Profile

Overview

Machinery Function Features

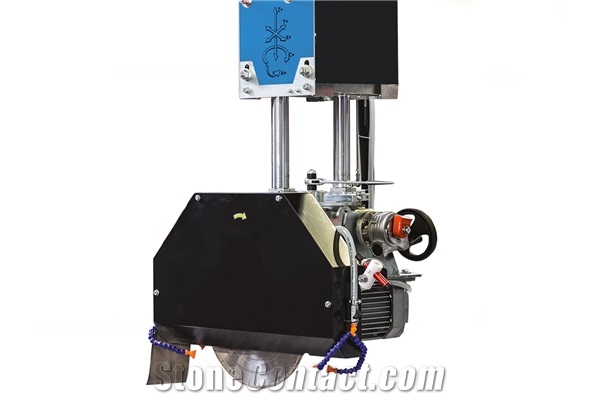

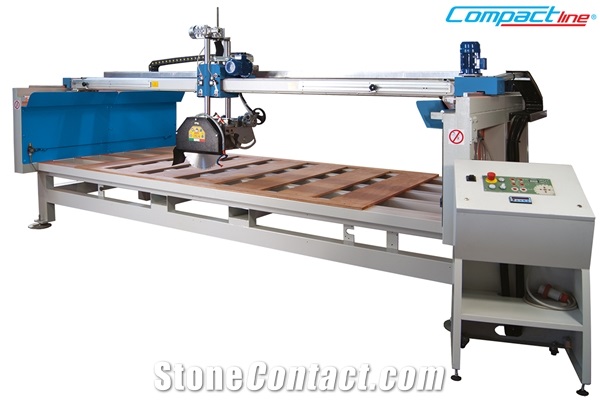

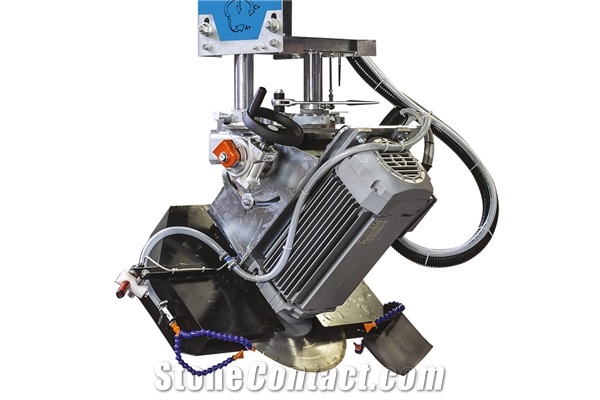

Semi-automatic machine to cut both length ways (X axis) and cross ways (Y axis). The cutting head is driven by means of an electronic program card and the cutting head speed is driven by inverter. Turning and inclination of the head is manual, from 0 to 90 degree by means of a handwheel. The machine is equipped with marine ply wooden cutting bench, step cutting facility, control panel with push buttons to drive the cutting head movement and display visualizing the cutting speed.

Technical Data

Parameters	Unit	GIANT
Approximate weight without table	Kg	1500
Y axis Stroke	mm	1650
Machine length	mm	4950
Machine width	mm	2380
X Axis Stroke	mm	3500
Max. thickness cutting capacity	mm	150
Main motor power	kw	5.5
Voltage	V	400
Machine height	mm	2200
Blade diameter	mm	450 - 40
Motor Speed	rpm	1400
Max. cutting width	mm	3500
Z Axis Stroke	mm	140
