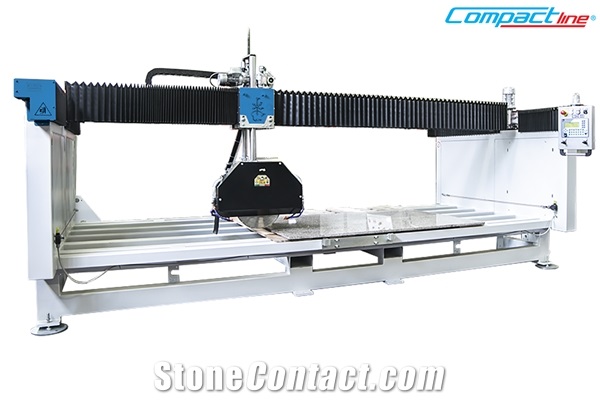

GIANT A - Automatic Slab Cutting Machine

Name: GIANT A - Automatic Slab Cutting Machine
Brand: Ferrari & Cigarini SRL
SKU: 3663
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Ferrari & Cigarini SRL

CompactLine

Italy

Main Product:

Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|

Contact supplier

Start Order

You may also like

ZDCM-400 MONOBLOCK BRIDGE CUTTING MACHINE

Curbstone Stone Cutting Machine Line DFLSX1200-13S

Bottom Granite Slab Shaving Machine DFQ-B500

Middle Block Infrared Bridge Cutting Machine

HLQC-600/800 Infrared Plc System Stone Bridge Cutting Machine

Product Detail
Company Profile

Overview

Machinery Function Features

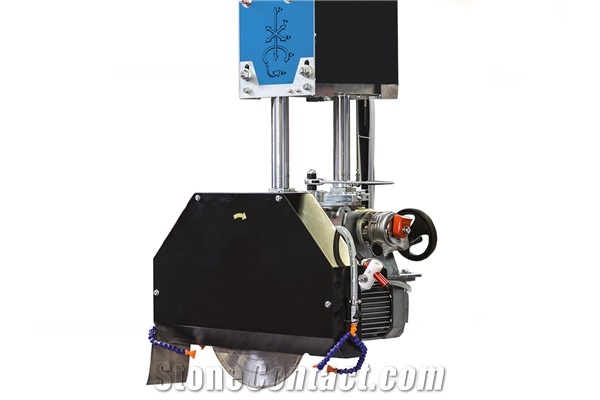

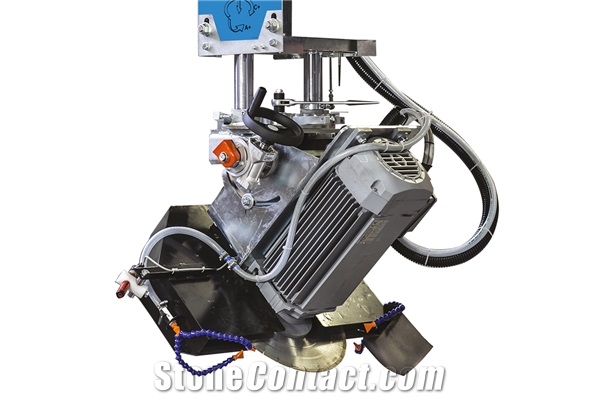

Automatic machine to cut both length ways (X axis) and cross ways (Y axis). The cutting head is driven by means of the PLC integrated in the hanging panel on board the machine and the cutting head speed is driven by inverter. Turning and inclination of the head is manual, from 0 to 90 degree by means of a handwheel. The machine is equipped with marine ply wooden bench with integrated lifting rollers for multidirectional slabs positioning.

Technical Data

Parameters	Unit	GIANT A
Blade diameter	mm	450 - 40
Voltage	V	400
X Axis Stroke	mm	3500
Machine length	mm	4950
Motor Speed	rpm	1400
Approximate weight without table	Kg	2100
Machine height	mm	2200
Main motor power	kw	8
Y axis Stroke	mm	1650
Max. thickness cutting capacity	mm	150
Max. cutting width	mm	3500
Machine width	mm	2380
Z Axis Stroke	mm	140
