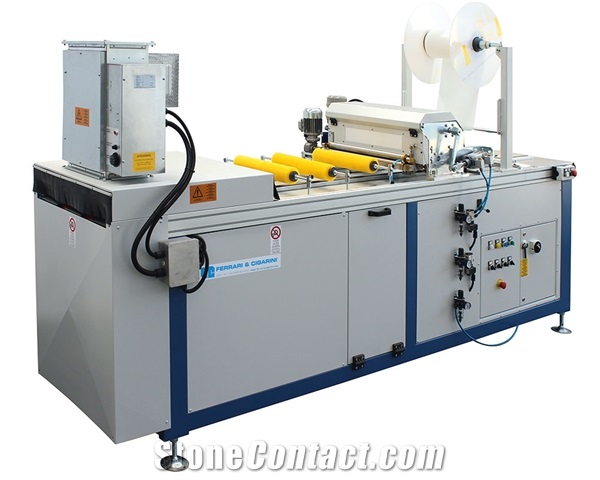

MIR 001/M - SEMI-AUTOMATIC GLUING MOSAIC TILES MACHINE IN LINE IN SINGLE AND DOUBLE REEL

Name: MIR 001/M - SEMI-AUTOMATIC GLUING MOSAIC TILES MACHINE IN LINE IN SINGLE AND DOUBLE REEL
Brand: Ferrari & Cigarini SRL
SKU: 3740
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesMosaic Assembling Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Remote troubleshooting

Supplier

Ferrari & Cigarini SRL

Stone&Co

Italy

Main Product:

Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|

Contact supplier

Start Order

You may also like

PGL-300 Mosaic Special-Shaped Assembling Machine

MIR 001/R - SEMI-AUTOMATIC GLUING MACHINE WITH RETURN IN SINGLE AND DOUBLE REEL

Iungo 3565 I - 6565 I Our Semi-Automatic Mosaic Gluing Machines

Product Detail
Company Profile

Overview

Machinery Function Features

Machines for the automatic gluing of tiles, marbles and stones of any type onto paper mesh or glass fibre support. The gluing operation is carried out in automatic mode when the operator has completed the pieces composition onto suitable trays or templates provided on the conveyor of the gluing machine. MIR gluing machines are produced in 6 models based on the requested production.

Technical Data

Parameters	Unit	MIR 001/M
Approx. Weight	Kg	450
Installed power	kw	14
Maximum composition size LxW	mm	450x650
Machine overall width	mm	750
Maximum support panel size LxW	mm	460x650
Machine overall height	mm	1900
Air Consumption	NL/min	10
Panel output per minute		6/12 piece
Compressed air: operating pressure	bar	6
Machine overall length	mm	3200
