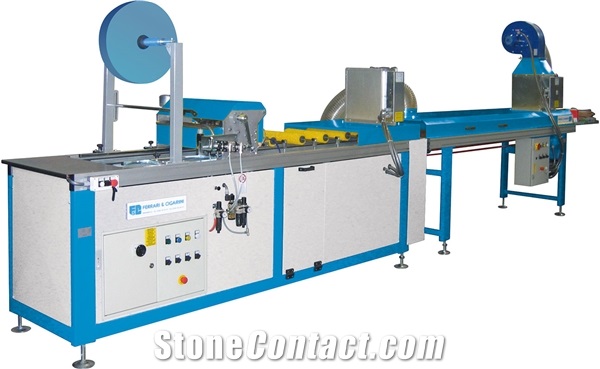

MIR 001/L-5 - Semi-automatic gluing of tiles, mosaic marbles and stones

Name: MIR 001/L-5 - Semi-automatic gluing of tiles, mosaic marbles and stones
Brand: Ferrari & Cigarini SRL
SKU: 3750
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesMosaic Assembling Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Ferrari & Cigarini SRL

StarLine

Italy

Main Product:

Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|

Contact supplier

Start Order

You may also like

Mosaic Cutting And Assembling Machine

Pragma - Automatic Composition Machine Rotocompono 304

MIR 001/C- Semi-Automatic Mosaic Mesh Fiber Net Gluing Machine-Mosaic Assembling Machine

Product Detail
Company Profile

Overview

Machinery Function Features

Machines for the automatic gluing of tiles, marbles and stones of any type onto paper mesh or glass fibre support. The gluing operation is carried out in automatic mode when the operator has completed the pieces composition onto suitable trays or templates provided on the conveyor of the gluing machine. MIR gluing machines are produced in 6 models based on the requested production.

Technical Data

Parameters	Unit	MIR 001/L	MIR 001/L-5	MIR 001/L10
Machine overall length	mm	6200	8200	13800
Installed power	kw	19	19	28
Approx. Weight	Kg	700	700	950
Machine overall height	mm	1900	1900	1950
Air Consumption	NL/min	10	10	10
Maximum composition size LxW	mm	450x650	450x650	450x650
Compressed air: operating pressure	bar	6	6	6
Maximum support panel size LxW	mm	460x650	460x650	460x650
Panel output per minute	piece/min	6/12	6/12	6
Machine overall width	mm	750	750	1030
