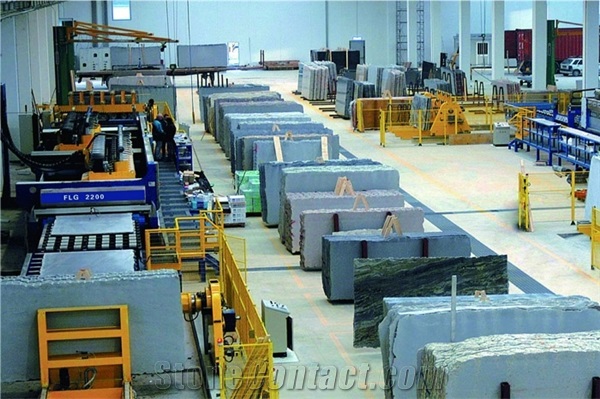

Automatic Granite Polishing Machine FLG2200

Name: Automatic Granite Polishing Machine FLG2200
Brand: Fujian Frugoli Machinery Development Co.,Ltd.
SKU: 3769
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine

Usage: Granite, Marble, Limestone, Sandstone, Travertine

After-Sale

Warranty:12 Months

Supplier

Fujian Frugoli Machinery Development Co.,Ltd.

Frugoli

China

Main Product:

Diamond Gang Saw For Marble Series, Automatic Polishing Line Series, Automatic Level Ovens Resin Line Etc.|

Contact supplier

Start Order

You may also like

Automatic Line Granite Disc Type Polishing Machine - Slab Polishing Line Machine

TJJF-16M-1250 Marble Slabs Polishing Machine(1250)

Automatic Slab Polishing Line Machine

Marble Granite Stone Slab Line Polishing Machine

Line Polishing Machine For Kerbstone

Product Detail
Company Profile

Overview

Machinery Function Features

PLATES: THE HUB OF THE POLISHING PROCESS The plates play an essential role in determining the quality of the polishing result and the finishing of the slab. Effe Meccanica has carefully designed and manufactured and manufactured this component to guarantee high-quality results with abrasive tools that are easy to maintain and install. RELIABLE PLATES REQUIRING VERY LITTLE SERVICING The section-holding plate with swinging arms of the FLG polisher is the fruit of a long experience and indepth studies ,developed with the latest advanced design systems. The plate stands out for its very simple construction , which guarantees an excellent productive output and the lowest maintenance. lts reliability is guaranteed by the tests which are conducted on every plate, once assembled , to check they meet the quality standards .

Technical Data

Parameters	Unit	FLG2200 1TRAVE - 1 BEAM 16T	FLG2200 1TRAVE - 1 BEAM 18T	FLG2200 TRAVE - 2 BEAM 18T	FLG2200 TRAVE - 2 BEAM 20T	FLG2200 TRAVE - 2 BEAM 22T	FLG2200 TRAVE - 2 BEAM 24T
Machine overall length	mm	12600	13800	15800	17000	18200	19400
Machine overall width	mm	3700	3700	3700	3700	3700	3700
Polishing plates diameter	mm	550-580	550-580	550-580	550-580	550-580	550-580
Conveyor system forward speed	m/min	0.3-3	0.3-3	0.3-3	0.3-3	0.3-3	0.3-3
Slabs min. processable thickness	mm	10	10	10	10	10	10
Slabs max. processable thickness	mm	100	100	100	100	100	100
Spindle power for polishing head	kw	1*1.5	1*1.5	1*1.5	1*1.5	1*1.5	1*1.5
Belt advancement motor power	kw	1.5	1.5	1.5	1.5	1.5	1.5
Polishing heads/honing units motor power	kw	11	11	11	11	11	11
Total installed electrical power	kw	260	290	297	327	357	387
Number of polishing heads/honing units	nr	16	18	18	20	22	24
Bridge travel power	kw	7.5*2	7.5*2	5.5*4	5.5*4	5.5*4	5.5*4
Cooling water requirement	L/min	420	460	460	500	540	580
Slabs max. processable width	mm	2200	2200	2200	2200	2200	2200
Machine overall height	mm	2842	2842	2842	2842	2842	2842
No. of motors for each beam	nr	2	2	2	2	2	2
No. of beams	nr	1	1	2	2	2	2
