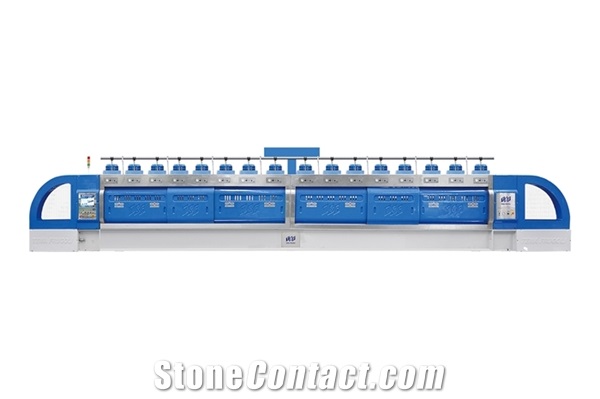

Automatic Polishing Machine FLM2200
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage:
Granite, Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:12 Months
Machinery Function Features
FLM is synonym with high output , high quality polishing , endurance and low consumption.
The construction,which is exceptionally strong and compact,provides perfect rigidity to the beams and to the entire driving system,for perfect side sliding and a very fast traversing speed.
Because of the in depth design and construction of all the components fo the head and the abrasive-holding plate,the tool evenly and regularly touches the material.
The FLM range of polishers , all noiseless and ergonomic, offers the greatest level of safety throughout the polishing process and during servicing.
All polishing, control and operating setting are set up and controlled by the user through an easy, user-friendly system and an operating setting management program while remaining simple and flexible.
The FIM range is available in a wide range of models with up to 24 polishing heads.
This big machine is more suitable for the artificail stone and big producetion marble cutting.
Technical Data
Parameters |
Unit |
FLM2200 1TRAVE - 1 BEAM 16T |
FLM2200 1TRAVE - 1 BEAM 18T |

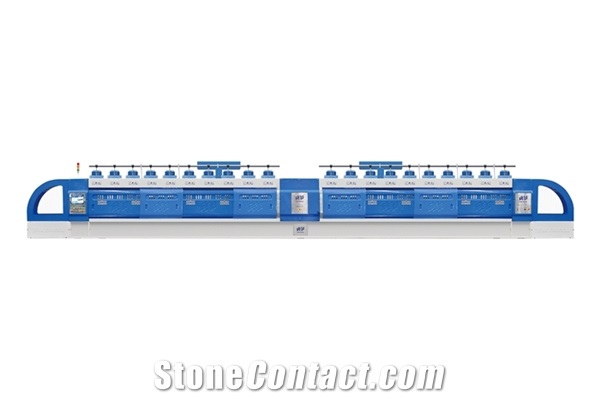

FLM2200 TRAVE - 2 BEAM 18T |
FLM2200 TRAVE - 2 BEAM 20T |
FLM2200 TRAVE - 2 BEAM 22T |
FLM2200 TRAVE - 2 BEAM 24T |
No. of beams |
nr |
1 |
1 |
2 |
2 |
2 |
2 |
No. of motors for each beam |
nr |
2 |
2 |
2 |
2 |
2 |
2 |
Polishing plates diameter |
mm |
550-580 |
550-580 |
550-580 |
550-580 |
550-580 |
550-580 |
Conveyor system forward speed |
m/min |
0.3-3 |
0.3-3 |
0.3-3 |
0.3-3 |
0.3-3 |
0.3-3 |
Machine overall length |
mm |
12600 |
13800 |
15800 |
17000 |
18200 |
19400 |
Number of polishing heads/honing units |
nr |
16 |
18 |
18 |
20 |
22 |
24 |
Slabs min. processable thickness |
mm |
10 |
10 |
10 |
10 |
10 |
10 |
Total installed electrical power |
kw |
260 |
290 |
297 |
327 |
357 |
387 |
Machine overall height |
mm |
2842 |
2842 |
2842 |
2842 |
2842 |
2842 |
Bridge travel power |
kw |
7.5*2 |
7.5*2 |
5.5*4 |
5.5*4 |
5.5*4 |
5.5*4 |
Machine overall width |
mm |
3700 |
3700 |
3700 |
3700 |
3700 |
3700 |
Cooling water requirement |
L/min |
420 |
460 |
460 |
500 |
540 |
580 |
Polishing heads/honing units motor power |
kw |
11 |
11 |
11 |
11 |
11 |
11 |
Belt advancement motor power |
kw |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Spindle power for polishing head |
kw |
1*1.5 |
1*1.5 |
1*1.5 |
1*1.5 |
1*1.5 |
1*1.5 |
Slabs max. processable width |
mm |
2200 |
2200 |
2200 |
2200 |
2200 |
2200 |
Slabs max. processable thickness |
mm |
100 |
100 |
100 |
100 |
100 |
100 |
