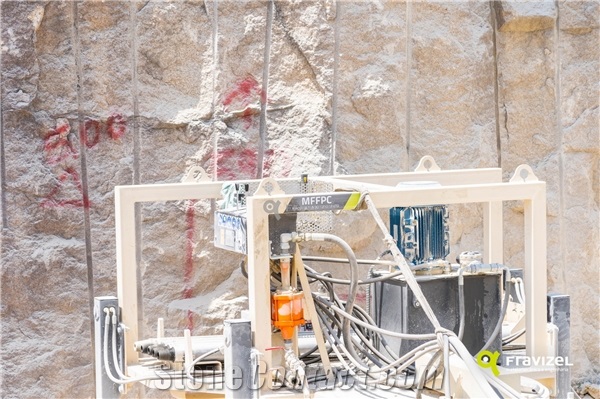

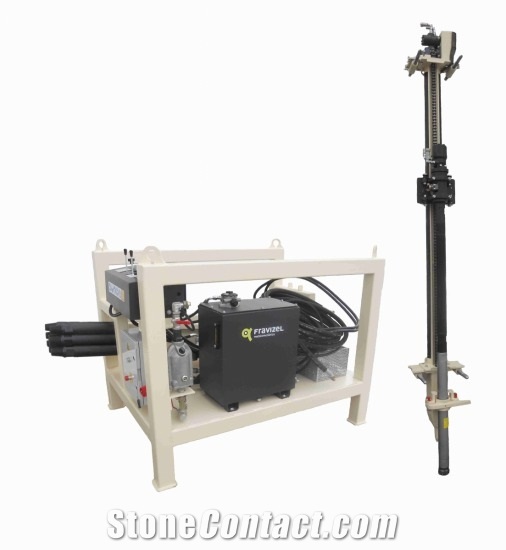

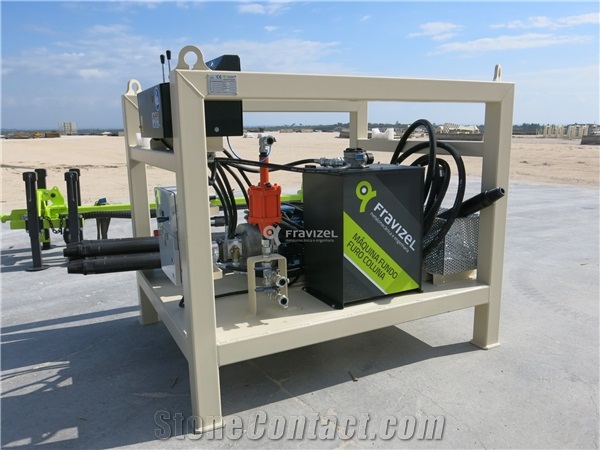

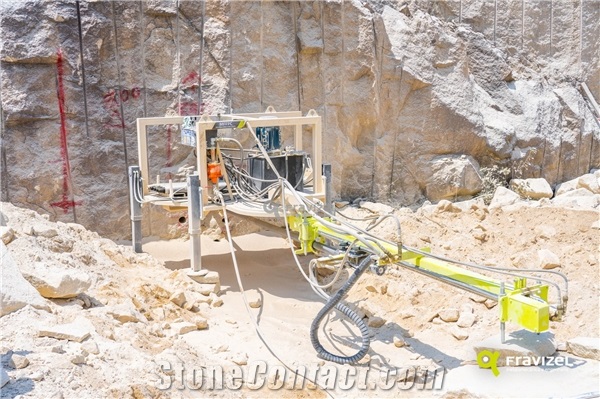

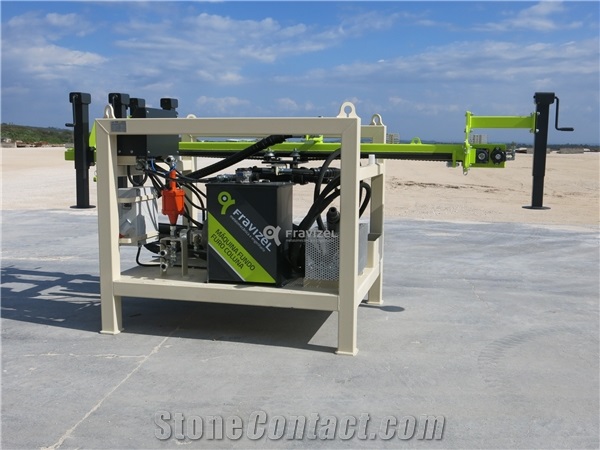

Column Down the Hole (DTH) Drilling Machine - NADIR
FOB Price:
Type:
Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 31,1997
Main Product:
Drilling Machines, Quarry Machines, Loader, Splitting Machinery|
Machinery Function Features
Ref.: 48
Column Down the Hole Machine suited to the triangulation process for passing the diamond wire. Allows vertical, horizontal and inclined drilling. Drilling travel of 2000 mm. All components are easy to handle. Quick start-up. Separate rod and central platform.
Technical Data
Parameters |
Unit |
NADIR MFFC-60/70/90 |
Overall Length |
mm |
350 |
Overall Height |
mm |
1200 |
Drill Rod Diameter |
mm |
60/70/90 |
Air Consumption |
m3/min |
1,7-2,8 (7 bar) |
Column Dimensions |
mm |
3650x350x605 LxWxH |
Total Weight |
Kg |
800 |
Rotary Head Speed |
r/min |
20-90 |
Column weight |
Kg |
150 |
Electrical |
V |
380/400V |
Overall Width |
mm |
1300 |
Power |
kW |
9 |
