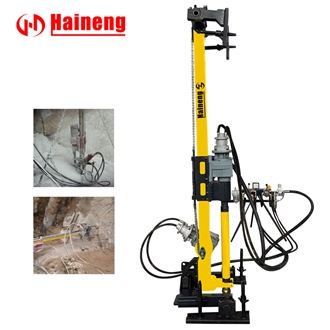

Add To CompareType: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
FOB Price:$5500-13500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Multifunctional Rock driller is mainly used in quarrying, available for horizontal, vertical, and slantwise drilling . And used for dividing large blocks into smaller ones.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-

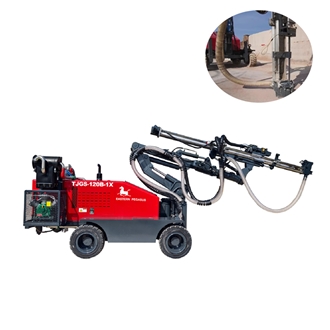

Add To CompareType: Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
FOB Price:$54500-56000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TJGS-120B-1X Hydraulic Drill Rig is mainly used for drilling holes on rocks in stone quarries.
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
FOB Price:$4100-4500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
It is driven by compressed air, available for horizontal, vertical and slantwise drilling holes for the passage of diamond wire. The machine is to assist diamond wire saw machine working in stone quarries.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Drilling MachineElectric Horizontal Drill Machine
FOB Price:$5699-5799
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
1.The machine is used for drilling horizontal hole for passing through the diamond wire saw during stone quarrying.
2. It has the following features: high drilling efficiency, long life, easy hole-joining,high precision, etc.
3.The working motor and the inverter are used for automatic power feeding device. The real-time main motor current and the walking motor rotation speed are displayed on the control platform.
4. The power control cable between the main machine and control platform is connected by the aviation plugs.
5. The opearting and installing of the machine are convenient.
6. The control mode adopts electrical automatic control principle to maximize the drilling speed and achieve the energy saving and emission reduction effect.
7. It reduce the intensity of labor.
Zhongyuan
10YR
China
Fujian Xiapu Zhongyuan Machinery Co., Ltd.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
FOB Price:$4999-5999
Warranty: 12 Months
Usage: Granite, Marble, Basalt, Sandstone, Travertine
Machinery Function Features:
1.The DTH drilling machine is used for drilling large diameter horizontal,vertical and slant holes during stone quarrying.
2.It is necessary assistive equipment to wire saw machine during stone quarrying.
3.The machine is controlled by compressed air motors.
4.The pneumatic units are high quality standard.
5.The machine has the following features: low compressed-air consumption,high drilling efficiency,light in weight,easy operating and installing,etc.
6.The particular screwing and discharging mechanism of the tube devices reduces the intensity of labor.
7.The machine has particular design for guiding drilling.
Zhongyuan
10YR
China
Fujian Xiapu Zhongyuan Machinery Co., Ltd.
Contact Supplier
-
Add To CompareType: Stone Quarry MachinesQuarry Drilling MachineHorizontal Pneumatic Mobile Rock Drill
$5200-5800
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
Drilling depth：200m
Maximum opening diameter：400mm
Final hole diameter:75mm
Drill pipe diameter:50mm
Drilling angle:90~75°
Structural weight:760kg
Size:2.75x0.95x1.60m
Speed of mainshaft:71、142、310、620r/min Auxiliary power diesel engine:22HP
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
$5700-6200
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The DTH drilling machine is used for driling large diameter horizontal,vertical and slant holes during stone quarrying. It is necessary assistive equipment to wire saw machine during stone quarrying. The machine is controlled by compressed air motors. And the pneumatic Units are high quality standard. The machine, has the following. features: low compressed-air consumption, high drilling efficiency. light in weight, easy operating and installing etc. The particular screwing and discharging mechanism of the tube devices reduces the intensity of labor.And the machine has particular design for guiding drilling.
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
$3800-4200
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
It is driven by compressed air, available for horizontal, vertical and slantwise drilling holes for the passage of diamond wire. The machine is to assist diamond wire saw machine working in stone quarries.
Faithful Machinery
China
Quanzhou Faithful Machinery Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
$5700-6200
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone
Machinery Function Features:
The DTH drilling machine is used for driling large diameter horizontal,vertical and slant holes during stone quarrying. It is necessary assistive equipment to wire saw machine during stone quarrying. The machine is controlled by compressed air motors. And the pneumatic Units are high quality standard. The machine, has the following. features: low compressed-air consumption, high drilling efficiency. light in weight, easy operating and installing etc. The particular screwing and discharging mechanism of the tube devices reduces the intensity of labor.And the machine has particular design for guiding drilling.
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
$5200-6000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone
Machinery Function Features:
MACHINE CAN DRILL HOLES RANGING FROM 3" TO 7" IN DIAMETER UPTO A DEPTH OF 25 METERS HORIZONTALLY AND VERTICALLY.
MACHINE COMES WITH AUTO DRILLING CONTROL PANEL, DTH HAMMER, 4.5" BUTTON BIT AND 12 DRILL RODS(4FEET).
SOMANI AND COMPANY
India
SOMANI INDUSTRIES
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineElectric Horizontal Drill Machine
$5800-7500
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
It is used for drilling horizontal rope holes in marble, granite and other stone mines. It has the characteristics of high drilling efficiency, long service life, convenient hole alignment, small error and so on. The propulsion mechanism of the machine adopts frequency converter to drive the motor to feed automatically, and the console displays the host current and walking feed speed in real time. The power control line between the host and the control box is connected by aviation plug, which makes the operation more convenient. In the control mode, the principle of electrical automatic control is adopted, so that the drilling speed can reach the highest value, achieve the effect of energy conservation and emission reduction, and reduce the labor intensity of the operator
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineElectric Horizontal Drill Machine
$5500-7200
Warranty: 12 Months
Usage: Granite, Marble
Machinery Function Features:
Diameter of Drilling Hole(mm): 75
Max.Depth of Drill Hole(m): 30
Speed of Drilling(M/H): 3-5
Min.Water-supply Pressure(Mpa): 0.1
Single Feeding Distance(M): 1.5
Power Feeding Device: speed reducer
Drilling Direction: Horizontal
Net Weight(KG): 700
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineElectric Horizontal Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Sandstone
Machinery Function Features:
The mechanical design is reasonable, convenient, easy to hoist, and can be operated in a small space.
The equipment is easy to assemble, easy to operate, and save time.
The machine is convenient for hoisting,which is especially suitable for fast positioning and drilling in narrow space corners.
Pneumatic and hydraulic dual power makes the equipment ultra-high efficiency and stable operation, making drilling operations safe, efficient and stable.
Reasonable layout of equipment accessories makes equipment maintenance simple and low-cost.
The equipment has strong adaptability and can meet the different drilling needs of customers.
24-hour professional technical guidance and consultation make use without worries.
Skystone
6YR
China
FUJIAN SKYSTONE TECHNOLOGY CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
$285800-305000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
KL510 Hydraulic Drilling Rig is equipped with the standard 45/38 mm diameter drill rod that can drill 64-115 mm vertical, inclined and horizontal boreholes. It is widely used in cutting excavation, pipeline laying, basic engineering and drilling in open-pit mines.
KL510 is equipped with a European hydraulic hammer drill (24kW). With its strong swing torque and impact power, it matches sufficient perforation capacity and advanced control system, making it fully capable of performing under complex rock conditions.
The drilling truck adopts the high-efficiency Kaishan brand screw air compressor, which is environmentally friendly and energy-saving and has full independent intellectual property rights.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Hand-Held Rock Drill Machine
$160-175
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Pneumatic Air Leg Hand Held Jack Hammer Rock Drill for Mining
Products features:
The rock drill is mainly used in small quarries. Mines for constructing in mountain areas, water conservancy works in capital construction, also for secondary blasting in large mines and other projects.
Air-Leg Rock Drill
1. Fit for wet drilling in medium-hard or hard rock.
2. Grouped control mechanism, quick to start up, with "air on, water on, air off, water off" mechanism, convenient to handle, and easy to maintain and repair
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
$19900-21000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
This machine is used for drill holes on the block and divide the blocks.
EASTERN PEGASUS
7YR
China
XIAMEN EASTERN PEGASUS CO., LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Hand-Held Rock Drill Machine
$350-480
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
YN27C Hand-Held Internal-combustion Rock Drill Machine, top-quality and cost-effective!
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Hand-Held Rock Drill Machine
$350-500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The YN27A Hand-Held Internal-combustion Rock Drill Machine is easy to carry and suitable for high mountains and areas without power supply and wind pressure equipment. It is especially suitable for temporary projects with high liquidity.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
$6180-6490
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Hydraulic DTH165-H Driller is suitable for fast drilling of stone in quarry:
● Multiple fastening points for easy relocation of the machine, especially suitable for fast drilling works in narrow spaces.
● Optimized double-hinge or universal ball joint between the headpiece and main frame make it possible for drilling vertical, horizontal or inclined holes.
● Unique slide guide and propulsion designs ensure fast feed and the straightness of drilled holes.
● Choice of power source to meet special working conditions in different quarry: pneumatic, pneumaticelectric or pneumatic-hydraulic.
● Hammers and drill bits of various specifications are available to meet the requirements for drilling stone of different hardness.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
PRD Blast Hole Rig ( Overburden Blast Hole Drilling for Open Cast Mines )
Drilling Method : DTH or Rotary - Multi Pass
Salient Feature :
Advanced Hydraulic System
Hydraulic Auxilary Winch
Easy & Economic Maintenance
Centralised Control Panel for Drilling & Track control.
Camera for Front & Rear View
Air Conditioned Driller Cabin
Water Injection / Sprinkling wet type.
PRD
India
PRD Rigs India Private Limited
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone
Machinery Function Features:
Description:
TECHNICAL SPECIFICATIONS
Model DHT
Rotation speed ---
Tool diameter ---
Drilling speed ---
Drilling depth ---
Weight of the machine from 19 up to 30 kg
Korfmann Cut Machinery
Italy
Korfmann Cut Machinery s.r.l
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
$9400-11000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS Ünite Motoru / Engine Unit 7.5 KW, 10 Hp, 1500 dev/dak Elektrikli / (Rpm) with Elektricity Sağ Sol Dönüş Motoru / Right-Left Rotation Engine Hidrolik Motor / Hydraulic Engine Aşağı Yukarı Hareket Motoru / Forward-Backward Movement Engine Hidrolik Motor / Hydraulic Engine Delme Boyu / Drilling Length Sapmadan 15 m/30 m Delme Kapasitesi / 15 m/30 m Drilling Capacity with No Deviation Delme Hızı / Drilling Length 1metre / 3-5 dak. - 1 m. / 3-5 min. Delme Çapı / Drilling Diameter 90 mm Hava Tüketimi / Air Consumption 2.1 m3 / dak (6 Bar Basınçta) - 2.1 m3 / min. (6 Bar pressure) Tij Boyu / Tij Lenght 100 cm 10 Adet - 100 cm / 10 Piece Matkap Ucu / Drilling Bit Hava Tabancası Bit ile Birlikte 1 Adet / Air Gun with Bit 1 Piece Çalışma Tipi / Operation type Sağa Sola Hareket Hidrolik Kontrollü/ Right and Left Movements are Hydraulic Control Aşağı Yukarı Hareket Hidrolik Kontrollü/Up and Down Controls are Hydraulic Control Verilen Aksesuarlar / Accessories 2 Ad. Anahtar, 3 Ad. Gergi Zinciri ve Aparatları, 1 Ad. Yağdanlık, 10 Ad. Boru, 1 Ad. Hava Tab. Boru Sehpası, 4 Ad. 10’ar Metre Hidrolik Hortumları,1 Ad. 10 Metre Hava Hortumu 2 Piece Wrench, 3 Piece Tension Chains and Accecories, 1 Piece Lubricator, 10 Piece Bits, 1 Piece Air Gun Bit Stand, 4 Piece Hydraulic Hoses 10 m, 1 Piece 10 Meter Air Hose Makinanın Net Ağırlığı / Weight 115 kg. Makine Ekipmanları ile Birlikte Ağırlığı Machine Weight With Equipments 450 kg. / Total 450 kg.
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
$1-1
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Drilling Using Dual Motors - Walking.
Fast and Powerful Drilling.
Night Work Lamps.
Hydraulic Jaw System,
Keyless Pipe Removal and Installation.
Easy Installation Works 3-4 Times Faster Compared to DRILLING.
One Person Usage Ability.
Installation in the shortest possible time with the Tower Rotation System and Disassembly Jaws.
Double Engine (Diesel - Electric).
Electric MOTOR ↔ 22 kw 30 hp
DIESEL ENGINE ↔ 55 kw 80 hp AIR COOLED 4 CYLINDER DEUTZ
Gun ↔ Right-Left Rotation: Hydromotor - Transmission Reinforced
Gun ↔ Forward and Reverse Movement: Hydromotor - Transmission Reinforced
Machine Forward - Reverse Movement 3WD Italian Travel System
Drilling Speed ↔ 2 m / 6-10 Minutes (at 6-10 Bar)
Drilling Diameter ↔ Between 85 mm - 100 mm
Air Consumption ↔ 2.1 m³-4.5 m³ (at 6-10 Bar)
Working Angle ↔ Horizontal - Vertical - Parallel - Oblique Angles
Usage:Balancing - Boom Sliding - Sliding - Sled Upright Pistons -
Total Weight ↔ 4.900 Kg
Height ↔ 6 Mt.
Width ↔ 2.10 Mt
Height ↔ 2 Mt.
Supplied Accessory ↔ 2 mt 14+1 Pcs. Pipe / PERVOL GUN
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS
Motor Tipi / Engine Type Elektrik - Dizel (Çift Motorlu) / Elektricity - Diesel (Double Engines)
Dizel Motor / Diesel Engine 4 Silindirli Hava Soğutmalı (4 Cylinder Air Cooled) 55 kw 80 hp DEUTZ
Elektrik Motor / Electricity Engine 22 kw 30 hp
İleri ve Geri / Forward and Back Hidromotor - Şanzıman Takviyesi / Hydromotor - Transmission Boost
Tabanca Sol Sağ Dönüş /
Bit Left and Righy rotate Hidromotor - Şanzıman Takviyeli / Hydromotor - Transmission Boost
Makine İleri Geri /
Machine Forward - Back İtalyan 6 TON Paletli Yürüyüş / 6 Tons Crawler
Delme Hızı / Drilling Speed 2 m / 6 -10 Dk. (6-10 Bar)
Delme Çapı / Drilling Diameter 85 mm - 100 mm Arasında / Between
Hava Tüketimi / Air Consumption 2,1 m³ - 4,5 m³ (6-10 Bar)
Kule Açısı / Tower Angle Yatay - Dikey - Paralel - Açılı
Vertical - Horizantal - Parallel - Angled
Toplam Ağırlık / Weight 5.900 Kg
Ölçüler / Dimensions 6 m x 2,1 m x 2 m
Aksesuar / Accessories 2 m 14 +1 Ad. Boru / Seri Tabanca - 2m 14+1 Piece / 3 Size Drilling Bits
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Basalt
Machinery Function Features:
Single Pass: 7.1mtrs.
Features:
Air Conditioning Operator’s Cabin
Dust Collector system
Heavy Duty Undercarriage
Controls are Grouped for convenient Operation
SP-200 are widely used in open cast mines such as Coal,Iron Ore, Limestone,Copper, Phosphate, Bauxite etc…for drilling & Blasting purposes
Jupiter Rock Drills
India
Jupiter Rock Drills Pvt Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
$6900-7600
Warranty: 12 Months
Usage: Granite, Limestone, Artificial Stone
Machinery Function Features:
Description:
LIEYANKEJI Machinery adopting a mechanical fuel injection engine that meets the national emission standards, it has strong power, energy conservation, environmental protection, high reliability, and excellent performance. Key hydraulic components adopt the latest technological achievements, with low energy consumption and fast response.
Product Introduction:
PL1000L Rock Drilling and Splitting Machine is mounted on (24T-36T) excavators for use in a variety of hard rock square mining projects, to solve the hard rock efficient and environmentally friendly mining program. Make full use of its power and super mobility, can be applied to a variety of outdoor complex working conditions, unique L-type triangular swing articulation structure, stable and durable structure, can be adapted to various angles of construction, easy to disassemble and easy to transport, back mounted circuit and hydraulic system for easy maintenance and other features. The equipment is operated by a multi-channel and highly reliable wireless remote control. Utilizing the 22KW hydraulic rock drill, the rock drilling is carried out first, and then the P240 two-stage pressurized super splitter is used to enter the hole to split, so as to achieve the effect of high-efficiency rock static blasting.
Its high-efficiency hydraulic rock drill fully embodies the high economic drilling costs, hydraulic drive air compressor using excavator hydraulic drive, than the traditional (diesel-driven independent air compressor) more stable, lower maintenance costs, better economy. Splitting blocks are made of imported alloy forging material through advanced heat treatment process to make them more durable.
Rock drilling and splitting machine efficiency
Drilling approx. 2 minutes, splitting approx. 40 secs.
Side swinging and positioning about 50 seconds minutes.
Output per hole (theoretical)
2.5m (horizontal spacing) x 1.2m (vertical spacing)
x 1m (splitting depth) = 3m³.
Daily output (8 hours)
3m³(per hole) x 137 holes/day = 411m³
Product Parameters
Rock Drill Parameters Power (output) 22kW
Borehole diameter Φ89-127mm Drilling depth 1600mm
Drilling speed 1m/min Operating noise In line with GB 19872-2005
Splitter parameters Splitting depth 1000mm
Splitting force (two-stage pressurization) 12000T Angle of rotation 120°
Air compressor/vacuum cleaner Parameters: Exhaust volume 4.5m³/min
Exhaust pressure 5-8bar Number of cartridges 5P
Push Beam/Side Swing Parameters Maximum thrust of rock drilling 40KN
Maximum pull-out force for splitting 80KN Remote Control Parameters
Side Swing Velocity 1rpm Number of digital points 30
Range of validity 50m Anti-interference capability >50dB
Number of analog channels 14 Total weight 4T
Machine Parameters: Total width 1500mm
Overall length 4140mm Excavator requirements 24-36T
Overall height 1570mm
LIEYANKEJI
China
Hunan Lieyan Technology Co., Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite
Machinery Function Features:
Characteristics
1. The Rugged track was driven by hydraulic motor with high traveling ability.
2. The feed and rotary head were driven by hydraulic motor, therefore, the air and oil consumption and total drilling cost are lower.
3. The hydraulic feed and rotary head put out the biggest feeding force and largest rotary torque, which makes it more suitable for operation in complex worksites.
4. The compressor equipped for the rig is smaller and cheaper than that one the air rig equipped, along with the best price-performance ratio than air rig.
5. The Hydraulic track oscillation makes it more suitable to drill in any rough terrain.
6. The carriage with rollers provides for minimal wear to the drill guide.
7. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide tilt and guide dump.
8. The diesel engine and main hydraulic parts adopt imported products or famous domestic brand.
9. The special compensation device makes a full protection of drill rod threads.
CM358A hydraulic crawler down-hole drill rig is a multi-functional Rock blsting drilling rig driven by internal combustion engine, the hydraulic rock drilling rig power was provided by hydraulic system except for impacting and the hole cleaning wind. CM358A crawler drilling rig is convenient and efficient to operate. This mobile drilling rig is the best replacement for traditional pneumatic drills in most operation. The DTH Drilling rig is compact in structure, simple in operation, light in total weight. CM358A hydraulic crawler DTH drilling rig is widely used for blast-hole drilling in the mines and quarries.The wagon drill is also used for anchor in road, railway, power station, civil engineering and building etc.
JCDRILL
China
Beijing Jincheng Mining Technology Co.,Ltd - JCDRILL
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
€15000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
MAGNUS 90 Drill
The Drilling Machine has the function of drilling into any stone to pass the diamond wire. It is an autonomous machine. It is adaptable to various types of soil. Allows vertical, horizontal and inclined drilling.
You can place your order or request a quote through our contacts.
MALTA & MOIZAO
Portugal
MALTA & MOIZAO, LDA
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Marble, Limestone
Machinery Function Features:
2 Rock drills
360 ° rotation
4 wheel drive
Reliable SpeedROC 2F is a productive drill rig for the dimension stone industry. It is highly productive thanks to its long reach and fast positioning. This versatile machine has a flexible drilling capacity and excellent tramming stability.
It is the perfect choice for granite, marble and limestone quarries.
Picoroc
Italy
Picoroc Srl
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Warranty: 12 Months
Usage: Marble, Limestone, Onyx, Sandstone, Travertine
Machinery Function Features:
Electric motor power 22 kW 1500 rpm
Diesel engine power 43 hp
Compressor engine power 37 kW - 45kw (engine options)
Progress Hydromotor (pressure and speed adjustable)
Drilling device Geared hydromotor
Drilling capacity 4-6 min/1.5 m (according to marble hardness)
7-10 min/2 mt (according to marble hardness)
Control unit Hydraulic
Compressor air pressure 10 bar
Air consumption 2.1 m³ and 3.7 m³ options
TIJ size and quantity 156 cm x 20 pieces
Drive system Hydraulic
Width-height 217x567x205 cm
Weight 4800 kg
Dilmer Makina
Turkey
Dilmer Makina
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Hand-Held Rock Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone
Machinery Function Features:
Description：Model Y6 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and
buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.
Y6 use small taper drill rod with taper chisel bit, diameter 17-22 mm, and use plug hole integral steel also
as for stone working, stone trimming, and 2nd splitting blocks.
Prodrill
China
Xiamen Prodrill Equipment Co.,Ltd
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
The tr-ex 1000 is an excavator or backhoe mounted drill attachment built to be dependable, rugged and versatile. The attachment mounts to the excavator (dipper stick) and after installation you can go from drilling to bucket or breaker work in 20 minutes.
Benefits
• Big reach advantage over dedicated hydraulic drill rigs
• Very quick setup times between holes
• Ideal for blast hole, pipeline, pre-shear, rock bolting and drilling with casing
• Incredible geometry for drilling
• Hydraulic drill performance & reliability
• Lower capital cost than a dedicated drill rig
• Excellent mobility
• Operator health and safety
The bottom line
Traxxon Rock Drills has been building drills from the ground up for over 40 years. We manufacture every one of our products using the highest quality components, dedicated skilled technicians and using our decades of experience. We are customer focused and driven. Our goal is simply to help you lower your drilling costs and increase your bottom line, the power to drill more for less.
Drifter
Model:...........Sandvik HL300 (other options available)
Percussion:.......8 kW (10.73 hp)
Weight:.............94 kg (207lbs)
Hole Range:.........35mm - 64mm (1-3/8” – 2.5”)
Hole Depth: .....15m (50’)
Attachment & feed assembly
Feed Beam: ..........High Tensile steel
Drill Guides:.................Adjustable & replaceable bronze
Drill Travel:..................Heavy duty chain & hydraulic drive motor
Steel Length:....................3700mm (12’) maximum length
Hose Control:.............Drifter mounted hanger, travels with drifter
Centralizer:...Hydraulic with replaceable hardened bushings
Feed Swing:...................40° by hydraulic cylinder
Feed Dump: ..................180° Carrier bucket cylinder
Mounting:......................Quick attach bucket mount on boom stick
Storage: .........................Built in stand
Weight:.......................816kg (1,800lbs)
Traxxon
Canada
Traxxon Rock Drills Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHorizontal Pneumatic Mobile Rock Drill
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite
Machinery Function Features:
INGERSOLL RAND DMM2 Y DMMD
INGERSOLL RAND DMH
DRILLTECH
TAMROCK
JUMBOS BAJO PERFIL MINERIA SUBTERRANEA
HYTECH Latin America S.p.A.
Chile
HYTECH Latin America S.p.A.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Quartzite, Travertine
Machinery Function Features:
Drilling rigs for open pit mining
These types of drilling rigs designed for drilling blast holes in quarries and construction works. Ispolschuyut hammer drilling technology of high pressure series COP (44/54/64/64Gold) or QL (40/50/60).
Rock Tools Company, LLC
Russian Federation
Rock Tools Company, LLC
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Sandstone
Machinery Function Features:
DTH drill Model HP-90 PF
Designed as the natural evolution of a range that is committed to excellence, this rig is used in the execution of previous holes cut with diamond wire is provided with hammer tallante mouth thoroughly with a diameter of 90 mm and hydraulic drive. -
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Magnum is a pneumatic block cutting machine for vertical drilling, featuring a robust structure and a 10 wheel slide supporting trolley
Marini Quarries Group S.r.l.
Italy
Marini Quarries Group S.r.l.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Technical Specs
Main Engine = 22 Kw - 30 Hp/1500 Rpm 380 V
Rotation Engine = Hrs 400 cc
Rotation Pressure = Max 200 Bar
Movement System = Movement Motor
Push Engine = 50 cc With Gearbox
Push Pressure = Max 120 Bar
Diesel Engine = 27 Hp 1850 rpm Water Cooling
Phase Saver = Included
Drill System = Horizontal + Vertical
Drill Capacity = Max 60m.
Pushing System = Adjustable Pressure
Drill Speed = Changeable for hardness 5 – 15min.
Hydraulic Tank Capacity = 300 Lt
Tower Length = 280 cm
Air Consumption = 2,1 M3 / 6 Bar - 4,0 M3 / 10 Bar
Compressor = Screw Air Compressor 4,5m3 / 10bar
Pipes = 180 cm – 20 pcs
Roc+ 21 Dth Hammer
Toolbox
Turkey
Kur Makina Tic.Ltd.Sti.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineElectric Horizontal Drill Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
This machine is used for drilling in quarry. It can drill both vertical & horizontal.
Light weight, operated by single person, also easy to anchor, dismantle & transport
Minimum hole in horizontal mode - 50 mm, while drilling in any direction, it gives 15 degree flexibility by ball joint between feed beam and anchoring frame
We also supply machine for different bores - 3.5", 4.5", 7". We also manufacture LD4 sloter machine
Bhagwati Engineering Works
India
Bhagwati Engineering Works
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineElectric Horizontal Drill Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
AUTOMATIC HORIZONTAL CORING DRILL
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
$5500-13500
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Multifunctional Rock driller is mainly used in quarrying, available for horizontal, vertical, and slantwise drilling . And used for dividing large blocks into smaller ones.
New Haineng
4YR
China
Quanzhou Xinhaineng Machinery Co,. Ltd.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachinePneumatic Drill Machine
$17000-20000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
Multi-functional rock driller is mainly used in quarrying, available for horizontal, vertical, andslantwise drilling, and dividing large blocks into smaller pieces.
SHUINAN MACHINE
5YR
China
XIAMEN SHUINAN MACHINE CO.,LTD.
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Warranty: 12 Months
Usage: Marble, Limestone
Machinery Function Features:
2 Rock drills
360 ° rotation
4 wheel drive
Reliable SpeedROC 2F is a productive drill rig for the dimension stone industry. It is highly productive thanks to its long reach and fast positioning. This versatile machine has a flexible drilling capacity and excellent tramming stability.
It is the perfect choice for granite, marble and limestone quarries.
Picoroc
Italy
Picoroc Srl
Contact Supplier
-
Add To Compare
Type: Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
$9400-11000
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS Ünite Motoru / Engine Unit 7.5 KW, 10 Hp, 1500 dev/dak Elektrikli / (Rpm) with Elektricity Sağ Sol Dönüş Motoru / Right-Left Rotation Engine Hidrolik Motor / Hydraulic Engine Aşağı Yukarı Hareket Motoru / Forward-Backward Movement Engine Hidrolik Motor / Hydraulic Engine Delme Boyu / Drilling Length Sapmadan 15 m/30 m Delme Kapasitesi / 15 m/30 m Drilling Capacity with No Deviation Delme Hızı / Drilling Length 1metre / 3-5 dak. - 1 m. / 3-5 min. Delme Çapı / Drilling Diameter 90 mm Hava Tüketimi / Air Consumption 2.1 m3 / dak (6 Bar Basınçta) - 2.1 m3 / min. (6 Bar pressure) Tij Boyu / Tij Lenght 100 cm 10 Adet - 100 cm / 10 Piece Matkap Ucu / Drilling Bit Hava Tabancası Bit ile Birlikte 1 Adet / Air Gun with Bit 1 Piece Çalışma Tipi / Operation type Sağa Sola Hareket Hidrolik Kontrollü/ Right and Left Movements are Hydraulic Control Aşağı Yukarı Hareket Hidrolik Kontrollü/Up and Down Controls are Hydraulic Control Verilen Aksesuarlar / Accessories 2 Ad. Anahtar, 3 Ad. Gergi Zinciri ve Aparatları, 1 Ad. Yağdanlık, 10 Ad. Boru, 1 Ad. Hava Tab. Boru Sehpası, 4 Ad. 10’ar Metre Hidrolik Hortumları,1 Ad. 10 Metre Hava Hortumu 2 Piece Wrench, 3 Piece Tension Chains and Accecories, 1 Piece Lubricator, 10 Piece Bits, 1 Piece Air Gun Bit Stand, 4 Piece Hydraulic Hoses 10 m, 1 Piece 10 Meter Air Hose Makinanın Net Ağırlığı / Weight 115 kg. Makine Ekipmanları ile Birlikte Ağırlığı Machine Weight With Equipments 450 kg. / Total 450 kg.
GÖLER MAKİNA
Turkey
Goler Makine Rulman San Tic. Ltd. Sti.
Contact Supplier
Have a Question? Ask our expert
Ask now
