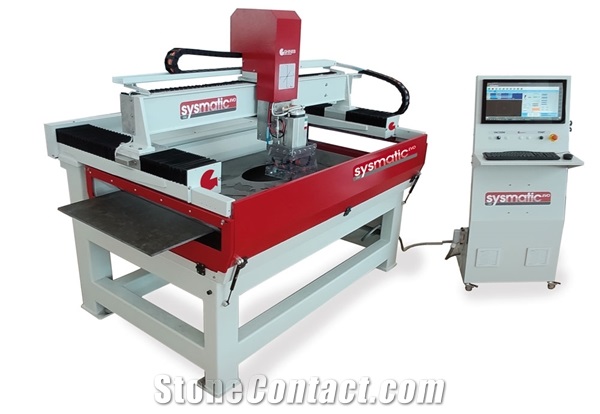

SYSMATIC EVO - CNC Sink Cut Out Machine

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting

Supplier

Eatablished :Dec 29,1980

Main Product:

Systhema, Multifuctional Stone Working Unit, Sector Multispeed, CNC Machines, Dust Collectors, CNC Working Center|

Contact supplier

Start Order

  • Overview
Machinery Function Features
The small foot print permits to easily place this CNC sink cutting machine even in the smallest stone work shop (but be aware that you can load very long slabs!) WHICH PROBLEM DOES IT SOLVE FOR THE STONE FABRICATOR? You’ll be able to speed up a usually long process such as cutting the sink, with a low investment (and a really easy to use programming by macros -no specific skills required, watch here below a video tutorial about the native software). If you’re not 100% on stone benchtops but you have a wider range of stone products, this small CNC is also a pantograph that write and engrave bas-relief. WHAT WILL YOU CREATE? countertops bas-reliefs funeral tablets commemorative plates decoration STONE PROCESSING TYPES cut-out by finger bit shaping and polishing undermount sink cut out faucet holes recessed drainer/drain grooves engraving & writing WHAT WILL YOU LOVE IN THIS CNC STONE ROUTER? high torque brushless motors high precision (ball screws) smooth movements of the axes user-friendly and fast learning curve space saving open frame (no-limits for the length of the slab) water & air automatic control
Technical Data
Parameters
Unit
SYSMATIC EVO
Machine overall length
mm
2250
Z axis stroke
mm
200
Approx. Weight
Kg
900
Dimensions of the work table (length x width)
mm
1300 x 800
X axis stroke
mm
1300
Machine overall height
mm
2000
Standard voltage
Volt
400V 50/60 Hz three-phase (20A) --220V 50/60 Hz three-phase (30A)
Tool-holder spindle rotation speed
r/min
1500 - 13800
Water requirement
L/min
20
Y axis stroke
mm
800
Air consumption
L/min
150
Tool-holder spindle motor power
kw
2,2
Machine overall width
mm
1650
Software

● Simple by macros
● Imports ISO and DXF files
● Intuitive CAD CAM
● Nesting
● Teleassistance
● Automatic backup

Processed Stone Photos
  • countertops

    countertops

  • bas relief

    bas relief
