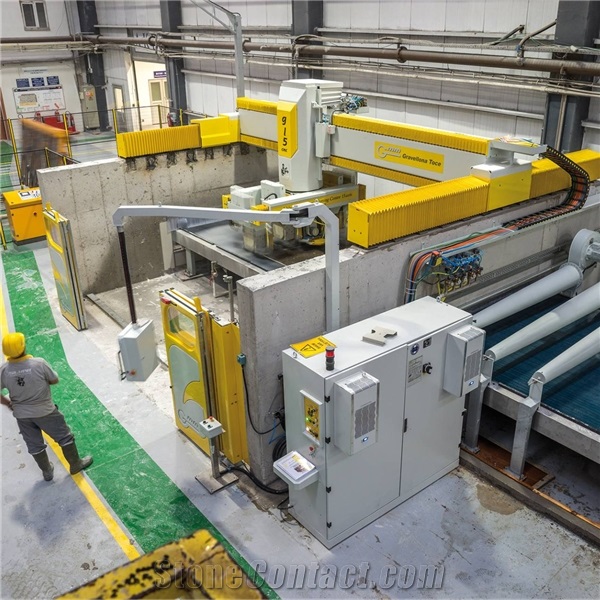

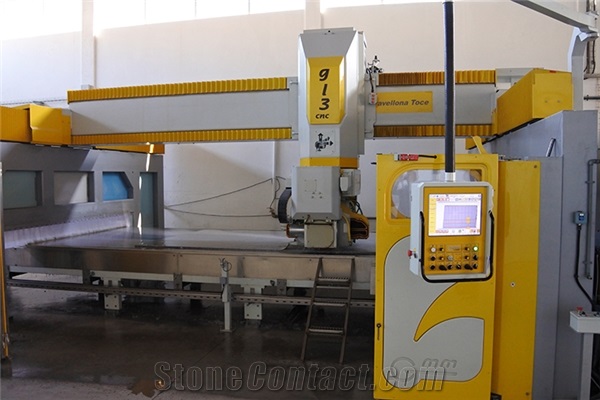

GL3 CN2 Multispindle 5 Blades Automatic CNC Cutting Center

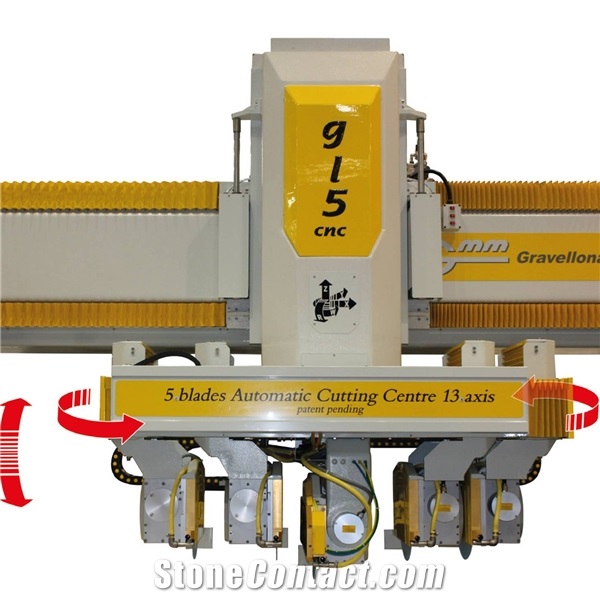

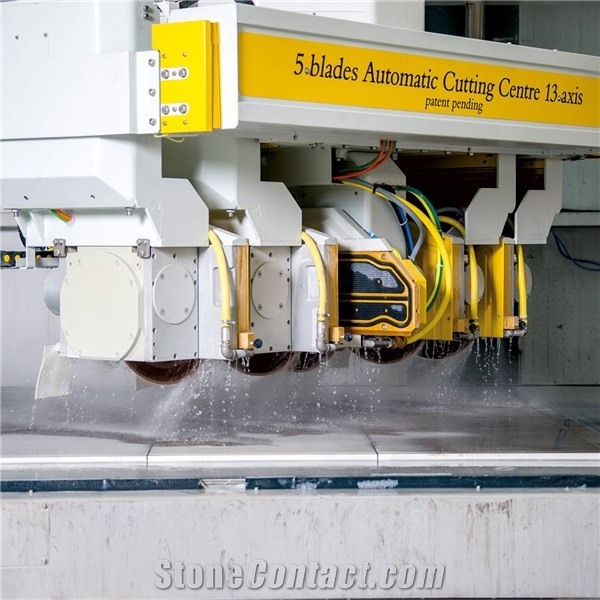

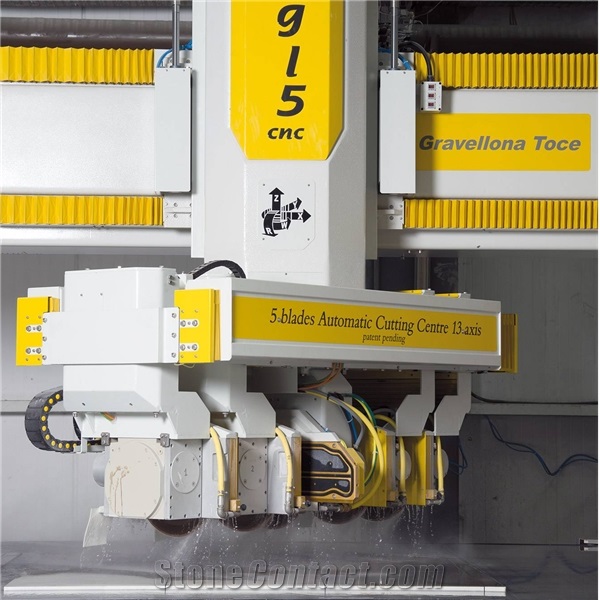

MULTISPINDLE CNC CUTTING CENTER The machine is equipped with up to 5 blade motors driven by different variable speed power units to be used simultaneously or single. For high production sawing up to thirteen axes. Multi blade cutting for dimension from 140 mm to 2000 mm, the central unit can perform inclined cut up to 90° on all around 370°. Independent tool wear control and compensation for each blade. Accurate and fast thanks to brushless motors and to linear bearing guides. Extreme precision cutting result due the rotating top cutting unit, the material doesn’t need to be shifted or re-aligned. Automatic nesting of the cutting piece on board with defect track, due the use of and external camera, the cutting performance are guarantee from the easy to use software and the GMM patented vacuum installed on the central unit. Ability to load electronic cutting sheet. The machine performs automatically parallel cut, arcs and pieces shift by vacuum for allowing blade overruns. Compact cutting line solution when equipped with automatic loading device and roller belt feeding system. Large production result up to 490 sq/m in 8 hours. OPTIONAL Nesting. Camera on board. Parametric program. Vacuum system. Robotic loader. Automatic load carrier. Motorized roller unit. Short conveyor belt for cutting. Short conveyor belt for unload. Drying fun.
