CEMAR Grinding-Polishing-Brushing Machine Tangential Heads, Planetary Heads
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting
Machinery Function Features
FEATURES

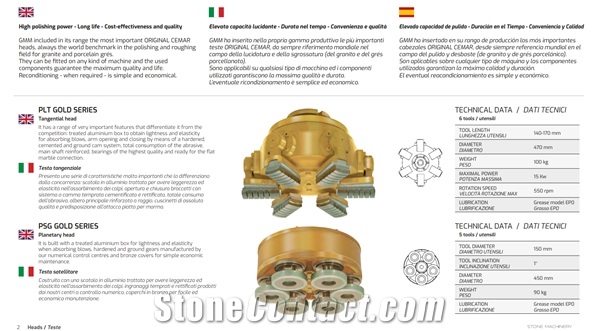

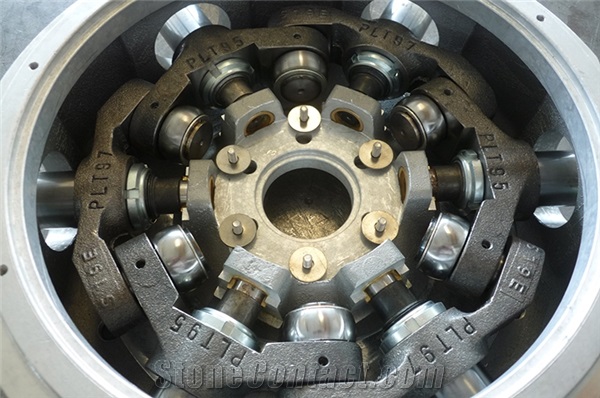

PLT GOLD SERIES - TANGENTIAL HEAD
It has a range of very important features that differentiate it from the competition: treated aluminium box to obtain lightness and elasticity for absorbing blows, arm opening and closing by means of a hardened, cemented and ground cam system, total consumption of the abrasive, main shaft reinforced, bearings of the highest quality and ready for the fl at marble connection.

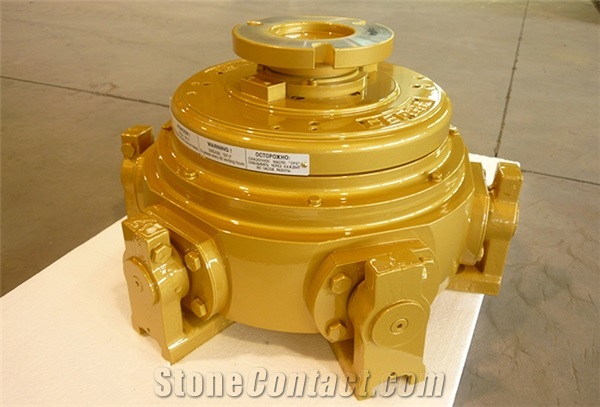

PSG GOLD SERIES - PLANETARY HEAD

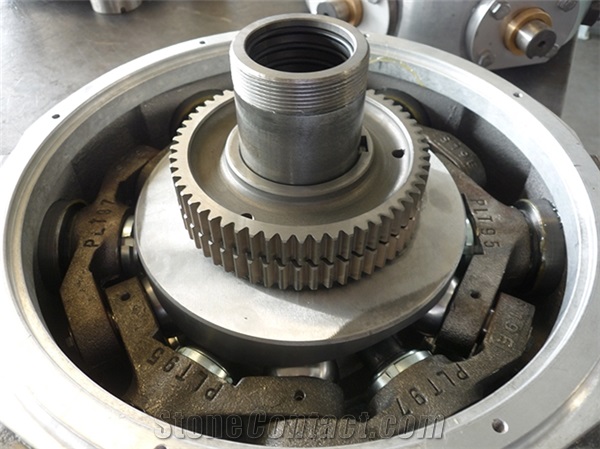

It is built with a treated aluminium box for lightness and elasticity when absorbing blows, hardened and ground gears manufactured by our numerical control centres and bronze covers for simple economic maintenance.
Technical Data
Parameters |
Unit |
PLT TANGENTIAL |
PSG PLANETARY |

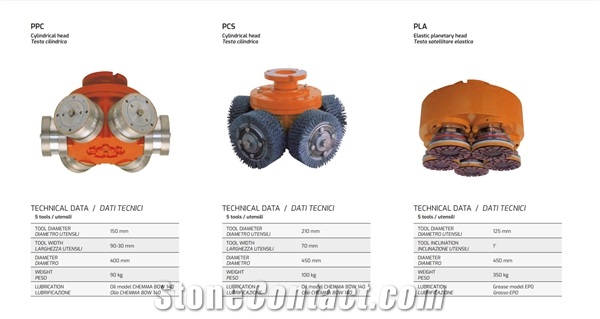

PPC CYLINDRICAL |
PCS CYLINDRICA |
PLA ELASTIC PLANETARY |
Plate Diameter |
mm |
470 |
450 |
400 |
450 |
450 |
Tool width |
mm |
- |
- |
90-30 |
70 |
- |
Tool inclination |
° |
- |
1 |
- |
- |
1 |
Polishing heads/honing units motor power |
kw |
15 |
15 |
15 |
15 |
15 |
Lubrication |
Type |
Grease model EP0 |
Grease model EP0 |
Oil model CHEMMA 80W 140 |
Oil model CHEMMA 80W 140 |
Grease model EP0 |
Tools number |
nr |
6 |
5 |
5 |
5 |
5 |
head weight |
kg |
100 |
90 |
90 |
100 |
350 |
Tool length or Tool diameter |
mm |
140-170 |
150 |
150 |
210 |
125 |
Rotation speed max |
rpm |
550 |
550 |
550 |
550 |
550 |
