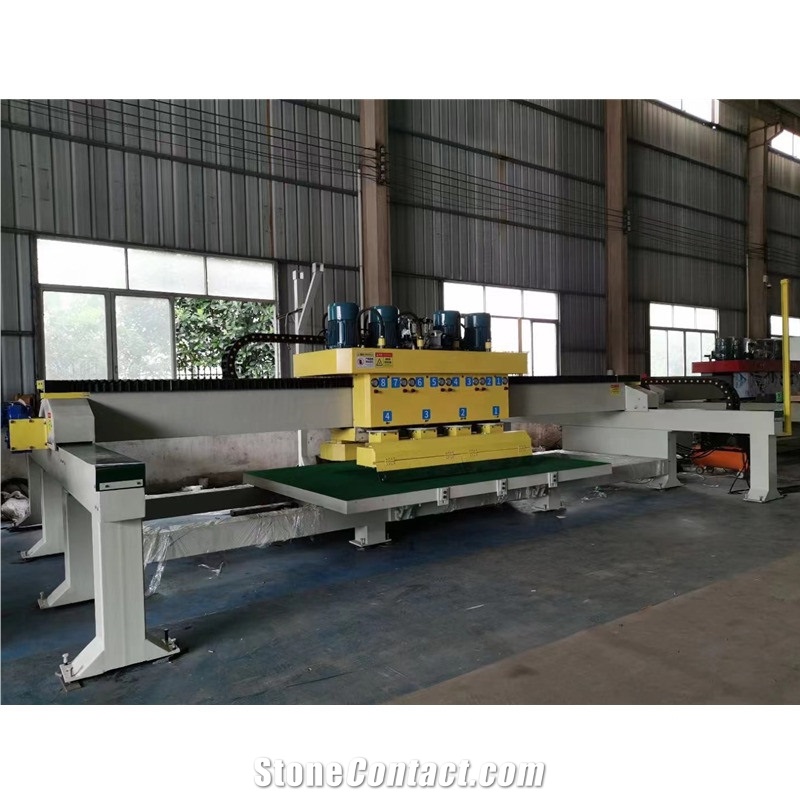

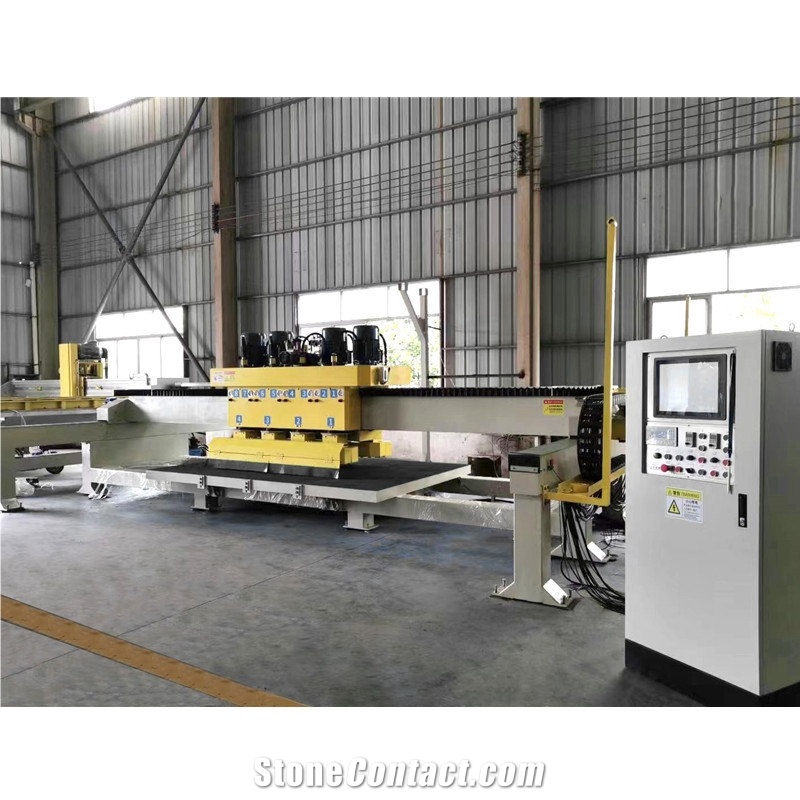

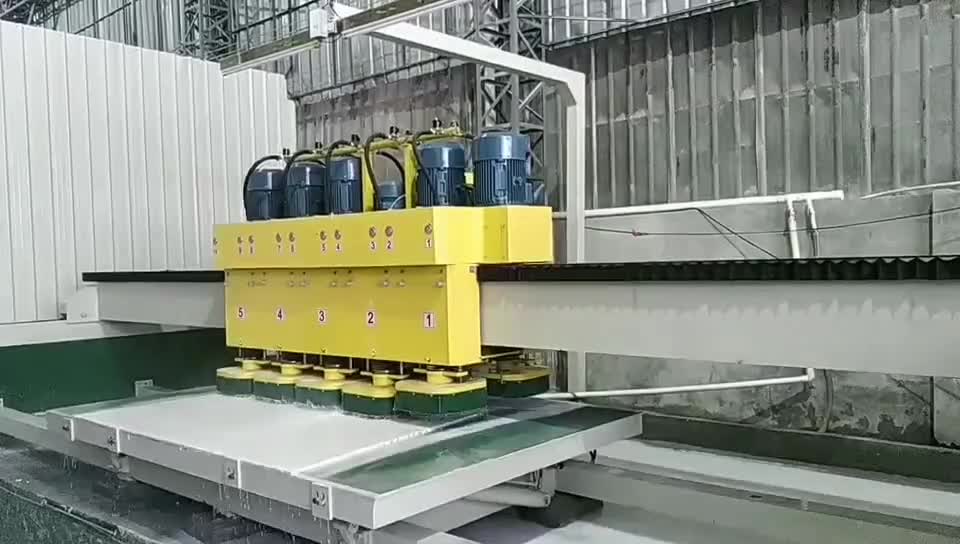

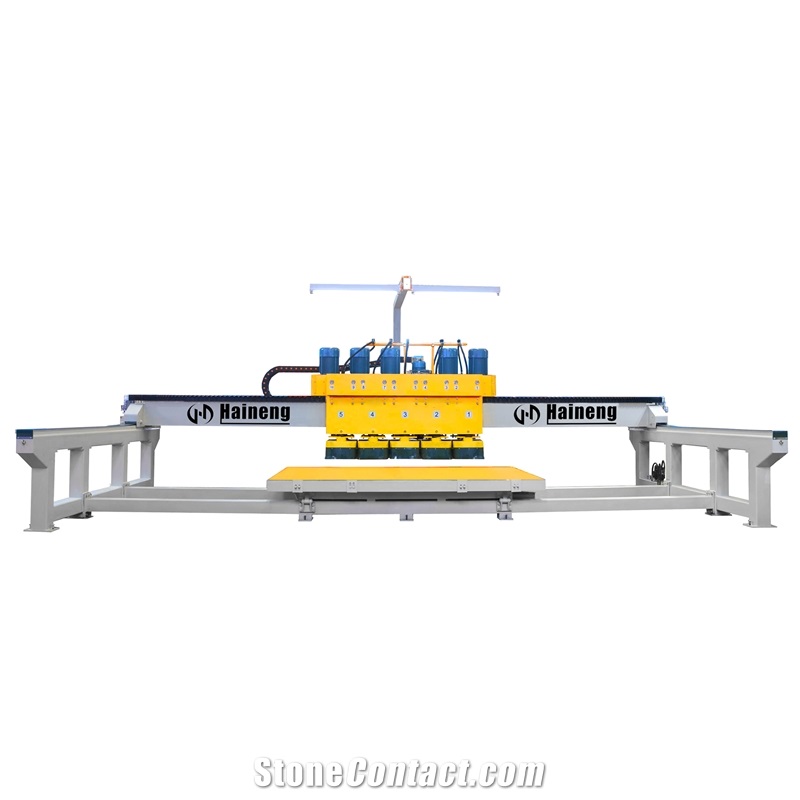

Automatic Multi Heads Stone Slab Polishing Machine
FOB Price:$30000-32000
Type:
Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
The machine is mainly used for the polishing of stone slabs, with large processing range and small area. Adopt advanced stone image detection technology and automatic pressure system, the entire processing process is automatically completed. It is the preferred equipment for high -end slab polishing.
Technical Data
Parameters |
Unit |
DTM-8 |
DTM-10 |
DTM-12 |
Oversize |
8000×5300×3300mm |
000×5300×3300mm |
10000×5300×3300mm |
|
Power supply |
380V 50HZ (A、B、C 、N 、PE ) |
380V 50HZ (A、B、C 、N 、PE ) |
380V 50HZ (A、B、C 、N 、PE ) |
|
Polishing plate pressure |
Kg/cm2 |
1-5 |
1-5 |
1-5 |
Machine occupy area |
8500×5800mm |
10500×5800mm |
12500×5800mm |
|
Polishing head Qty. |
pcs |
8 |
10 |
12 |
Water Consumption |
L/min |
180 |
200 |
250 |
Slabs max. processable thickness |
mm |
13-50 |
13-50 |
13-50 |
Main motor power |
kw |
11 |
11 |
11 |
Polishing plates diameter |
mm |
430 |
430 |
430 |
Slabs max. processable length |
mm |
3300 |
3300 |
3300 |
Gross Power |
kw |
55.2 |
66.2 |
78.6 |
Slabs max. processable width |
mm |
2200 |
2200 |
2200 |

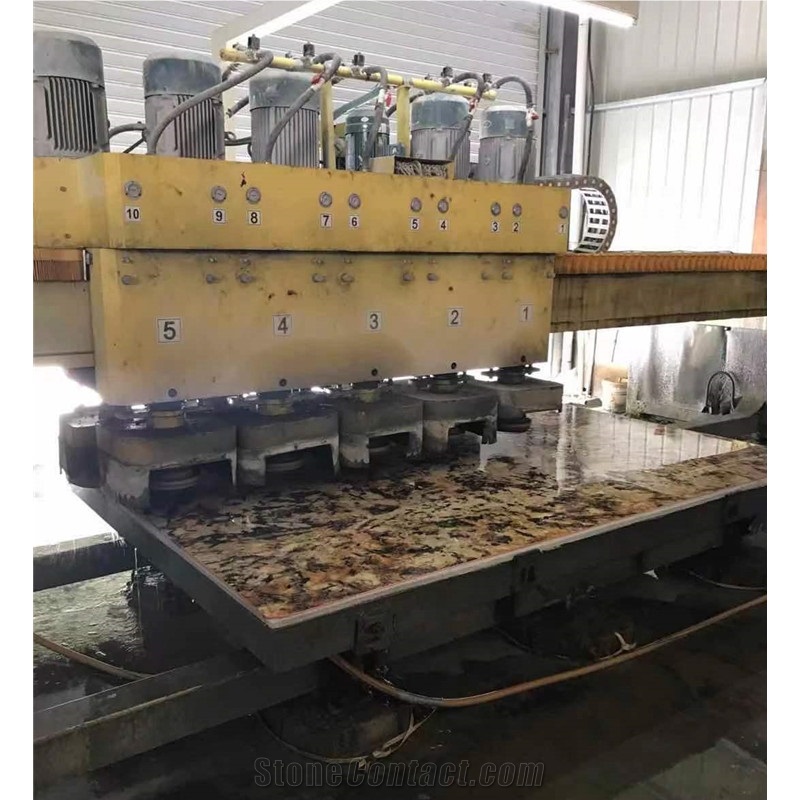

Processed Stone Photos

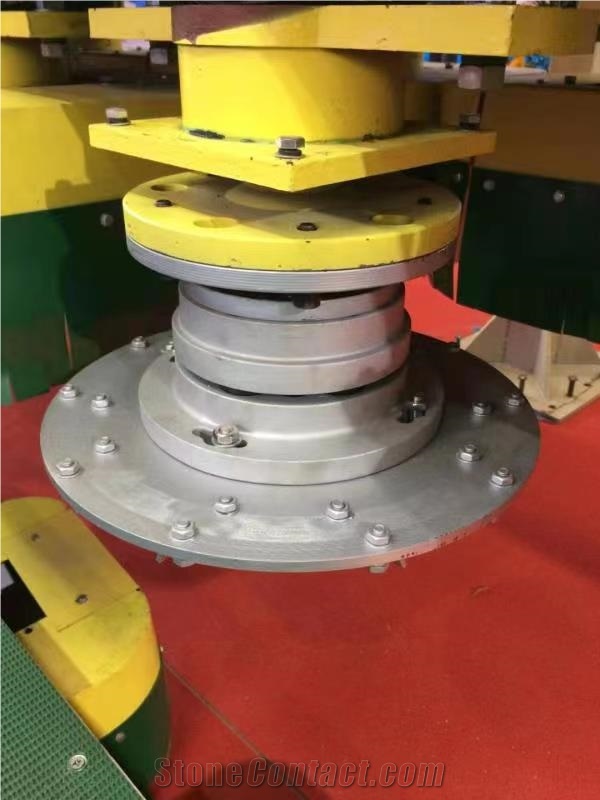

Components
-
¥Payment Required

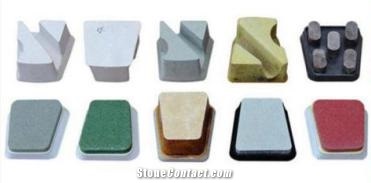

Consumables
