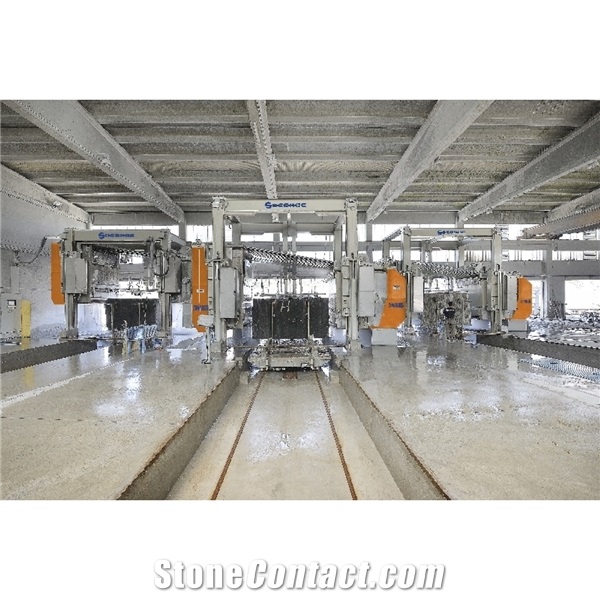

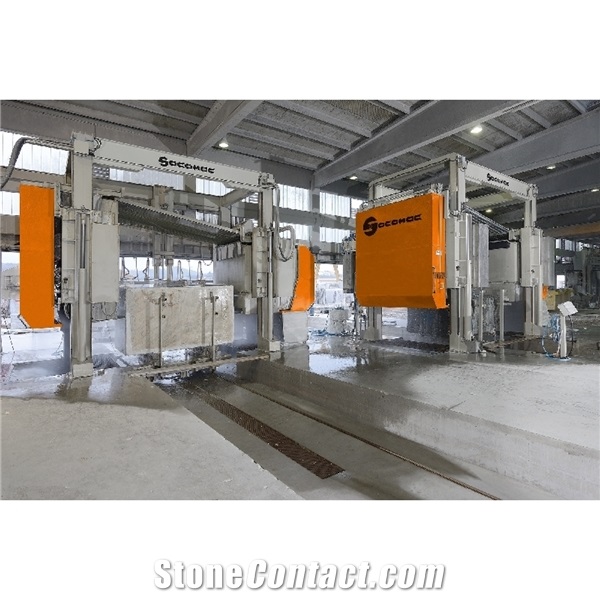

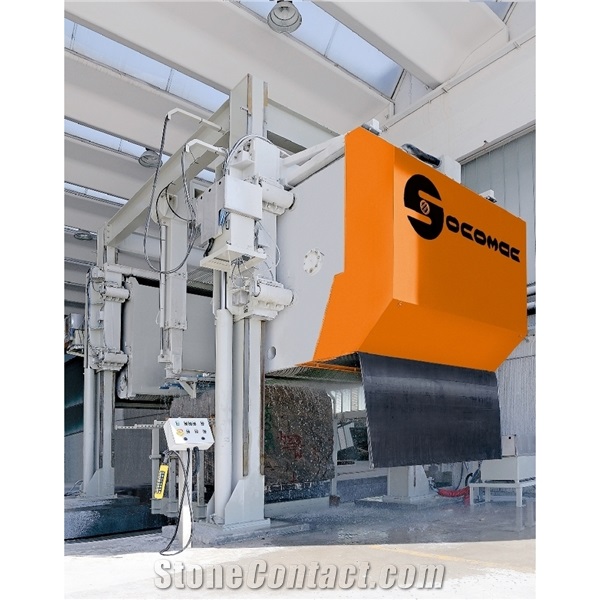

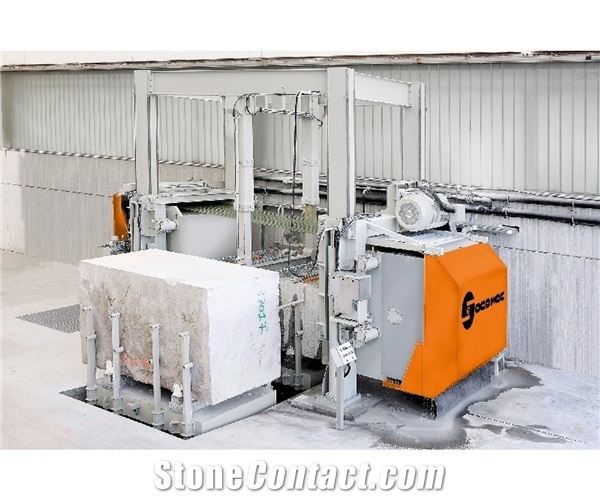

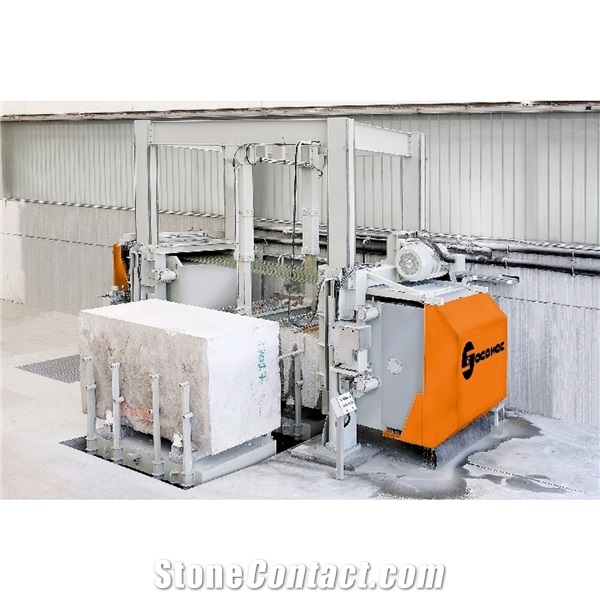

Socomac-70 LINA- MODEL.70W L2000 Multi Wire Saw Block Cutting Machine

The 70 rope cutting system is a machine designed to cut granite blocks into various thicknesses of plates. The machine consists of four columns on which four carriages move in the hydraulic system. Additionally, the structure has integrated hydraulic locks that enable the installation of lines. The drive drum is 2200 mm in diameter while on the other hand two drums are 880 in diameter and a group of hydraulic cable tensions. The machine is complete with an automatic locking system for the cut plates. The machine is equipped with a modern, hydraulic rope lowering / lifting system. The hydraulic system consists of four electronically controlled cylinders. The shifts can be with the same speed or with different - independent. You can also control the left and right sides of the columns separately, which allows you to perfectly align the ropes to uneven blocks.
