Diameter 4.3/ 5.3/ 6.3/ 7.3Mm Multi Wire Saw Machine For Stone Cutting

Name: Diameter 4.3/ 5.3/ 6.3/ 7.3Mm Multi Wire Saw Machine For Stone Cutting
Brand: CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD
SKU: 4894
Price: 300000 USD
Availability: InStock

FOB Price:$300000-500000

Type: Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine

Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 3 month

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Port: shenzhen- China

Delivery Details: FOB,CFR,CIF,EXW,FCA

Payment :

Supplier

CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD

TOOLSTAR

China level 3YR

Eatablished :Sep 15,2022

Main Product:

Multi Wire Saw Machine, Block Dressing Machine, Quarry Machine, Dth Bit, Diamond Wire Saw, Dth Hammer|

Contact supplier

Start Order

You may also like

TSY-MW12 Multi Wire Saw Machine For Nature Stone Cutting

7.3Mm 76 Wires T-REX MWS Multi-Wire Sawing Machine For Granite

Multi Wire Saw Machine

Multi Wire Saw Block Cutting Machine

2025 High Benefit Ultra Thin Multiwire Saw Stone Block Cutting Machine

Product Detail
Company Profile

Overview
Components
Video
Trade Terms
Customer Case

Machinery Function Features

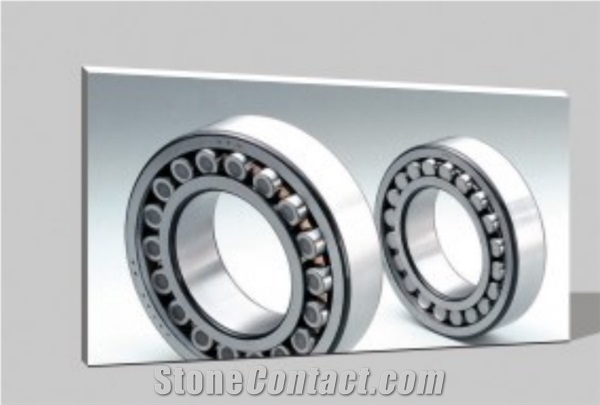

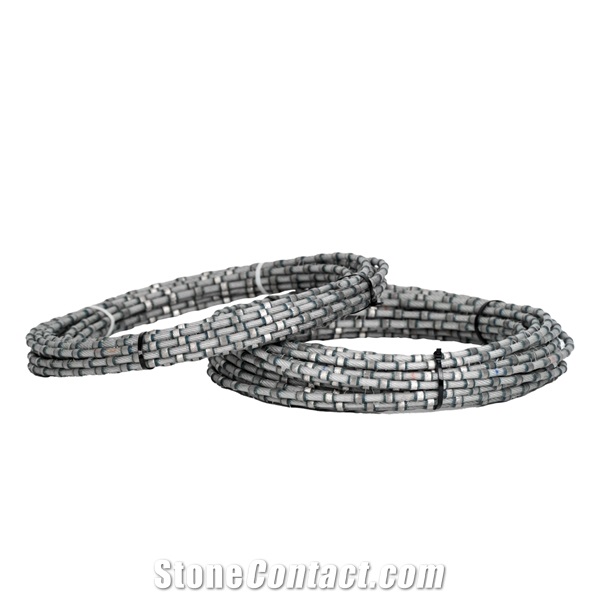

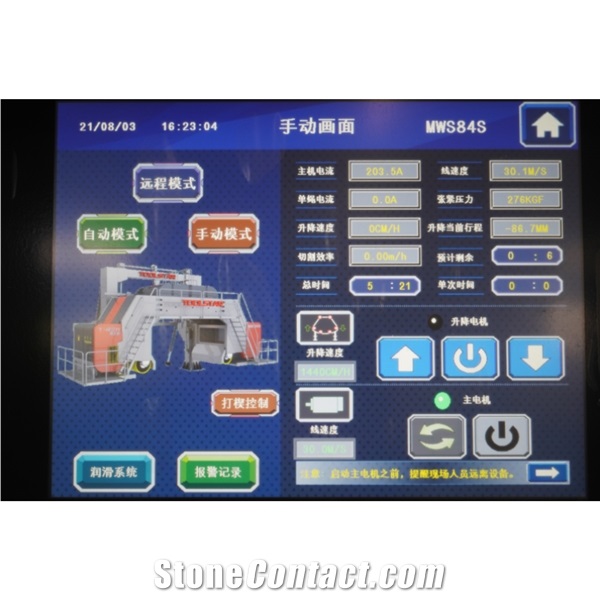

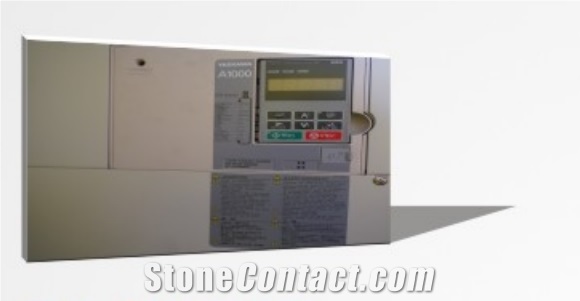

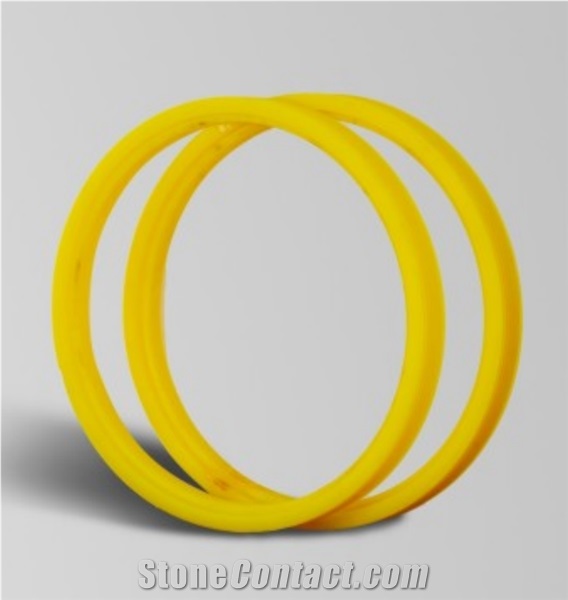

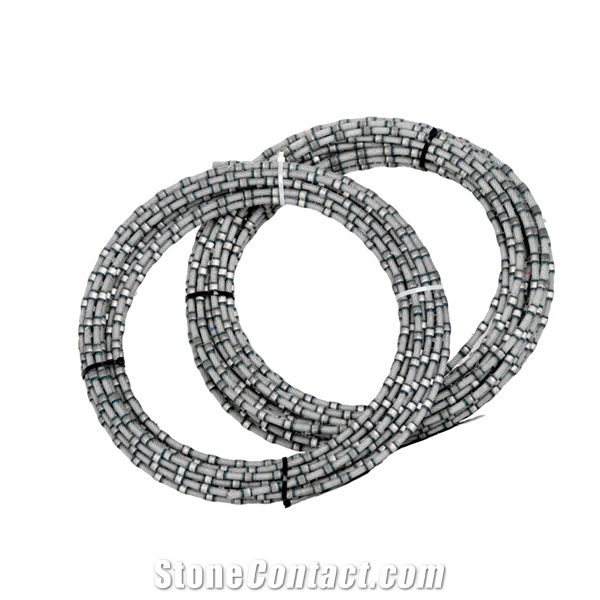

Toolstar multi wire saw machine 1,SCHNEIDER(French)PLC+touch screen,Stable Functions,smooth operation. 2,Stable triangle structure designed by Toolstar R&D center(ltaly),Advanced technologies ensuring Toolstar to achieve industry-leading company 3,NSK(Japan) bearings,With self-lubricating high-precision wheel group,the lifespan of bearings exceeding 10000 hours. 4,China Biggest Manufacturer of Diamond 5,YASKAWA(Japan)Inverter,Harmonics resilience, strong anti-interference ability,reliable performance. 6,German Well-known Steel Cable Brand

Technical Data

Parameters	Unit	T-Rex MWSXB with 7.3mm Diameter Wires	T-Rex MWSXN with 6.3mm Diameter Wires	T-Rex MWSXS with 4.3mm-4.8mm Diameter Wires
Dim. Trolley Size/Worktable size	mm	20002500-25003200	20002500-25003200	20002500-25003200
Slabs nominal thickness	mm	20/30/40/50/60/70/80/90/100	20/30	18
Worktable max. rotate angle	°	not allowed	not allowed	not allowed
Approximative Weight	T	25-62	50-62	50-62
Max. Cutting height	mm	2100	2100	2100
Wire pitch for sawing 30mm thick.	mm	38	37.2	none
Voltage/Frequency	V/Hz	it depends on which country	it depends on which country	it depends on which country
Diamond wires speed	m/s	0~35	0~35	0~35
Diamond wire length	m	21.52	21.52±0.02	21.52
Output number of slabs 20mm per linear mt.	nr	it depends	it depends	it depends
Fast lowering unit power	kw	37	132	200
Max. Number of wires for sawing 20mm thick.	nr	76	76	88
Production efficiency 20mm thick.	m2/h	it depends，contact us to know more details	it depends，contact us to know more details	it depends，contact us to know more details
Cooling water(min. required pressure 3.5 bar)	L/min	150-1500	1000-1500	1500
Main motor power	kw	37-280	90-280	200-280
Installed electrical power	kw	57-300	110-300	220-300
Diamond bead diameter	mm	5.3	6.3	4.3
Worktable load capacity	T	40-80	80	62
Pitch groove wire driving	mm	2450	2450	2450
Output number of slabs 30mm per linear mt.	nr	it depends	it depends	it depends
Machine length (L)	mm	11200	11200	11200
Max. individual diamond wire tension	Kg	220-260	180-220	160-200
Max. Number of wires for sawing 30mm thick.	nr	76	76	76
Machine width (W)	mm	2600-7400	4500-7400	4500-7400
Wire pitch for sawing 20mm thick.	mm	28.5	27.9	24.8
Machine height (H)	mm	6500	6500	6500
Max. Cutting width	mm	600-2100	600-2100	1600-2100
Wires set width	mm	7.3	6.3	4.3-4.8
Max. Cutting length	m	3400	3400	3400
