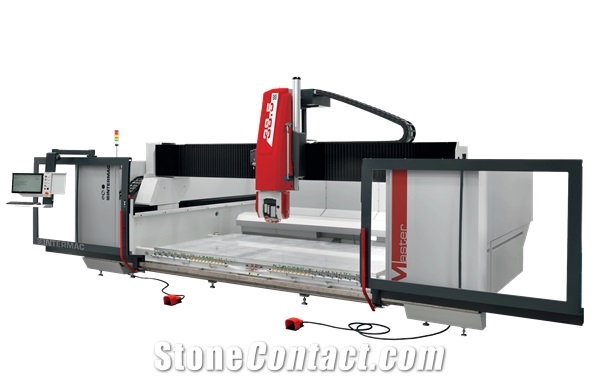

INTERMAC MASTER SERIES CNC Work centers for stone processing

Name: INTERMAC MASTER SERIES CNC Work centers for stone processing
Brand: Intermac Glass & Stone Division - Biesse Spa
SKU: 3990
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Intermac Glass & Stone Division - Biesse Spa

Intermac

Italy

Main Product:

CNC Machines, Waterjet, CNC Work Center, Bridge Saws, Double Edging Machines For Sintered And Natural Machines, Horizontal Edge Polishers, Vertical Edge Polishers For Flat Edges, Slabs Loading And Unloading, V-Groove|

Contact supplier

Start Order

You may also like

3/4 Axis Countertop Sink Polish ATC Stone CNC Router Machining Center

Silver 2000 - Cnc Working Center with Three Interpolated Axes

Cutting And Edging CNC Working Center

2024 New Launch Automatic Quartz Stone CNC Machining Center For Sale

Precision CNC Stone Machining Center

Product Detail
Company Profile

Overview
Components

Machinery Function Features

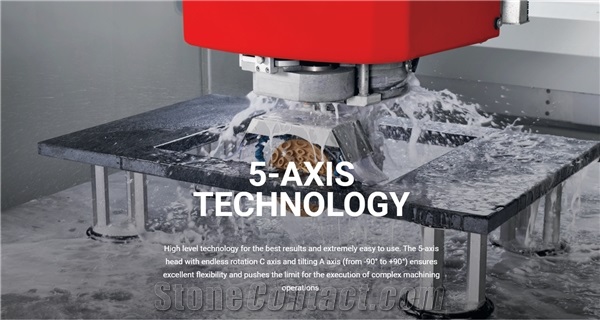

LATEST-GENERATION TECHNOLOGY The Master Series is the range of Intermac machining centers dedicated to stone processing. These technologies can machine sheets of natural materials, ceramics and synthetic materials used for floors, façades and cladding, furnishings, kitchen tops and funerary applications. Master processing centers are designed to offer optimum finish quality on sheets and blocks of natural and synthetic materials and ceramics, guaranteeing maximum reliability at all times. 5-AXIS TECHNOLOGY High level technology for the best results and extremely easy to use. The 5-axis head with endless rotation C axis and tilting A axis (from -90° to +90°) ensures excellent flexibility and pushes the limit for the execution of complex machining operations. HIGH PERFORMANCE In line with requirements, the machine can be equipped either with a C Axis or a T Axis. Maximum acceleration and axle speeds, minimizing waiting times and enabling cycle times to be reduced.

Technical Data

Parameters	Unit	Master 33.3 Master 33.3 Plus	Master 38.3 Master 38.3 Plus	Master 45.3 Master 45.3 Plus	Master 33.5 Master 33.5 Plus	Master 38.5 Master 38.5 Plus	Master 45.5 Master 45.5 Plus
Machine overall height	mm	2600	2600	2600	2600	2600	2600
Tool-holder spindle motor power	kw	15 (18)- in S1 (S6)	15 (18)- in S1 (S6)	15 (18)- in S1 (S6)	15 (18)- in S1 (S6)	15 (18)- in S1 (S6)	15 (18)- in S1 (S6)
Machine overall length	mm	4525	4945	5470	4525	4945	5470
Z axis stroke	mm	465 - 650(plus version)	465 - 650(plus version)	465 - 650(plus version)	465 - 650(plus version)	465 - 650(plus version)	465 - 650(plus version)
Machine overall width	mm	6250	6750	7455	6250	6750	7455
X axis rapid speed	m/min	60	60	60	60	60	60
Work table height	mm	535 (high version:740)	535 (high version:740)	535 (high version:740)	535 (high version:740)	535 (high version:740)	535 (high version:740)

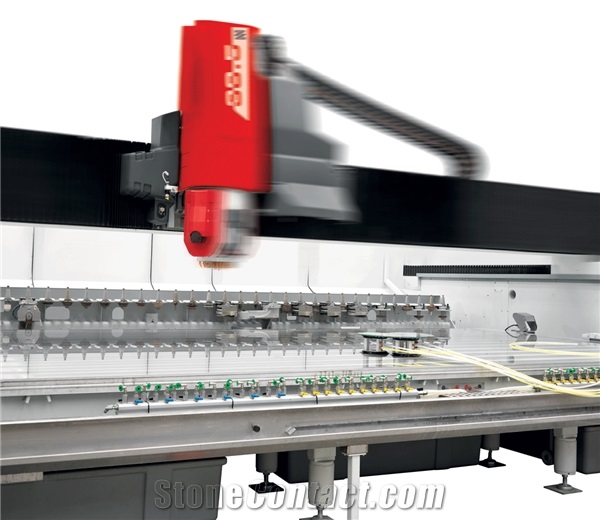

Linear tool-store capacity	nr	45	53	61	45	53	61
Tool cooling		ISO 40	ISO 40	ISO 40	ISO 40	ISO 40	ISO 40
Y axis rapid speed	m/min	70	70	70	70	70	70
Approx. Weight	Kg	5800	6800	8600	5800	6800	8600
C axis stroke (optional)	mm	∞	∞	∞	∞	∞	∞
Z axis rapid speed	m/min	18	18	18	18	18	18
Dimensions of the work table (length x width)	mm	3.300 x 1.550	3.800 x 2.000		3.300 x 1.550	3.800 x 2.000	4.500 x 2.500
Tool-holder spindle rotation speed	r/min	12000	12000	12000	12000	12000	12000
Total Power required	kw	22,5	22,5	22,5	22,5	22,5	22,5
T axis stroke (optional)	mm	+/- 2,5°	+/- 2,5°	+/- 2,5°	+/- 90°	+/- 90°	+/- 90°

Software

EASYSTONE IS CAD/CAM SOFTWARE SPECIALISED FOR THE MACHINING OF MARBLE, GRANITE, STONE AND SYNTHETIC MATERIALS USING CNC MACHINING CENTRES. IT IS USED
WIDELY IN THE SECTOR AND ALLOWS FOR THE EXECUTION OF THE MOST COMMON MACHINING OPERATIONS FOR STONE. THE SOFTWARE IS COMPATIBLE WITH PREVIOUSLY
INSTALLED EASYSTONE PACKAGES AND ALLOWS FOR FLEXIBLE CONFIGURATION ON THE BASIS OF THE CUSTOMER'S NEEDS.

Simple and intuitive
It can even be used by individuals who don't have specialised computer skills: all
functions are "just a click away".
Complete
Manages every aspect of CNC machining at 360°, guiding the operator from the design to the distribution of the pieces on the work table, to collision control with 3D simulations, to the optimisation of the machining operation workflow for the tools, to the generation of the machine programs.
Automated
The pieces to be created can be designed rapidly thanks to a library of parametric components. The automatic CAM module can pair the machining operations with the pieces automatically.
Ideal for every type of machining operation Allows for the programming of all the typical machining operations used on stone:
shaping and polishing edges, kitchen tops, bathroom unit tops, engraving, bas relief, shower trays, shaping and finishing solid pieces, polishing surfaces for 5-axis machining operations, using all types of tools.

EASYSTONE MASTER - 3 AXIS
Create and import 2D and 3D designs in the most widely used standard formats (.dxf, .stl, .iges).
Program 2D machining operations for sheets: boring, milling, edgebanding, engraving, recessing, tracing.
Program 3-axis machining operations for the emptying and finishing of solid pieces (shower trays, sinks, tubs, vases).
Option of importing images in standard formats (.jpg, .bmp) and converting them into surfaces for the programming of bas relief and high relief machining operations.
Simulates the removal of material.
EASYSTONE MASTER - 5 AXIS
Besides the EasySTONE Master 3-Axis functions, allows for the programming of 5-axis machining operations
(bevels, capitals, statues)

OPTIONAL PACKAGES
Automatic CAM: automatic pairing of machining operations with the pieces on the basis of rules defined by the user for design properties such as layer type of geometry.
Office station, multi-centre and network key: option of generating different types of programs for the office and the Master from a single station beside the machine and of sharing the EasySTONE licence with up to 10 stations connected to the network.
Machining operations from below: option of programming cutting and boring operations from below
