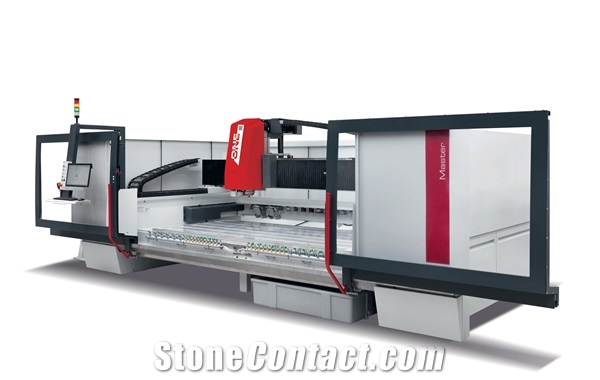

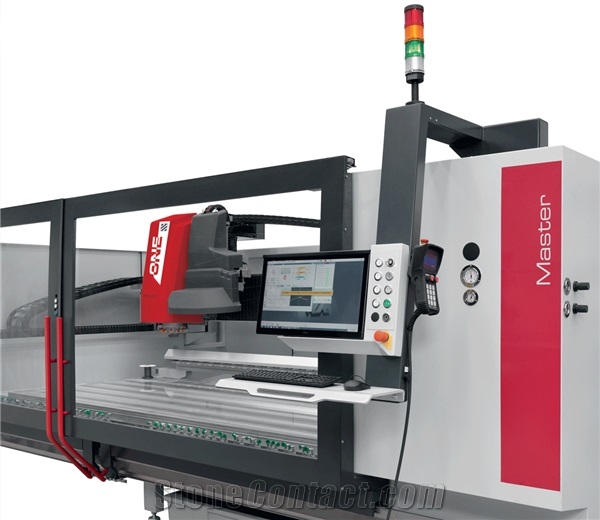

MASTER ONE CNC Work Center Machine for All Stone Processing
FOB Price:
Parameters |
Unit |
Master One |
Master One C |
Y axis rapid speed |
m/min |
70 |
70 |
Tool-holder spindle rotation speed |
r/min |
12000 |
12000 |
Z axis rapid speed |
m/min |
19 |
19 |
Max. working length |
mm |
3300 |
3300 |
Fixed tool magazine |
positions |
23 |
- |
Total Power required |
kw |
20 |
20 |
Tool-holder spindle motor power |
kw |
9.2 |
9.2 |
Water requirement |
L/min |
10,5 |
10,5 |
Working air pressure |
bar |
7 |
7 |
Dimensions of the work table (length x width) |
mm |
3300x1500 |
3300x1500 |
Work table height |
mm |
740 |
740 |
Shaping Tool max. diameter |
mm |
150 |
150 |
Z axis stroke |
mm |
285 |
285 |
Max. working width |
mm |
1500 |
1500 |
Air consumption |
NL/min |
200 |
200 |
Tool cooling |
ISO 40 |
ISO 40 |
|
X axis rapid speed |
m/min |
70 |
70 |
T axis stoke - only pneumatic (optional) |
0° / -3° |
0° / -3° |
|
Machine overall height |
mm |
2550 |
2550 |
C axis stroke |
- |
∞ |
|
Machine overall width |
mm |
4100 |
4100 |
Shaping Tool max. length |
mm |
150 |
150 |
Tool magazine on head (optional) |
positions |
8 |
6 |
Mobile tool magazine |
positions |
- |
23 |
Machine overall length |
mm |
L: 7650 (doors open and vacuum tank) L: 7050 (doors closed and vacuum tank) L: 6200 (doors closed without vacuum tank) |
L: 7650 (doors open and vacuum tank) L: 7050 (doors closed and vacuum tank) L: 6200 (doors closed without vacuum tank) |
EASYSTONE MASTER - 3 AXIS
Create and import 2D and 3D designs in the most widely used standard formats (.dxf, .stl, .iges).
Program 2D machining operations on sheets: boring, milling, edgebanding, engraving, recessing, tracing.
Program machining operations for the 3-axis emptying and finishing of solid pieces (shower trays, sinks, tubs, vases.
Option of importing images using standard formats (.jpg, .bmp) and converting them into surfaces to program the machining of bas relief and high relief.
Simulates the removal of material.
OPTIONAL PACKAGES
Automatic CAM: automated pairing of machining operations with the pieces on the basis of rules set by the user for design properties, such as geometry layers.
Office station, multi-centre and network key: option of generating different types of programs for the office and for the Master from a single station near the machine and sharing the EasySTONE licence with up to 10 stations connected to the network.
Machining operations from below: option of programming machining operations for boring and cutting from below
