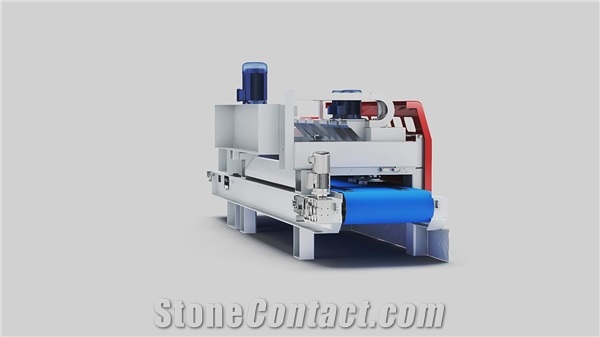

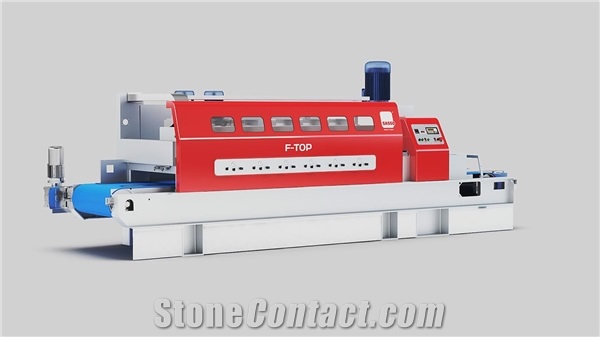

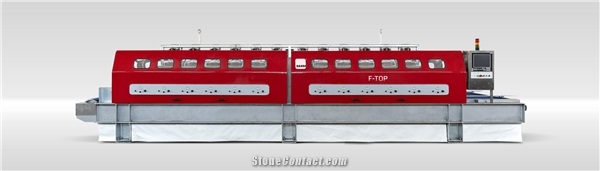

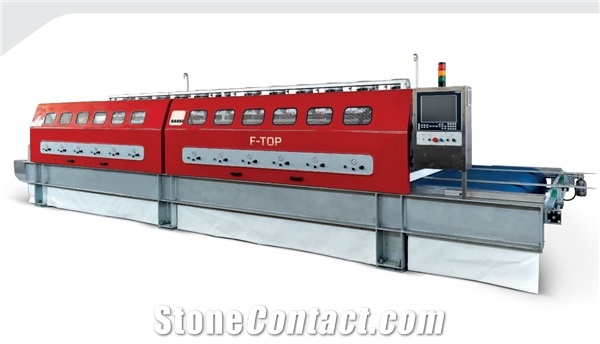

FX-Top Slab Polisher - Polishing Line Machine

Name: FX-Top Slab Polisher - Polishing Line Machine
Brand: Sassomeccanica S.p.A.
SKU: 4080
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine

Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Remote troubleshooting

Supplier

Sassomeccanica S.p.A.

Sassomeccanica

Italy level 8YR

Eatablished :Dec 31,1974

Main Product:

Stone Machinery, Edge Polishers , Saw Jet, Slab Polishers, Bridge Saws|

Contact supplier

Start Order

You may also like

Automatic Line Granite Disc Type Polishing Machine - Slab Polishing Line Machine

Automatic Line Polishing Machine

Automatic Polishing Machine For Marble

DAFON 24 Heads Automatic Marble Granite Polishing Machine

Marble Slab Polishing 10+10 Line Machine

Product Detail
Company Profile

Overview

Machinery Function Features

Strong and solidly-built. A project of high engineering. Over 40 years of innovation made FX-TOP a slab polisher of excellence. Ergonomic and advanced design. High performance and safety. For a long-lasting performance at maximum efficiency. 1 Hot dip galvanisation Ensures the benches will last through time 2 Versatility Versatile and high performing, the machine comes with a slab reading system that automates the polishing process. The polishing beam and spindles ensure high performance thanks to a wide variation of oscillation speed 3 Compactness Thanks to its one-piece structure, the machine takes up little room, and loading and unloading the slabs on the tilting bench is very easy

Technical Data

Parameters	Unit	FX-Top 06	FX-Top 08	FX-Top 10	FX-Top 12	FX-Top 14	FX-Top 16
Slabs max. processable width	mm	2200	2200	2200	2200	2200	2200
Polishing heads/honing units motor power	kw	11	11	11	11	11	11
Diameter of abrasive-holding plates	mm	550	550	550	550	550	550
Cooling water requirement	L/min	150	200	250	300	350	400
Slab polishing speed	m/min	50	50	50	50	50	50
Belt advancement motor power	kw	2.2	2.2	3	3	3	3
Number of abrasives for each plate	nr	9	9	9	9	9	9
Conveyor system forward speed	m/min	0-3 (min-max)	0-3 (min-max)	0-3 (min-max)	0-3 (min-max)	0-3 (min-max)	0-3 (min-max)
Machine overall length	mm	6560	7740	8920	10100	11280	12760
Total installed electrical power	kw	74	96	120	142	164	187
Slabs min. processable thickness	mm	20	20	20	20	20	20
Approx. Weight	Kg	11200	12800	14400	15000	17600	20000
Machine overall height	mm	2100	2100	2100	2100	2100	2100
Slabs max. processable thickness	mm	100	100	100	100	100	100
Number of polishing heads/honing units	nr	6	8	10	12	14	16
Machine overall width	mm	3000	3000	3000	3000	3000	3000
