EVO 6608/2450 for pressing ceramic tiles
FOB Price:
Type:
Artificial Stone MachinesPressing Machine
Usage:
Artificial Stone
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Eatablished :Feb 01,1961
Main Product:
Ceramic Tile-Slab Machinery, Artificial Stone Plant Machinery|
Machinery Function Features

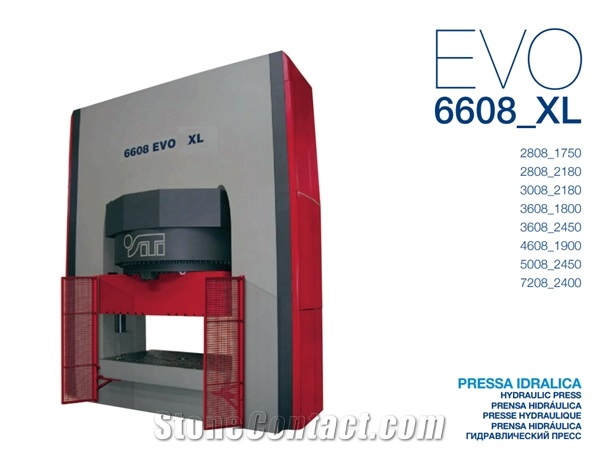

Hydraulic press EVO 6608/2450 has been designed for pressing ceramic tiles with max pressing force of 6608 tons and span of 2450.
Maximum pressing force 6600 / 64.7 Tons / MN
Maximum service circuit pressure 160/16 Bar / Mpa
Maximum circuit pressure 350/35 Bar / Mpa

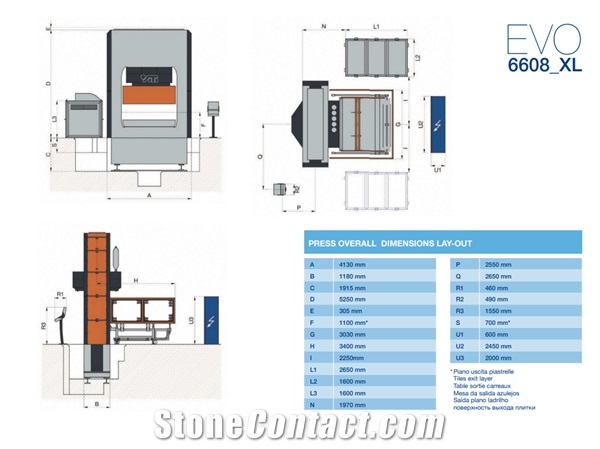

span between the columns 2450 mm
Max distance between bed and crossbar 750 mm
Maximum travel of mobile crosspiece 250 mm
Maximum extraction force (Syncro) 22.5 / 0.22 Tons / MN
Maximum thickness of the soft 75 mm
Number of lifting push points 4
Number of presses per cycle 1-2-3-4
Number of cycles / min up to 16 cycles / min
Hydraulic circuit oil quantity 2600 Kg
Main motor power 160 kW
Press auxiliary services power 15 kW
Power for heating molds 30 + 30 + 15 kVA
Net weight (excluding molds) 159 Tons
Maximum loading width 2230 mm
Technical Data
Parameters |
Unit |
EVO 6608/2450 |
Pressure |
T |
64,7 |
Number of presses per cycle |
nr |
1-2-3-4 |
Max. thickness of the soft |
mm |
75 |
Max. travel of mobile crosspiece |
mm |
250 |
Total power |
kw |
160 |
Max. slab width |
mm |
2230 |
Press auxiliary services power |
kw |
15 |
Max. service circuit pressure |
MPa |
16 |
Max. circuit pressure |
MPa |
35 |
Max extraction force (Syncro) |
T |
0.22 |
Number of lifting push points |
nr |
4 |
Hydraulic circuit oil quantity |
kg |
2600 |
Power for heating molds |
kVA |
30 + 30 + 15 |
Span between the columns |
mm |
2450 |
Max distance between bed and crossbar |
mm |
750 |
Approx. Weight |
T |
(excluding molds) 159 |
