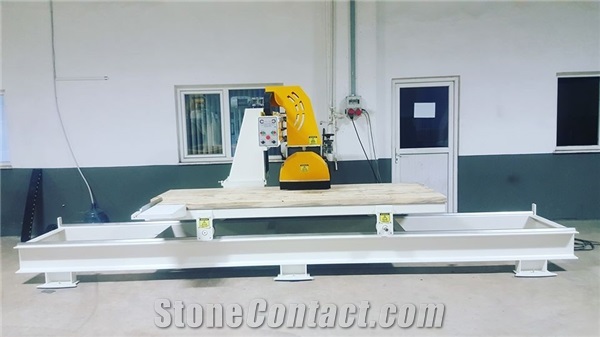

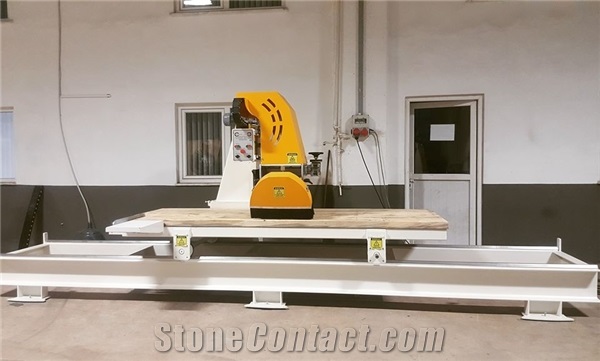

M-1500 Manual Edge Cutting Machine

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage: Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Mar 01,2022

Main Product:

Mermer Makina, Alın Cila Pah Makinası, Köprü Plaka Kesme, Yan Kesme Makinası, Cnc Router , Plaka Cila Makinasi|

Contact supplier

Start Order

  • Overview
Machinery Function Features
* Cutting course 3400 mm. * Saw Diameter 350-400- mm. * Saw engine 7.5 / kv 1400/2800 * Wagon movement / Manual * Wagon dimensions are 3000 x 1300 mm. * Up and down motor 0.75 kv * Reciprocating motor 0.75 kv * Slide action / FORWARD BACK Liner Slide * Steel Npu Chassis * Machine length - 5500 mm. * Machine width 2500 mm. * Machine height 2000 mm. * Approximate weight 2000 kg. - 2300 kg. * Wagon manual * Total Required Power 10 KW * Required Water Flow 8 Lt./Min. * 45 degree cut is with flywheel reductor It is our Monoblock Machine mounted on a steel frame. Resistant Flawless Cutting Accuracy Unique Design. All Steel Used on the Side Cutting Machine with Wagon, Anti-Rust Epoxy Paint Reinforcement, Special Transmission Rail System RAIL SYSTEM IS DONE WITH OPEN AND CLOSED MANUFACTURING BY REQUEST. Our machine is with Slide Movement (Up Down) / Reducer Our machine is with Slide Movement (Y axis) / Reducer Our machine is WAGON Movement (X axis) / Manual Our machine has 45 DEGREES cutting feature. Machine Slide System is the Linear Guiding System Preferred for CNC Use. Marble Side Cutting
Technical Data
Parameters
Unit
M-1500
worktable size
mm
3000 x 1300
Machine height (H)
mm
2000
Discs diameter
mm
350-400
Disc motor power
kw
7.5
Installed electrical power
kw
10
Cooling water (minimum pressure 1.5 bar)
L/min
8
Forwarding/Spindle motor power
kw
0.75
Approximate weight
Kg
2000 - 2300
Machine length (L)
mm
5500
saw speed
rpm
1400/2800
Machine width (W)
mm
2500
Oleodynamic station motor power
kw
0.75
Discs number
nr
1
