CNC Bridge Cutting Machine

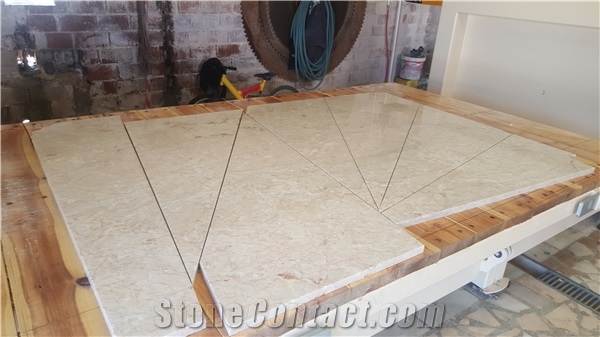

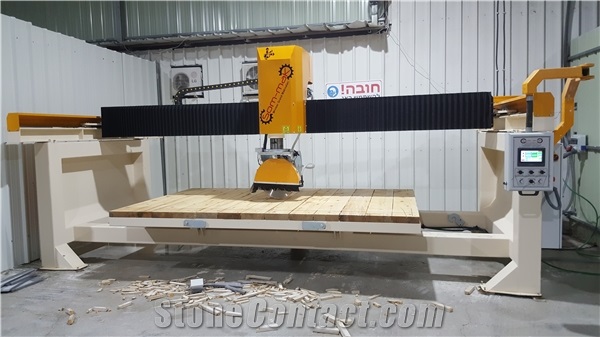

CNC Bridge Cutting Machine Circular cutting, Cross Cutting, french balcony 45 degree angle cut to marble, Sink Cutting and profile scanning operations. CNC Marble Bridge Cutting Machine In this machine, all axes are controlled by a servo motor. Servo motors are also coupled to backlash-free servo gearboxes. Thus, 0.1mm cutting precision has been achieved. Linear guideways are used as guideways, the forward axis drive operation; It is provided with precision, hardened, ground rack and pinion gear. The machine control system is CNC-based and supports G codes obtained by CAD-CAM in complex shapes. Since the cutting angles are provided from the rotary head in this type of machines, it is very easy to obtain the specified cutting processes. Main Motor: 15 KW (0-3000 Min.) Speed ​​Drive Bridge Motion Motor: 1,5 KW Servo Driver Saw Horizontal Motor: 1,5 KW Servo Driver Up Down Motor: 0.75 KW 1500 Min. 360 Degree Head Motor: 0.75 KW Servo Driver Hydraulic Tap Motor: 1,5 KW 1500 Min. 45 Degree Tilting: 1.5 KW Servo driver Disc Diameter: 350 mm 500mm Cutting Width: 1900 mm Cutting Length: 3500 mm Machine Width: 3000 mm Machine Length: 5800 mm Machine Height: 2750 mm Machine Weight: 4500 mm
