IK-3050-700 5-Axis Marble & Granite CNC Bridge Cutting Machine
FOB Price:$45000-50000
Supplier
Eatablished :Dec 26,2014
Main Product:
5 Axis CNC Bridge Saw, 4+1 CNC Bridge Saw , 45° Miter Cutter, Stone CNC Engraving Machine, Cutting And Edging Work Center, Trepanning Machine|
5 Axis CNC Bridge Saw

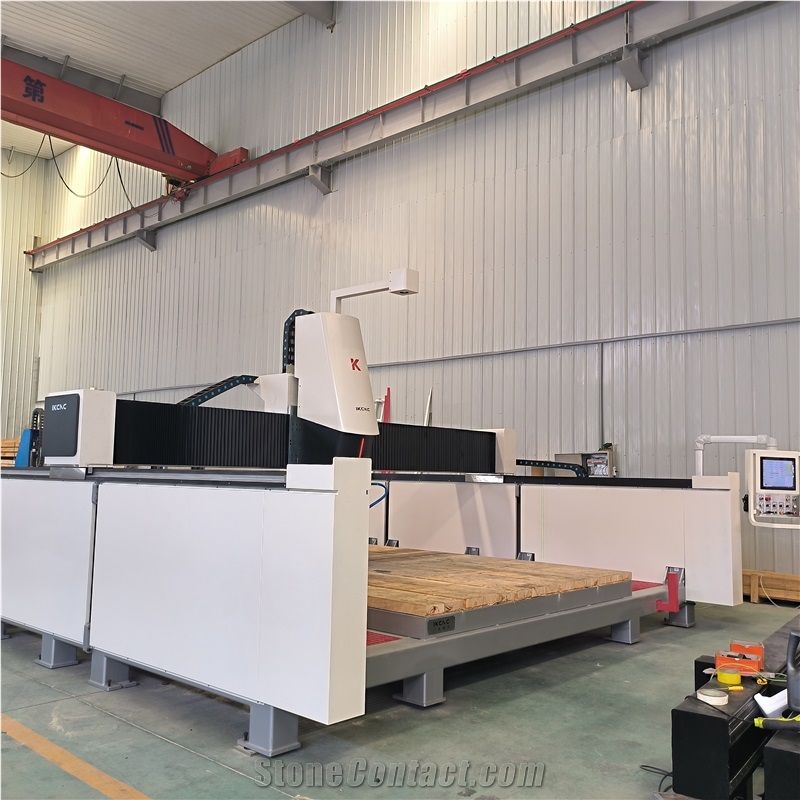

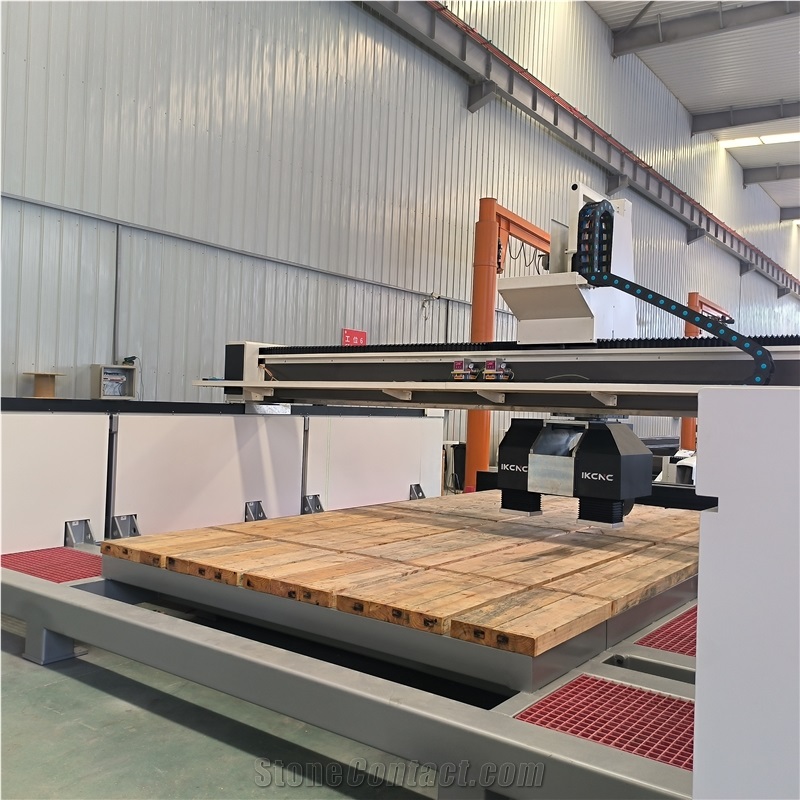

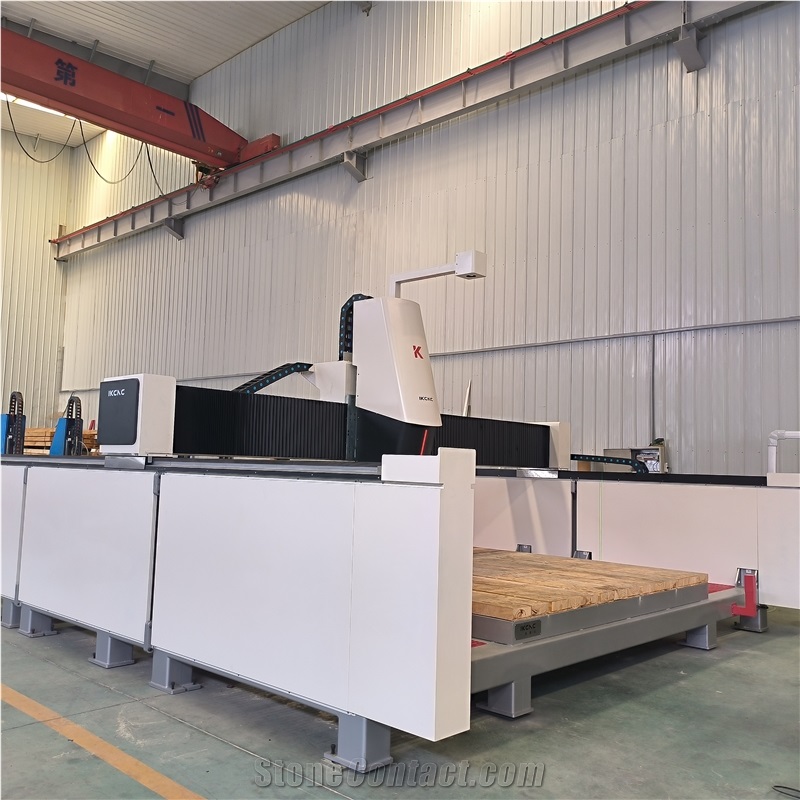

The machine is an integrated five-axis bridge cutting machine Ik-3050, it is much more big than IK 3520 and it's customized. Five-axis bridge cutting machine is for the different specifications of the plateand a variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval,diamond, circle, rim of horse's belly, chamfer at anyangle, special-shaped copying and engraving). lt has the advantages of fast speed, high cutting precision, simple and intelligent operation, suitable for cutting slab, marble, granite, quartz stone, and other stone processing. lt is the first choice of project and stone processing enterprises.
Parameters |
Unit |
Ik-3050 |
Machine width |
mm |
8000 |
Max. cutting depth |
mm |
22 |
Dimensions of the work table(L×W) |
mm |
3000*5000 |
Max.width of the cut slab |
mm |
5000 |
Machine length |
mm |
6000 |
Machine height |
mm |
3300 |

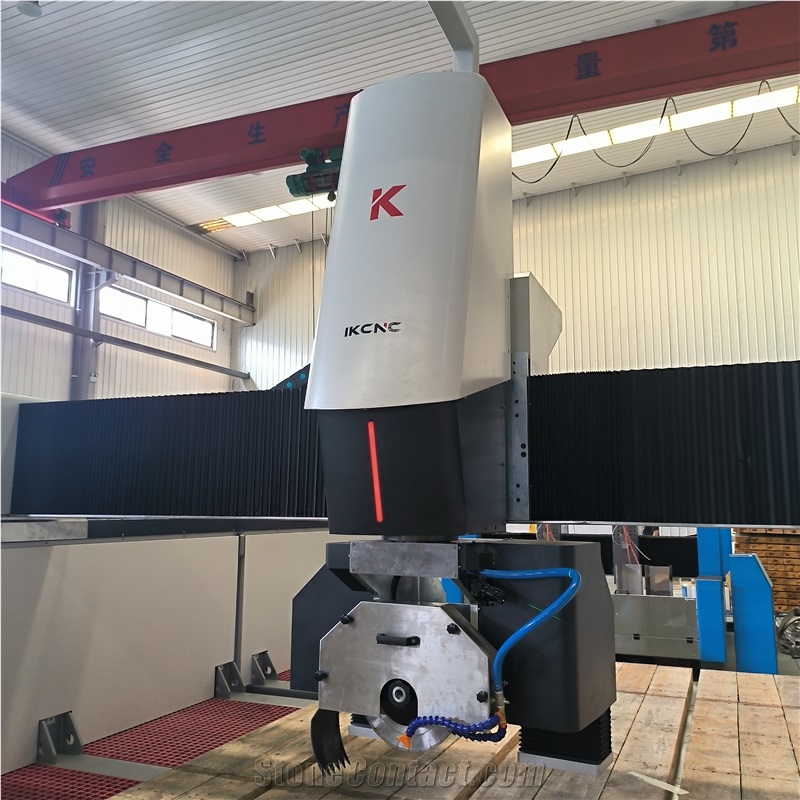

Vertical cutting spindles motor power |
kw |
7.5 |
Head raising/lowering stroke(Z axis travel) |
mm |
500 |
Max number of interpolated axes |
nr |
5 |
Bridge transversal stroke(Y axis travel) |
mm |
5000 |
Number of vertical cutting spindles |
nr |
1 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
20 |
Max.length of the cut slab |
mm |
3000 |
Worktable turn-over degree |
° |
0-90 |
C axis blade rotation |
° |
360 |
Worktable Weight |
T |
8 |
Max. workable thickness |
mm |
22 |

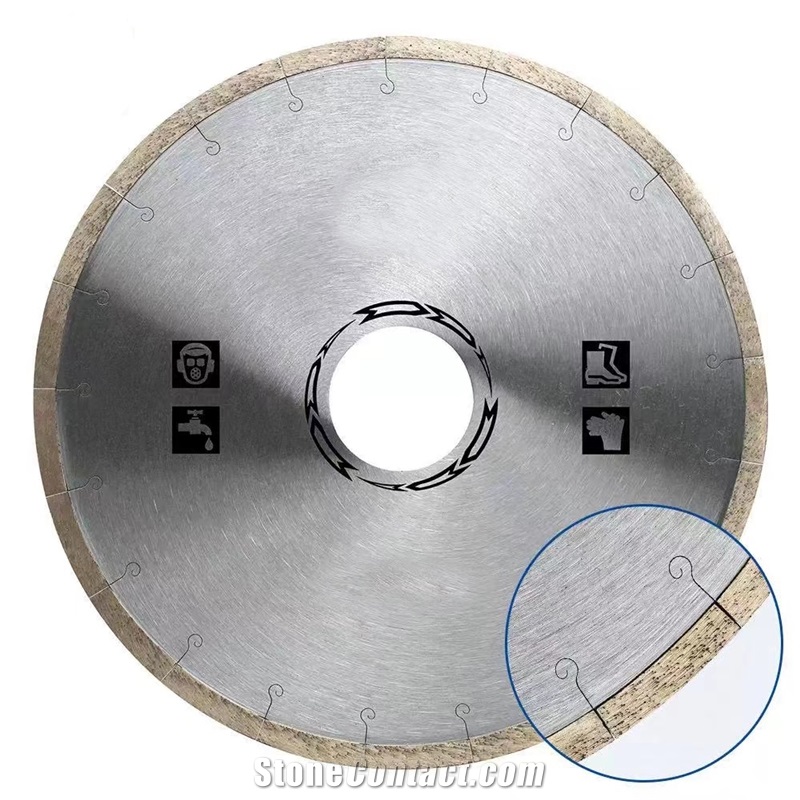

Disc diameter |
mm |
220 |
Head motor power |
kw |
22 |
Disc motor power |
kw |
35 |
Max. liftable weight with all the vacuum cups activated |
Kg |
200 |

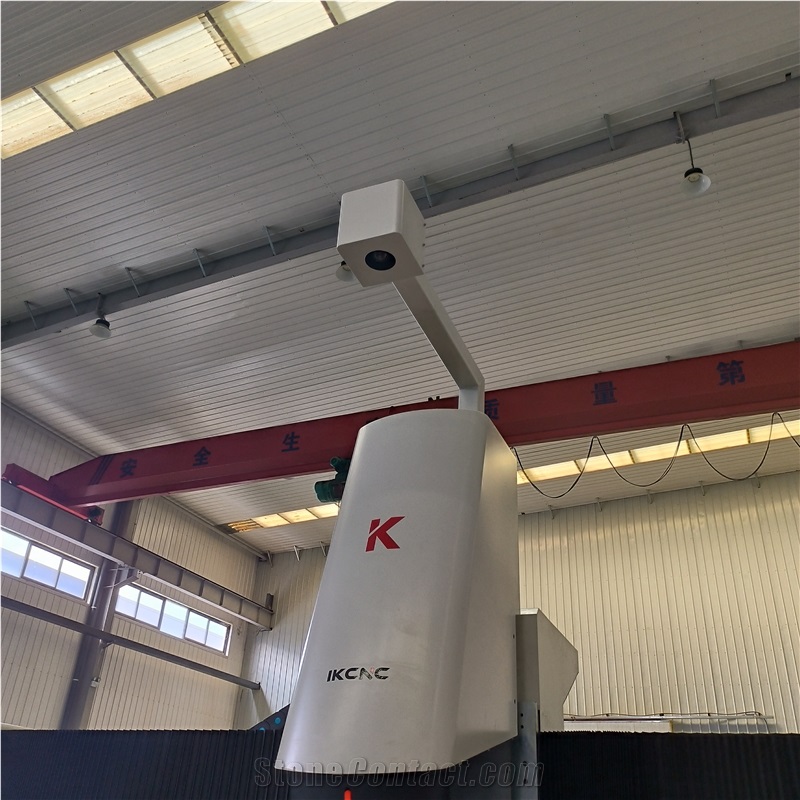

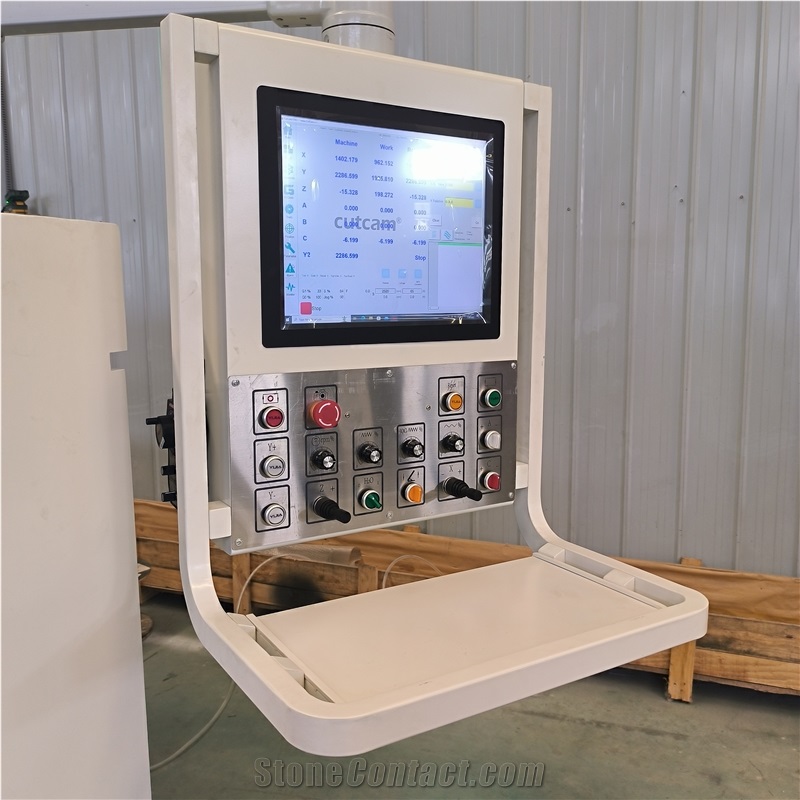

The system: CUTCOM
System function: Includes photo, intelligent layout, automatic adsorptionfunction.
Features: efficient andconvenient,save time andlabor
3D copying features: All kinds of lines are generated directly in the software, Simple and intuitive, no programming required
Custom function: Various sizes can be customized according to customer needs, and complex graphics can be cut by entering simple parameters. No need to import CAD drawing, simple and convenient, greatlyimprove production efficiency.

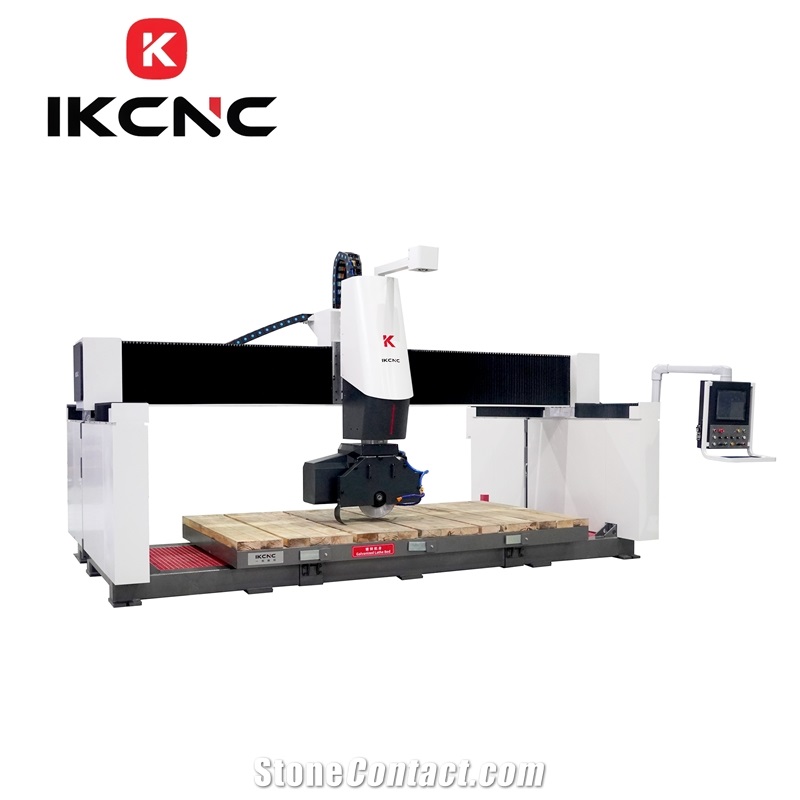

Ikcnc 5 Axis CNC Bridge Saw
The machine is an integrated five-axis bridge cutting machine, for the different specifications of the plate and variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval, diamond, circle, rim of horse's belly, chamfer at any angle, special-shaped copying and engraving). It has the advantages of fast speed, high cutting precision, simple and intelligent operation, Suitable for cutting slab, marble, granite, quartz stone, and other stone processing. It is the first choice of project and stone processing enterprises.
