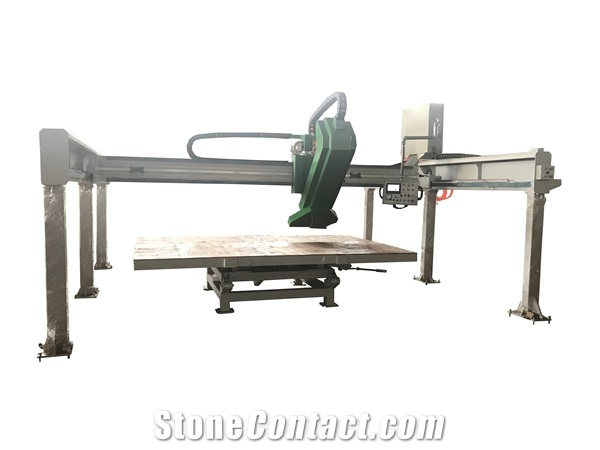

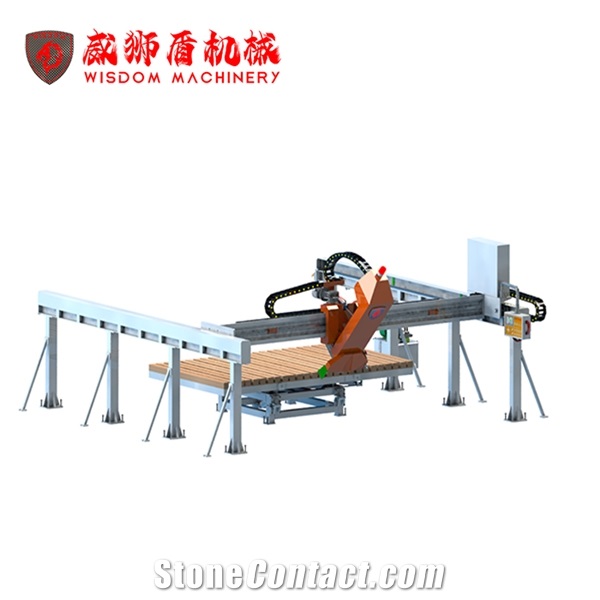

WSD500 countertop bridge saw for workshop

Name: WSD500 countertop bridge saw for workshop
Brand: Fujian XinAn Machine Co., Ltd.
SKU: 4284
Price: 13000 USD
Availability: InStock

FOB Price:$13000-18000

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Artificial Stone, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25 Days

Warranty:12 Months

Install and Guarantee:Remote guidance installation

Maintenance:Remote troubleshooting

Trade Terms

Delivery Details: FOB,CFR,CIF,EXW

Payment :

Supplier

Fujian XinAn Machine Co., Ltd.

Wisdom

China

Eatablished :Dec 27,2001

Main Product:

Bridge Saw, Stone Cutting Machine, Stone Polishing Macine, Wire Saw|

Contact supplier

Start Order

You may also like

Middle Block Cutting Machine(Slide Type)

Infrared (Head Chamfering) Bridge Type Stone Cutting Machine

QCYI-700X Tiltable Bridge Cutting Machine

Visual Intelligence Bridge Cutting Machine For Cutting Slabs

Bottom Granite Slab Shaving Machine DFQ-B500

Product Detail
Company Profile

Overview

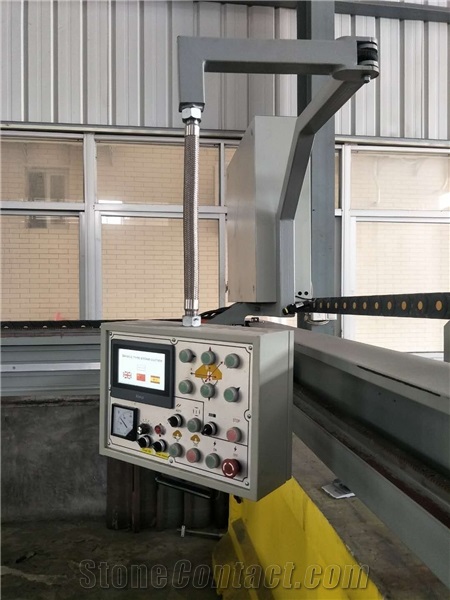

Components
Trade Terms

Machinery Function Features

Less is more Simple type, save cost with 45 degree miter cutting

Technical Data

Parameters	Unit	WSD500
Compressed air pressure	bar	8
Total power	kw	17.65
Main motor power	kw	11
Max. working dimensions(L×W×H)	mm	3200200080
Cooling water requirement(1.5 bar min. pressure)	L/min	10
Max. thickness cutting capacity	mm	80
Machine height	mm	2900
Y axis Stroke	mm	2000
Blade tilting angle	°	45
Blade diameter	mm	350-500
Machine length	mm	6100
Cutter rotating angle	°	0
Working table tilting angle	°	85
Z Axis Stroke	mm	80
X Axis Stroke	mm	3200
Worktable Weight	Kg	1000
Working table dimensions(L×W)	mm	3200*2000
Working table rotating angle	°	360
Approximate weight without table	Kg	2800
Machine width	mm	5200
