Saw Blade Laser Welding Machine / Laser Welding Machine For Saw Blade

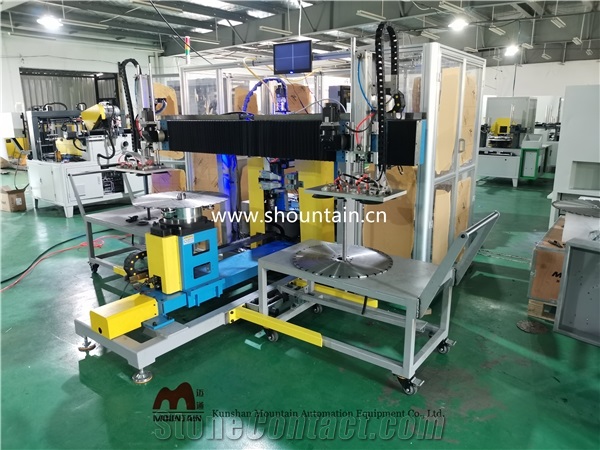

Auto laser welding machine for saw blade, 180-600mm, 180-900mm, 180-1200mm and 180-1800mm Auto laser welding machine with auto loader, auto welding. COMPANY INFORMATION Kunshan Mountain Automation Equipment Co., Ltd. is a high-tech enterprise specializing in R&D, manufacturing and marketing of     automation equipment in the industry of DIAMOND TOOLS. Over the years, SHMOUNTAIN has researched and developed a series of automation equipment together with experts and professors from Northeastern University, and won tens of national patents in which many patents have filled up the blank in the industry of diamond tools and taken the lead in the world. Our Automatic machines series including: •Laser Welding Machine series for saw blade / core drill •Grinding Machine series for Diamond Segments •Brazing Machine series for saw blade / core drill •Sharpening Machine series for saw blade / core drill •Polishing Machine series for saw blade •Sandblasting Machine series for Diamond tools •Reaming Machine Series for Circular Saw Blades/drill bit •Root Finishing Machine series for circular Saw Blades •Inspecting Instrument Serise for Diamond Tools •Automatic Production Line of Diamond Tools •Other Products Meanwhile, SHMOUNTAIN undertakes the customization of various kinds of non-standard equipment. In the business philosophy of Quality First, Customer Supreme, SHMOUNTAIN constantly introduces advanced technologies and production management philosophy at home and abroad by virtue of exquisite technologies in the automation field of diamond tools, and individually designs and manufactures diamond tool automation equipment for customers; therefore, SHMOUNTAIN have been recognized by many famous manufacturers in China and woldwild, and established a good long-term cooperative relationship with them. A series of SHMOUNTAIN diamond tool automation equipment have been well received by some international customers; SHMOUNTAIN products are sold to China, Italy, USA, Thailand and other Southeast Asian countries, Iran and other countries. During constant rapid development, we has taken many first places of whole world diamond tool automation equipment in the industry. WELDING MACHINE Series MLW-1-2 Automatic Laser welding Machine for diamond saw blade Automatic machine for laser welding the diamond segment on blank. Laser welding machine for diamond saw blade diameter 180-1200mm, upto 1800mm SPECIFICATION: HMI + computer modification system+ alarm system+ PLC control Touch screen: Easy Storing and Setting of welding conditions such as laser source power, tube diameter, segment length and so on Language: Chinese and English (other language option) Saw blade loading: auto loading for 600mm, and above 600-1200mm manual loading Belt conveyor: two belts for segments transport, one for drop segment and one for normal segment Grippers : auto take segment and precise segment position Clamps: one for blank tooth lock and one for segment lock Welding: auto operation by setted datas in system Laser source brand: MAX brand or as option Cooling: air + cooling water(cooling chiller) FEATURE AND FUNCTION: POWER SUPPLY 220/380V, 3PHASES, 50/60Hz or customer required POWER CONSUMPTION ≤8 KW AIR PRESSURE 0.4-0.6 MPa SAW BLADE DIAMETER 180-1200mm LASER SOURCE 2KW or 3KW fiber laser SEGMENT FEEDING   Auto feeding + Belt transport. (vibration bowls as option) TOOTH POSITION Auto by reflective light switch+Servo motor WELDING ACCURACY ≤0.05mm (mechanical accuracy) OVERALL DIMENSION LxWxH  3000MM*2000MM*1800MM WEIGHT Approx. 1200kgs PRODUCTIVITY 4s ~ 6s per segment FAQ 1. What is the welding accuracy of the saw blade welding machine? ---The mechanical accuracy of the laser welding machine for saw blade is between 0.01-0.05mm. 2.  Is drop segment available for welding? ---Drop segment welding is no problem, pls send us the segments sample or drawing, we will make the critical tools for them. 3.  Which type of laser used for the laser welding machine for saw blade? ---Fiber laser 2kw or 3kw as option 4.  How can I select a suitable laser welding machine for saw blade? ---You can tell us your requirements of  saw blade welding machine, and other parameters of your saw blades, we will give you professional suggestion. 5.  Is the company's technology for producing saw blade laser welding machine mature? ---Sure, our company have more than 50 technicians, and they have more than 20 years working experiences. And the laser welding machine have been used in many different customers in many countries. 6.  Can I  contact you if I have any questions? ---Sure, please feel free to contact us if you have any questions. 7.  What is the payment term?                           ---L/C, T/T 8.  Where is the loading port? ---Shanghai, China. 9.  How we get the machine installed and operated for the first time? ---We offer the machine's operation manual for the machine installation and operation. Also could send our engineer to your factory for the installation assistance and operation training. 10. Where is the address of the factory? ---Our factory is located in Kunshan city, Jiangsu province, China.
