MLW-2-1 Automatic Laser Welding Machine For Diamond Core Drill Bit
FOB Price:$-1
Type:
Stone Factory MachinesStone Handling, Loading MachinesStone Tools Machinery
Usage:
Granite, Marble, Basalt
After-Sale
Lead Time:
60 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :May 12,2017
Main Product:
Saw Blade Polishing Machine, Brazing Machine For Diamond Tools, Grinding Machine For Diamond Segment, Sharpening Machine For Diamond Saw Blade, Sandblasting Machine For Diamond Drill Bit, Saw Blade Laser Welding Machine|
Machinery Function Features
WELDING MACHINE Series

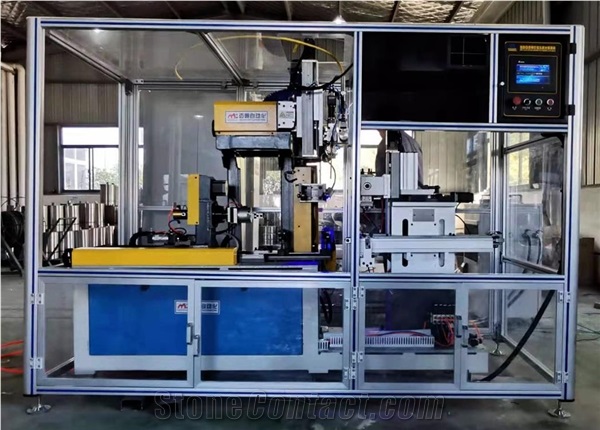

MLW-2-1 Automatic Laser welding Machine for diamond core drill
Automatic machine for laser welding the diamond segment on tube.
Diameter of core drill 20-250mm and length 500mm, upto 600mm.
Ring segment+normal segment welding
SHMOUNTAIN LASER WELDING MACINE FEATURES & FUNCTION
POWER SUPPLY: 220/380V, 3PHASES, 50/60Hz or customer required
POWER CONSUMPTION: ≤8 KW
AIR PRESSURE: 0.4-0.6 MPa
WELDING RANGE Diameter: φ25-300mm
Length: 150mm-600mm
LASER SOURCE 2KW or 3KW fiber laser
WELDING THICKNESS ≤4mm
WELDING ACCURACY ≤0.05mm (mechanical accuracy)
OVERALL DIMENSION LxWxH 3000MM*2000MM*1800MM
WEIGHT Approx. 1200kgs
PRODUCTIVITY 4s ~ 10s per segment
MAIN COMPONENTS
PLC: MITSUBSHI
TOUCH SCREEN: MITSUBSHI or samkoon
SERVO MOTOR: MITSUBSHI
LOW VOLTAGE APPARATUS: SCHNEIDER
PNEUMATIC COMPONENTS: AIRTEC
LM BEARING: HIWIN
LASER HEAD: WSX
FIBER LASER: MAX or RAYCUS
Technical Data
Parameters |
Unit |
Auto laser welding machine for core drill |
Machine overall length |
mm |
2750 |
Machine overall width |
mm |
2400 |
Approx. Weight |
Kg |
1400 |
Machine overall height |
mm |
2200 |
Main motor power |
kw |
less than 8kw |
Processed Stone Photos
-

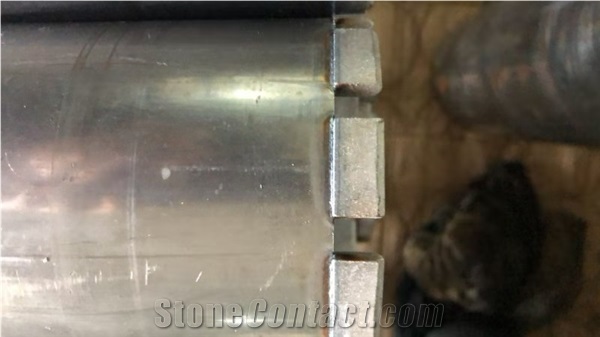

core drill
Components
-

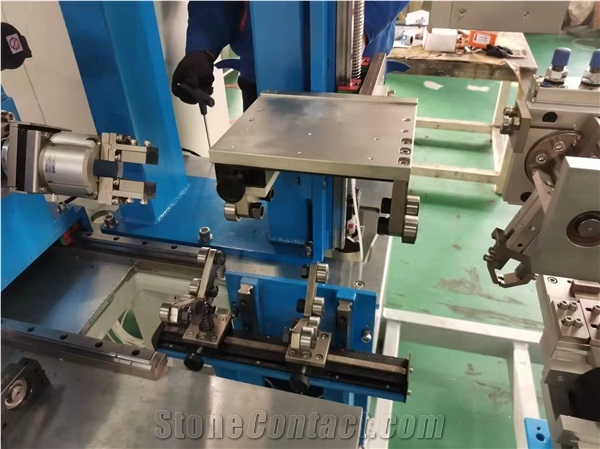

normal segment gripper
Consumables
-

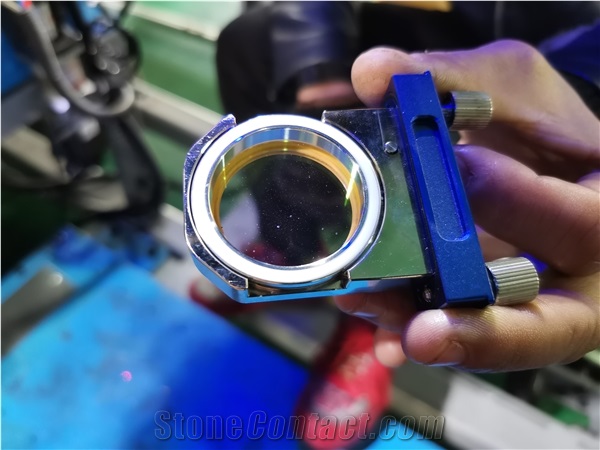

len
