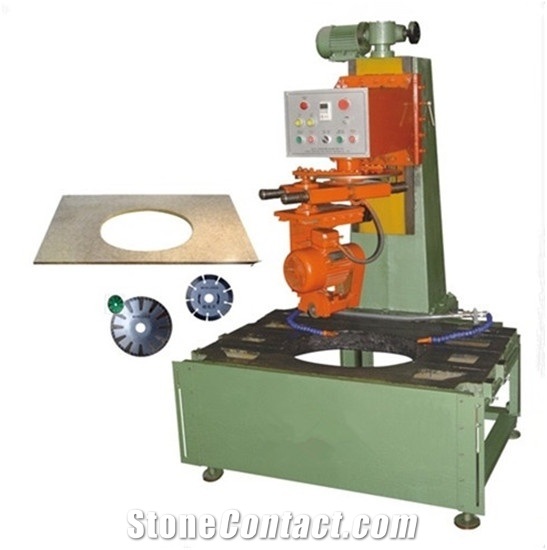

JNSC-100 Sink Hole Cutting Machine

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesSink Hole Cutting Machine
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Dec 28,2000

Main Product:

Stone Balustrade Machine, Stone Ball Machine, Stone Column Machine, Stone Engraving Machine, Stone Cutting Machine, Stone Polishing Machine|

Contact supplier

Start Order

  • Overview
Machinery Function Features
JNSC-100 and JNSP-4 are a great match for countertop processing, featuring high efficiency and excellent quality. Cutting with concave blade, JNSC-100 can work faster than similar ones cutting with finger bit. It is specially designed for cutting oval or round holes; the cutting head can move up and down automatically and rotate 360 degrees around the "shape model"; the cutting depth can be adjusted according to stone hardness. Following the cutting, JNSP-4 takes care of the remaining work: profiling, grinding and polishing, and it can process (profiling + grinding + polishing) internal or external curve edges in any shape (see customizable stone shape code 1#-38#).
Technical Data
Parameters
Unit
JNSC-100
Machine overall width
mm
1200
Machine overall height
mm
1830
Blade diameter
mm
105-125
Max. Processing Width
mm
780
Worktable size (L*W)
mm
1200*780
Blade center-worktable distance
mm
0-340
Max. processing length
mm
1200
Spindle rotating speed
rpm
0.7-1.4
Blade rotating speed
rpm
6400
Inner diameter of model
mm
100
Blade axis turning degree
°
25
Machine overall length
mm
1230
Max. cutting hole diameter
mm
≤580 (min. ≤290)
Blade bore diameter
mm
20
Main motor power
kw
2.02
