CNC waterjet cutting machine for countertops cut- 3020
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jun 28,1997
Main Product:
Waterjet Cutting Machine , Cnc Router, Polish Machine , Cutting Tools|
Machinery Function Features

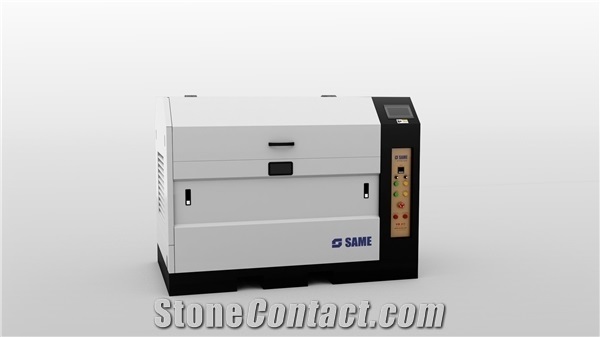

High Pressure Pump Model :50HE
Dimension(L*W*H) : 1800mmx1000mmx1400mm
Weight :1130Kg
Power rate: 37kw/50hp
Max. pressure : 420Mpa /4200bar，with low pressure piecing function and
pressure adjustable :
Working pressure: 300-350Mpa
Max. oil discharge :104L/min
Max. Flow rate : 3.7L/min
Max.Φ of orifice: 0.33mm
Power supply : 380V 50hz
Water supply : ≥15.1L/min
Water pressure : ≥0.1Mpa
Cooling system
Build-in Air cooling system no need extra chiller.
Popular in cutting: Glass, Marble, Granite, Aluminum, Copper, Steel, etc

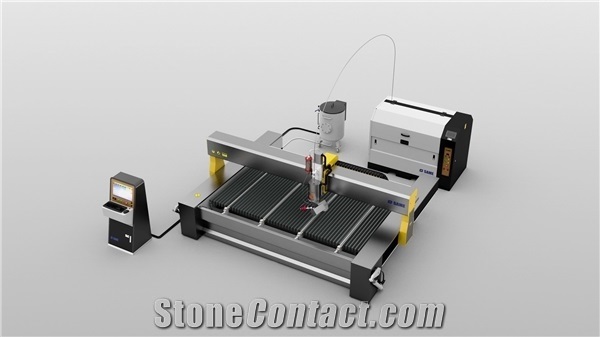

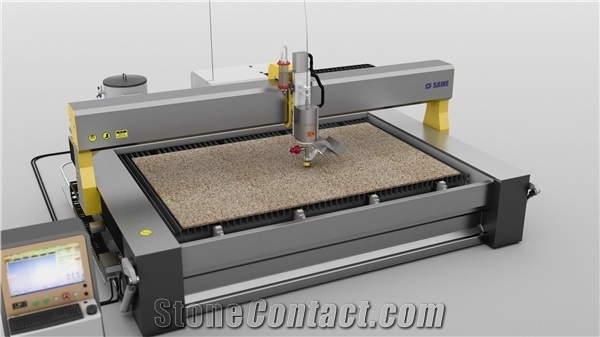

Type: 3020
Mechanical dimension : 3900*3050mm
Max.cutting range(mm) : X=3000mm Y=2000mm
Travel of Z axis : 150mm

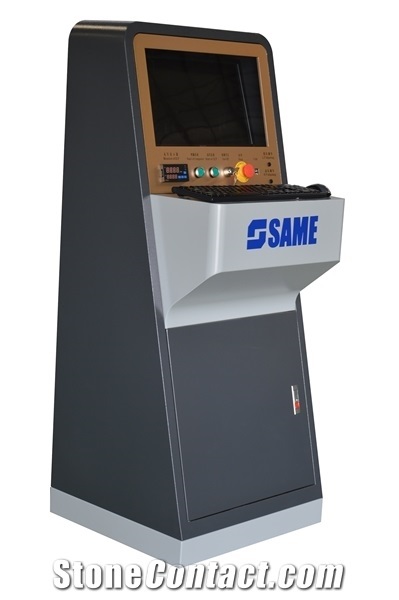

Servo system :YASKAWA / WEIHONG
Control accuracy : ±0.01mm
Cutting accuracy : ±0.1mm
Re-positioning accuracy : ±0.025mm/m
Max. moving speed : 18000mm/min
Technical Data
Parameters |
Unit |
3020 |
Max. Flow rate |
L/min |
3.7 |
Y-axes travel |
mm |
2000 |
Waterjet pump capacity |
L/min |
≥15.1 |
Machine width (W) |
mm |
3050 |
X - Y axis displacement speed |
mm/min |
18000 |
Machine length (L) |
mm |
3900 |
Waterjet pump power |
kw |
37 |
Cutting Accuracy |
mm |
±0.1 |
High Pressure Pump Model |
50HE |
|
Max. oil discharge :104L/min |
L/min |
104 |
Z-axes travel |
mm |
150 |
Power supply |
V /hz |
380V 50hz |
Re-positioning accuracy |
mm/m |
±0.025 |
Working pressure |
MPa |
300-350 |
Waterjet max pressure |
Mpa |
420 |
High Pressure Pump Size |
mm |
1800x1000x1400 |
X-axis travel |
mm |
3000 |
Water pressure |
MPa |
≥0.1 |
Control accuracy |
mm |
±0.01 |
Approximate weight(including table) |
Kg |
1130 |
Max orifice diameter |
mm |
0.33 |
Dimensions of the work table |
mm |
3000 x 2000 |
