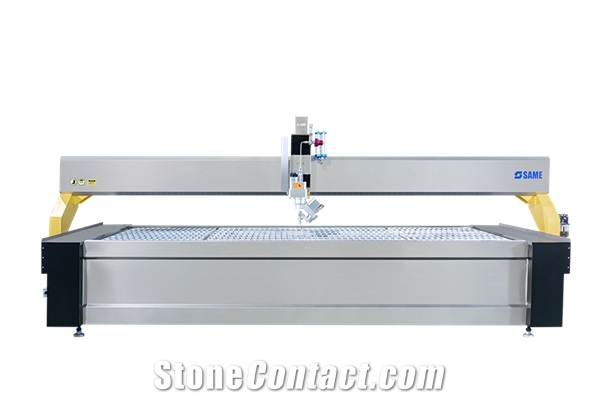

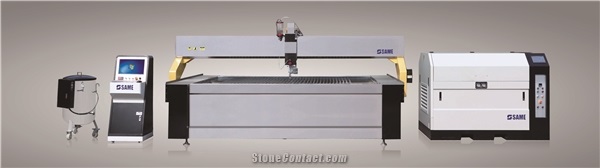

Countertops CNC waterjet cutting machine
FOB Price:$39999-59999
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesWaterjet Machines
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
40 working days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jun 28,1997
Main Product:
Waterjet Cutting Machine , Cnc Router, Polish Machine , Cutting Tools|
Machinery Function Features
CNC waterjet cutting machine for marble / porcelain/ Sintered stone countertops cut.
Max.cutting size 40000*2000mm
Max. working pressure 3600bar
Max.Flow rate 3.7Kw

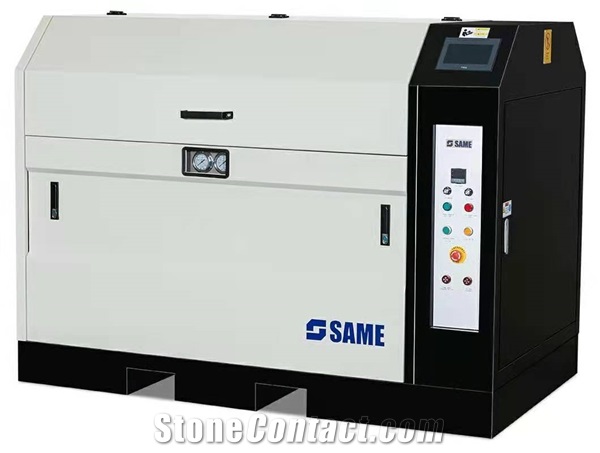

60K intensifier pump with power rate 37Kw/50hp
Auto CNC driving system of YASKAWA
One of the most powerful controller: Beckoff
With Laser mapping
With Pre cutting cost report estimate
Hydraulic loader for large sheets safe and easy loading
Technical Data
Parameters |
Unit |
50HE-4020 |
X - Y axis displacement speed |
m/min |
18000 |
Waterjet pump power |
kw |
37 |
Max orifice diameter |
mm |
0.33 |
CNC Control System |
NCstudio or Beckoff |
|
Waterjet pump capacity |
L/min |
3.7 |
Waterjet max pressure |
bar |
4200 |
Approximate weight(including table) |
Kg |
6800 |
Y-axes travel |
mm |
4000 |
Cutting Accuracy |
mm |
0.1 |
Machine height (H) |
mm |
1950 |
Machine length (L) |
mm |
6500 |
Machine width (W) |
mm |
4500 |
X-axis travel |
mm |
2000 |
Capacity of external tank for abrasive |
Kg |
200 |
Z-axes travel |
mm |
150 |
Dimensions of the work table |
mm |
4900*3800 |
Average level of equivalent sound power |
dB |
80 |
Processed Stone Photos
-
Sintered stone countertops
Components
-
AC 5axis head
¥Payment Required
Consumables
-

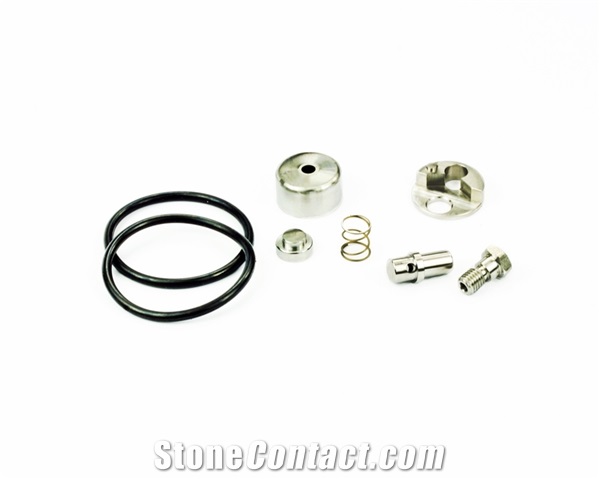

check valve repair kit
