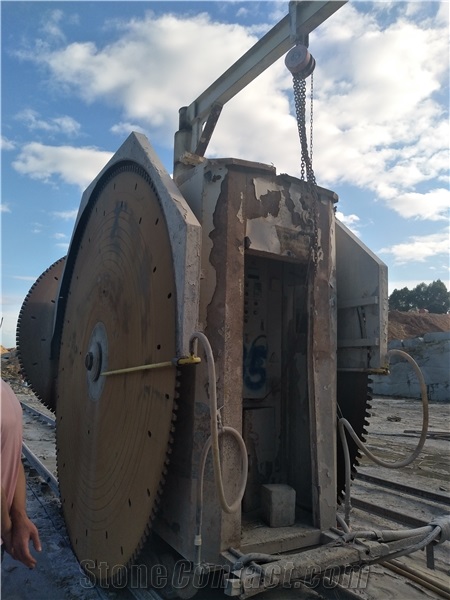

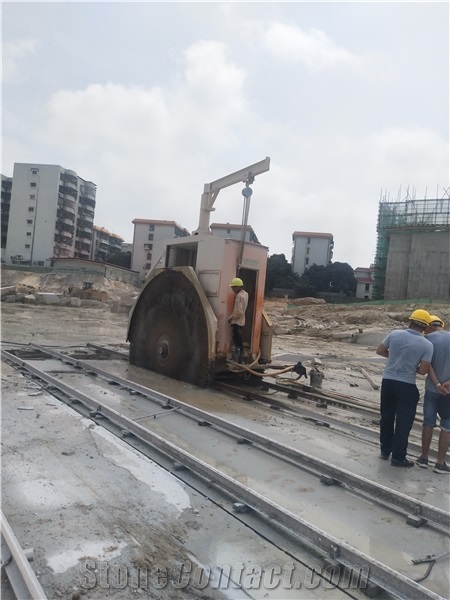

Double Blade Quarry Cutting Machine, Double Blade Mining Machine
FOB Price:$17000-23000
Type:
Stone Quarry MachinesDouble Blade Mining Machine
Usage:
Granite, Marble, Limestone
After-Sale
Lead Time:
10
Warranty:3 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features
1,It has a compact structure,with mechanical system,hydraulic system and electrical system integrated,high degree of automation,simple operation and easy-to-use feature.
2,The cylindrical guide rail is fully sealed to ensure that guide rail no pollution and machine has an original lubrication system,so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced.It is a mine quarrying machine with significantly increased comprehensive benefits.
3,Unique cylindrical guide,hydraulic elevator design and super wide chassis,so the structure is more stable and longer useful life.
4,With the super giant saw blades,it can be used for the processing of ultra-large rocks and blocks to improve out turn percentage of the mine and make full use of the mineral resource.
5,Disc saw blades cutting is more secure,environmental,lower cost and more efficient than traditional blasting mining method.
Technical Data
Parameters |
Unit |
YZK1360/1900-3600 |
Gross Weight |
Kg |
8000 |
Dimension LxWxH |
mm |
3550*1450*2850 |
Water Consumption |
m3/h |
5 |
Total Power |
kw |
118.5 |
Diameter of Blade |
mm |
2200/3600 |
Cutting Width |
mm |
1360-1900 |
Max. Cutting Depth |
mm |
1550 |
Center Distance of Rail |
mm |
1140 |
Power of Main Motor |
kw |
110 |
