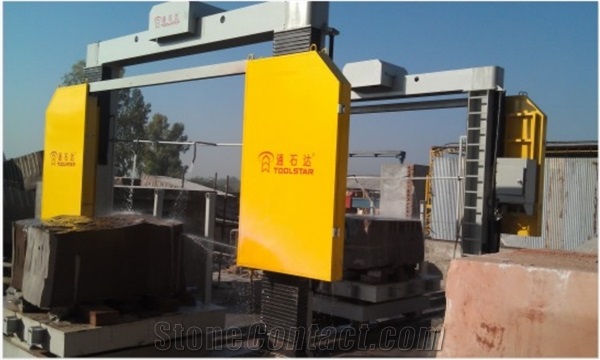

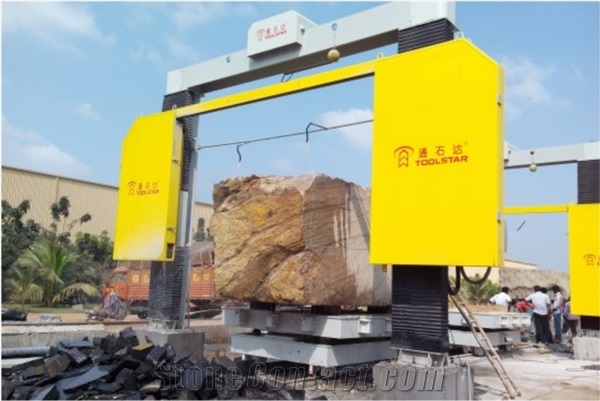

Diamond Single Wire Machine For Block Squaring

FOB Price:$23261-46292

Type: Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Usage: Granite, Marble, Limestone, Basalt, Quartzite
After-Sale
Lead Time: 3 months
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port: shenzhen- China
Delivery Details: FOB,CFR,CIF,EXW,FCA
Payment : Payment Payment Payment Payment Payment Payment
More
  • 82

Supplier

CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD

CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO., LTD
Toolstar

ChinaChina level3YR idicon

Eatablished :Sep 15,2022

Main Product:

Multi Wire Saw Machine, Block Dressing Machine, Quarry Machine, Dth Bit, Diamond Wire Saw, Dth Hammer|

Contact supplier

Start Order

You may also like
Diamond Wire Saw Dressing Machine For Stone Squaring Profiling
Diamond Wire Saw Dressing Machine For Stone Squaring Profiling
DIAMOND WIRE SAW MACHINE FOR SQUARING, PROFILING QCXE-1500-1800-2200
DIAMOND WIRE SAW MACHINE FOR SQUARING, PROFILING QCXE-1500-1800-2200
Sirma Stationary single diamond wire machine for squaring stone block, cutting slabs
Sirma Stationary single diamond wire machine for squaring stone block, cutting slabs
RSM-3500-18/21 Automatic Single Wire Saw Machine For Dressing Marble/Granite/Sandstone- Block Squaring Machine
RSM-3500-18/21 Automatic Single Wire Saw Machine For Dressing Marble/Granite/Sandstone- Block Squaring Machine
Thibaut TSH2200 Diamond Horizontal Wire Saw Machine for Block Cutting
Thibaut TSH2200 Diamond Horizontal Wire Saw Machine for Block Cutting
  • Overview
  • Components
  • Video
  • Trade Terms
  • Customer Case
Machinery Function Features

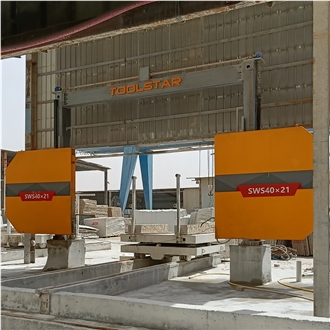

SWS Wire-Sawing Machine for Block Squaring - Single Wire Block Squaring Machine
Technical Data
Parameters
Unit
SWS20x15
SWS30x15
SWS30x18
SWS35x18
SWS35 x 21
SWS40x 21
Net weight
T
5
5.5
6.5
7
7.5
7.8
Vertical stroke
mm
1600
1600
2000
2000
2300
2300

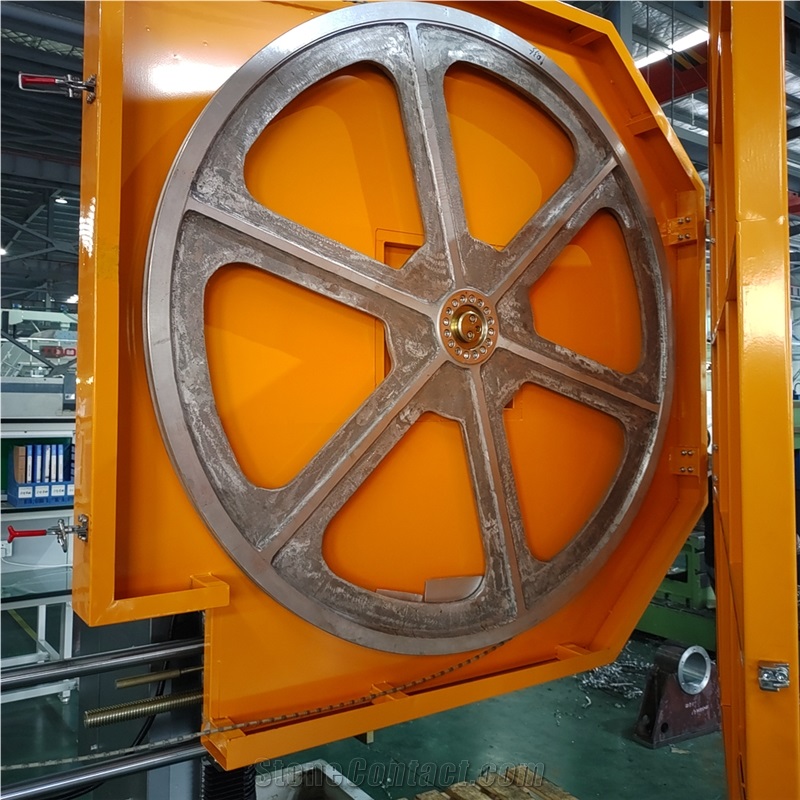

Fly wheel diameter
mm
2xΦ1550
2xΦ1550
2xΦ1860
2xΦ1860
2xΦ2230
2xΦ2230
Max.loading weight
T
20
40
40
80
80
80
Max processing size
mm
2000x1500
3000x1500
3000x1800
3500x1800
3500x2100
4000x2100
Water consumption
L/min
30
40
40
50
50
60
Main motor
kw
11
15
15
18.5
18.5
18.5
Dimension(LxWxH)
mm
6000x6000x4400
6000x7000x4400
8000x 7500x 4900
8000x8000x4900
8000x8700x5600
8000xg200x5600
Wire length
m
12.9
14.9
16.3
17.3
19.2
20.2
Horizontal speed
cm/h
1880
1880
1880
1880
1880
1880
Horizontal stroke
mm
3000
4000
4000
4000
4000
4000
Wire speed
m/s
0~40
0~40
0~40
0~40
0~40
0~40
Vertical speed
cm/h
0-2400
0-2400
0-2400
0-2400
0-2400
0-2400
Trolley dimension
mm
2000x1400
2000x1800
2000x1800
2000x1800
2500x2000
2500x2000

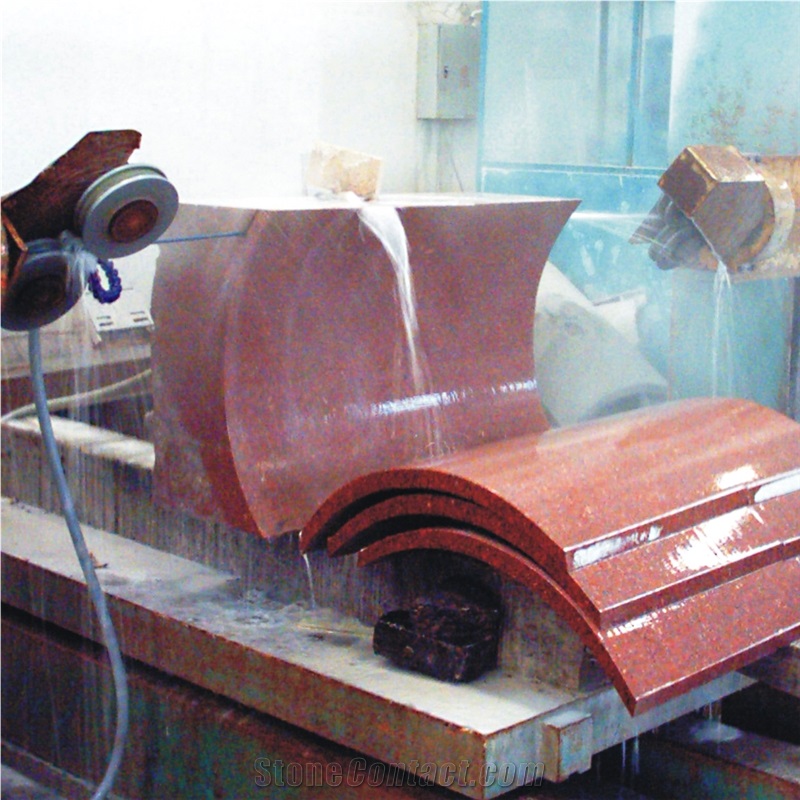

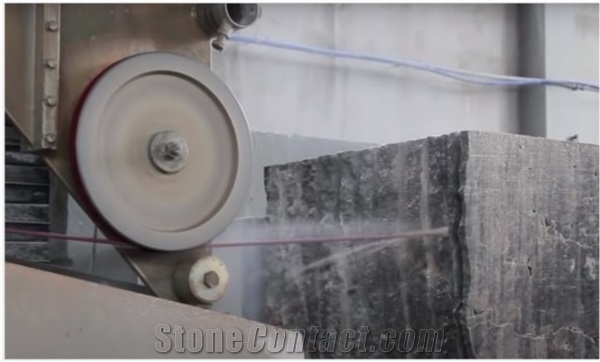

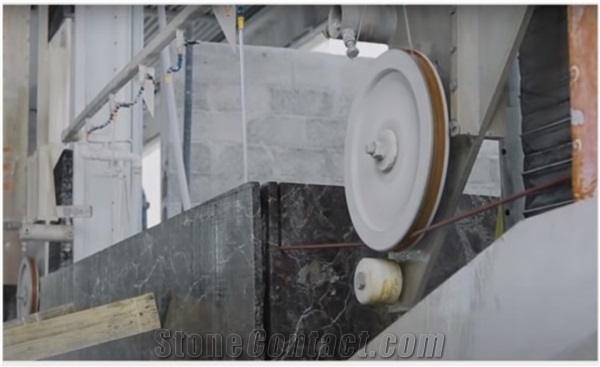

Processed Stone Photos
  • Granite

    Granite

  • marble

    marble

  • marble

    marble

  • marble

    marble

  • granite

    granite

Components

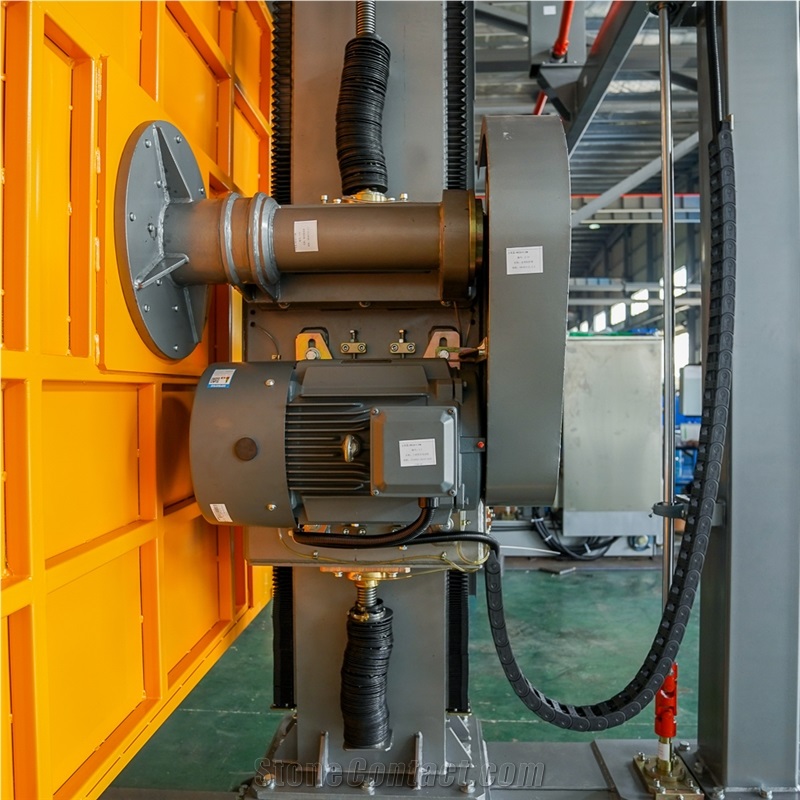

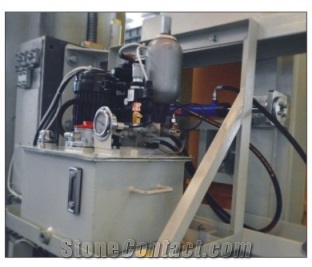

  • Main Motor and Lifting Inverter

    Main Motor and Lifting Inverter

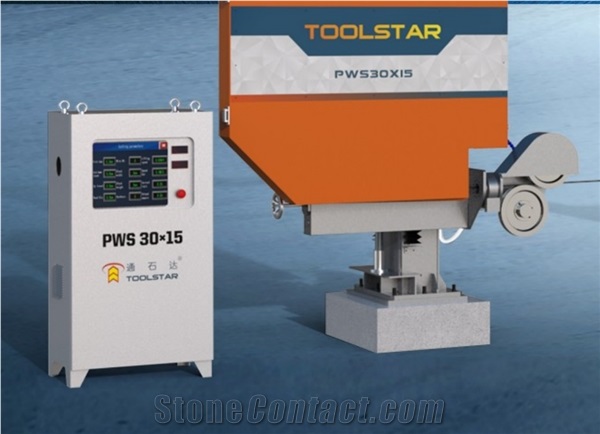

  • PLC +touch screen

    PLC +touch screen

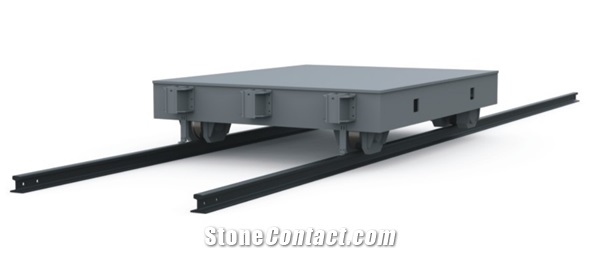

  • Standard Trolley(non-rotary)

    Standard Trolley(non-rotary)

Consumables

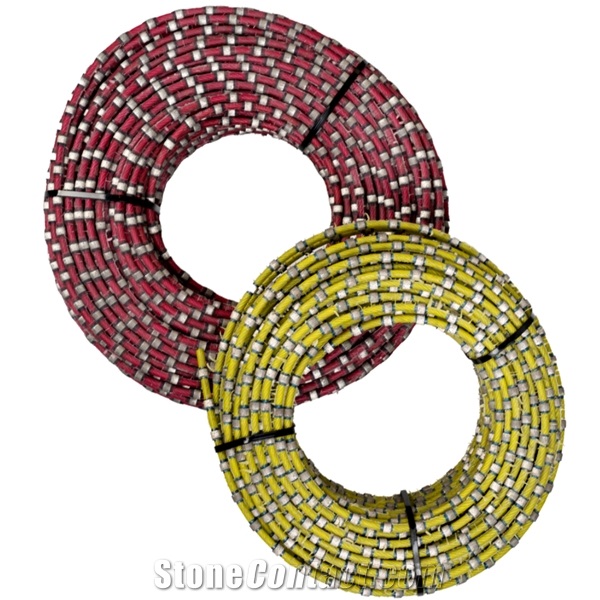

  • Squaring Diamond Wire Saw

    Squaring Diamond Wire Saw
