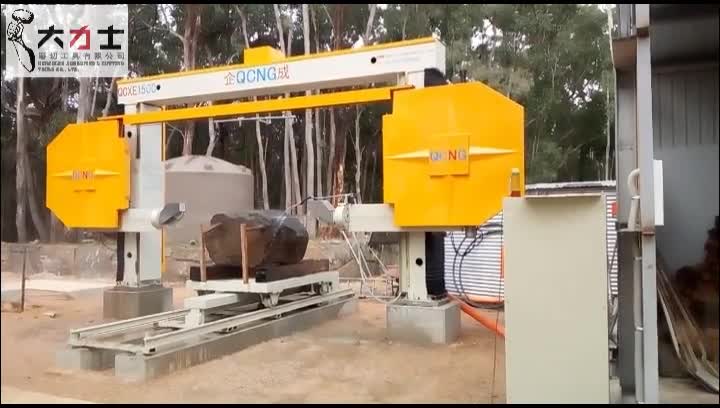

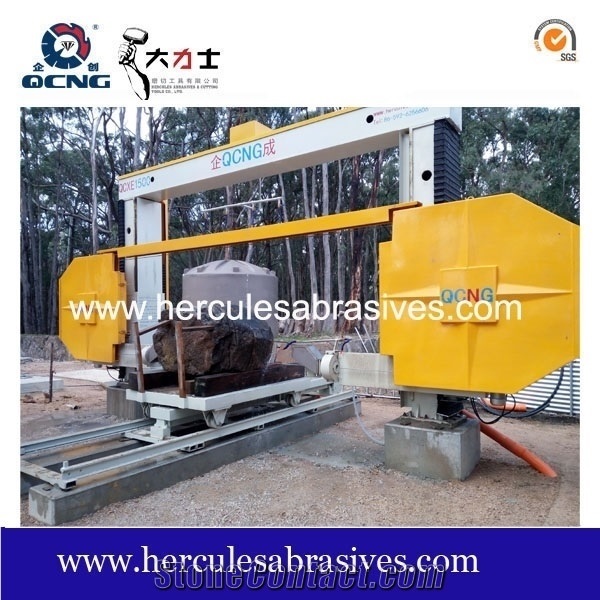

DIAMOND WIRE SAW MACHINE FOR SQUARING, PROFILING QCXE-1500-1800-2200
FOB Price:$29000-50000
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Usage:
Granite, Marble, Limestone, Onyx, Sandstone, Travertine
After-Sale
Lead Time:
3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Remote troubleshooting
Trade Terms
Port:
Xiamen- China
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Aug 03,2009
Main Product:
Diamond Wire, Diamond Segment, Diamond Saw Blade, Polishing Abrasives, Wire Saw Machine, Block Cutting Machine, Drill Bit Drill Rod Dth Hammer|
Machinery Function Features
This machine is used for cutting slabs and profiling stone. It can cut different sizes of straight slab, arc slab, solid columns and hollow columns and large-scale stone line, letter etc. We have 3 model QCXE-1500,QCXE-1800,QCXE-2200. QCXE-1500 can cut maximum block heigth 1500mm, QCXE-1800 can cut maximum block heigth 1800mm and QCXE-2200 can cut maxium block heigth 2100mm, this is the main difference, other functions are the same.
Technical Data
Parameters |
Unit |
QCXE-1500 |
QCXE-1800 |
QCXE-1800 |
Wire-driving unit rotation |
Gradi Degrees |
no |
no |
360° |
Block-holding trolley travel |
mm |
2300 |
3500 |
3500 |
Horizontal travel of the wire-driving unit |
mm |
2300 |
3500 |
3500 |
Block max. widht |
mm |
3200 |
3500 |
3500 |
Overall Height |
4 |
3800 |
4800 |
5200 |
Overall dimensions (without perimeter fencing) lenght |
mm |
7500 |
8800 |
9800 |
Max. inclination of the wire-driving unit |
Gradi Degrees |
no |
no |
no |
Block max. height |
mm |
1500 |
1800 |
2100 |
Max. span for horizontal passage between the wire driving pulleys |
mm |
3300 |
3600 |
3600 |
Min. water pressure required |
bar |
25 |
25 |
25 |
Total installed power |
KW |
19.38 |
19.38 |
24.03 |
Approximative Weight |
kg |
7000 |
10500 |
14000 |
Wire actuating motor power |
KW |
11 |
11 |
15 |
Block length |
mm |
2000 |
2000 |
2000 |
Block-holding trolley dimensions |
mm |
1360x2000 |
1800x2000 |
3000x2000 |
Speed of wire lifting/lowering |
mm/h |
0-1800 |
0-1800 |
0-1800 |
Total water requirements |
l/min |
50 |
50 |
50 |
Wire peripheral speed |
mm/sec |
0-40 |
0-40 |
0-40 |
Diameter of new diamond wire |
mm |
7.3~11.0 |
7.3~11.0 |
7.3~11.0 |
Block max. weight |
kg |
20000 |
30000 |
50000 |
Overall Width |
4 |
6000 |
6800 |
7000 |
Diamond wire length |
mm |
18100 |
19300 |
21250 |
Processed Stone Photos
-

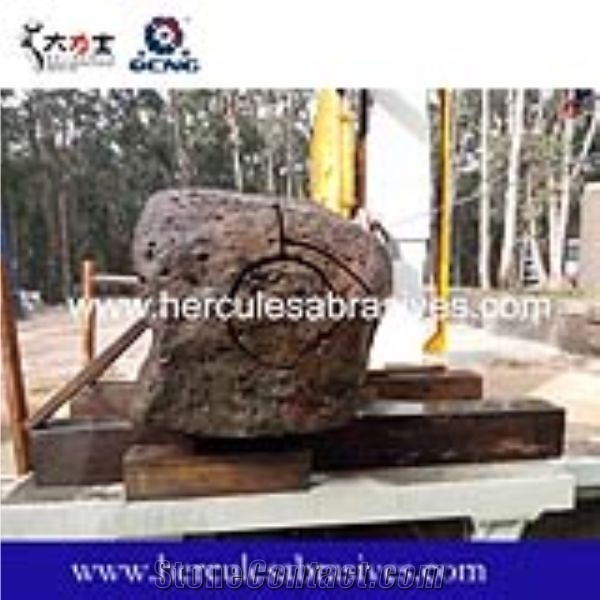

profiling
-

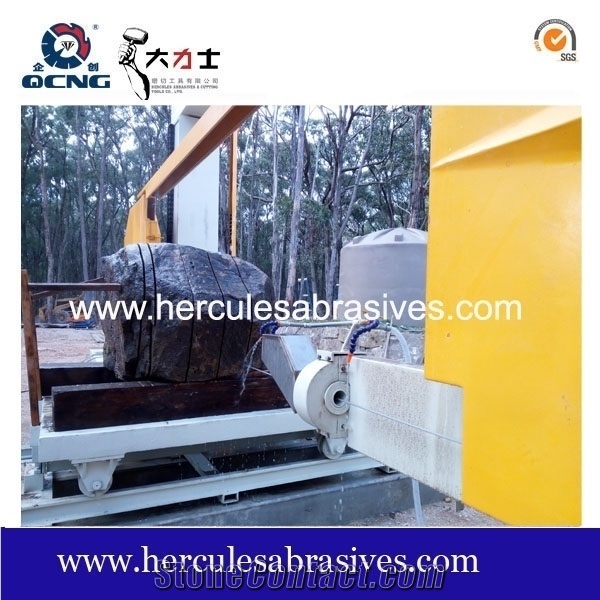

slab cutting
Components
-

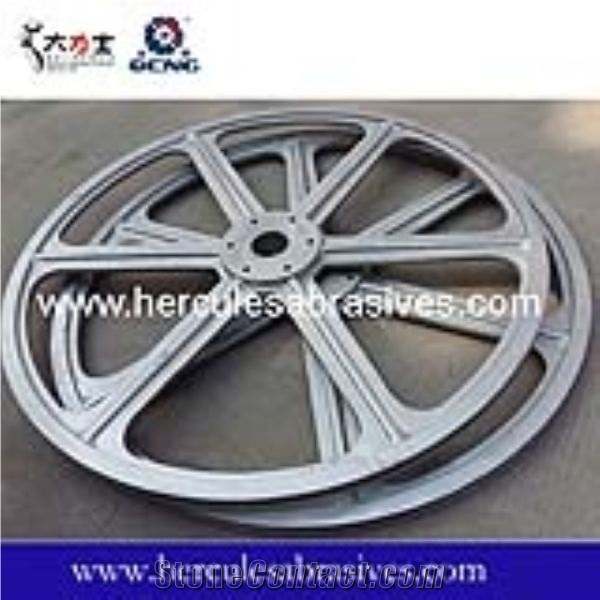

flywheel
¥Payment Required -
main machine part
¥Payment Required -

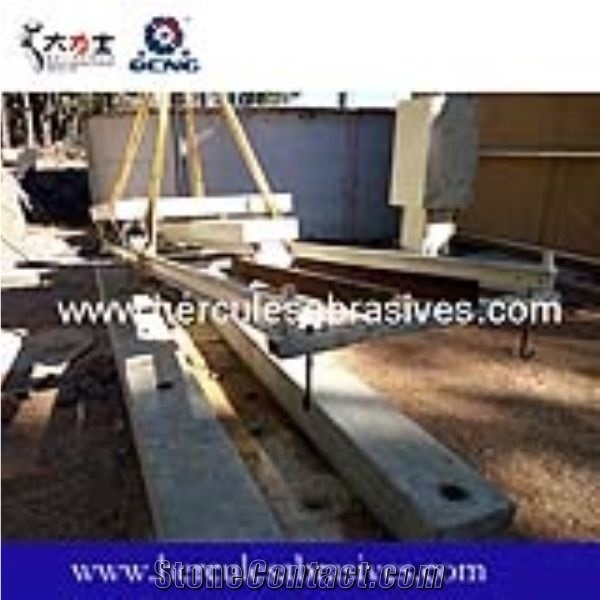

Trolley
¥Payment Required
Consumables
-

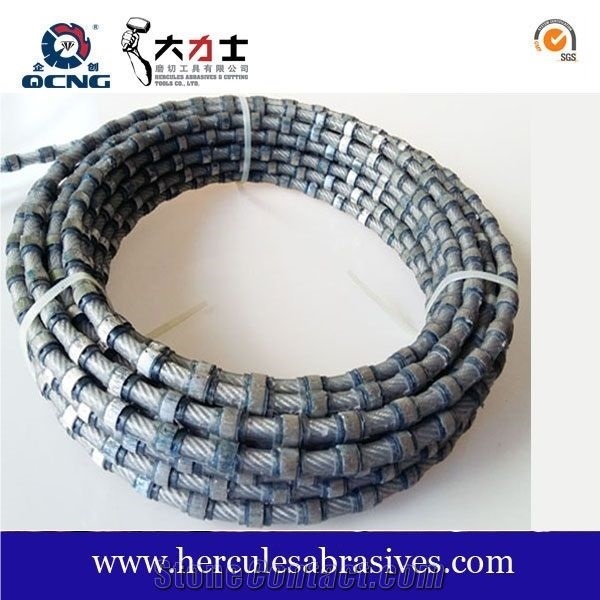

Diamond wire 8.5/8.8/10.5/
-

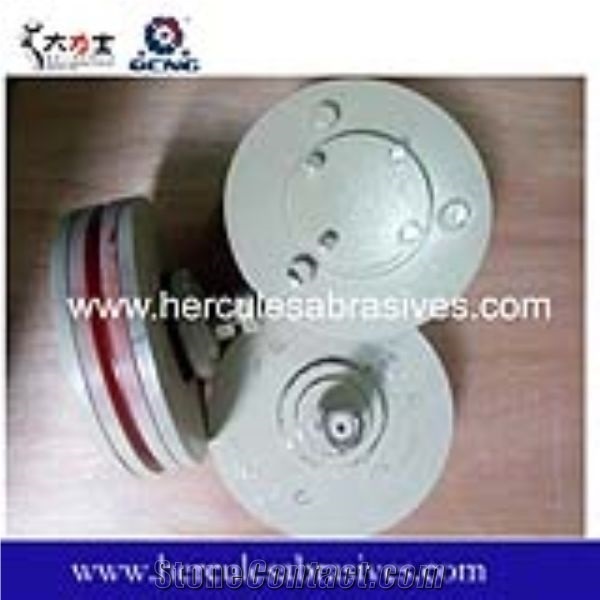

Pulley
-

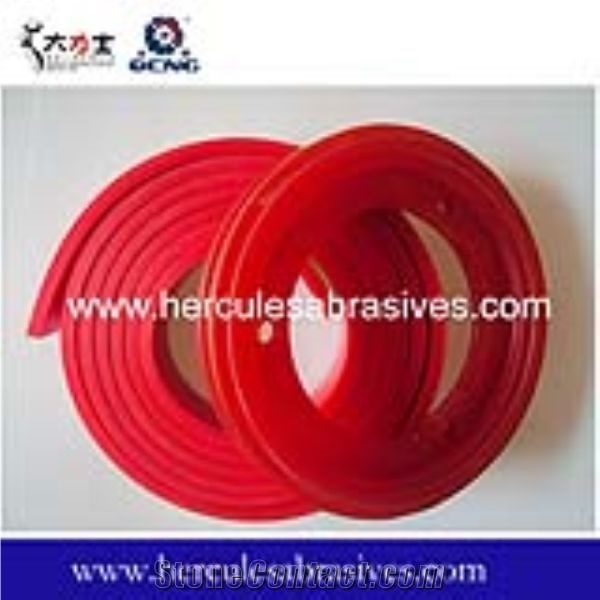

rubber belt/ring
