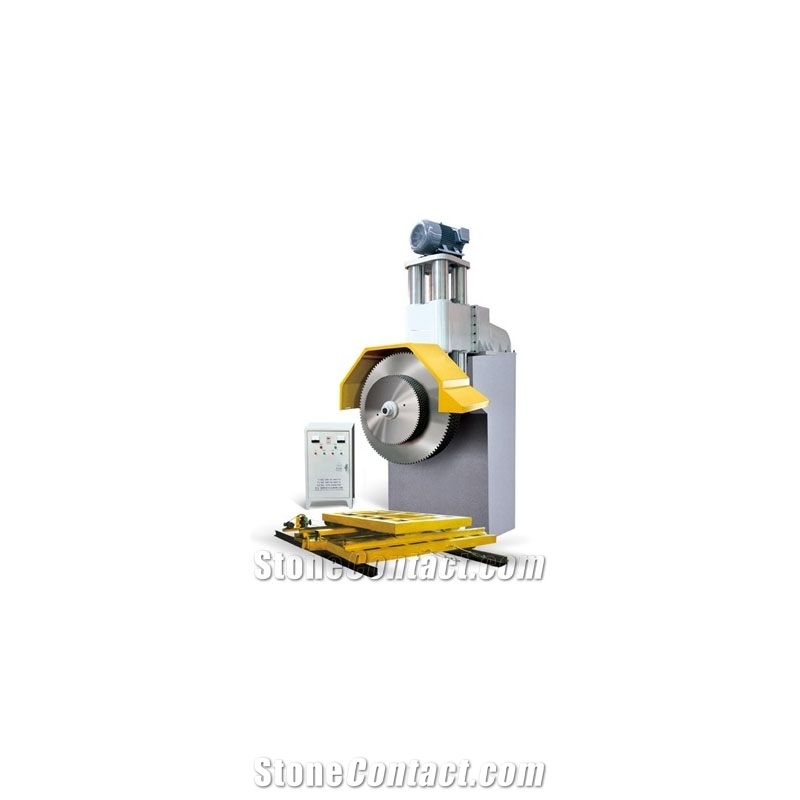

SDB Hydraulic Four-Cylinder Multi-Blades Stone Cutter
FOB Price:$12800-17000
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Arm Block Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
35 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :



Machinery Function Features
1. Fully sealed four-cylinder guide rail is used for rising and falling system, which makes the whole structure more stable.
2. Traditional screw lift is replaced by hydraulic lift, which reduces mechanical wear, maintenance costs and time and lowers production costs, and keeps the machine in the best working stable for a long time.
3. Cylinder Trolley to solve all the problems of traditional reducer traction, which leads to stable and reliable operation and long service life, needn 't regular maintenance.
4. It can be equipped with electric split trolleys according to actual needs
Technical Data
Parameters |
Unit |
SDB 1600D-16 |
SDB 1600D-18 |
SDB 1600D-22 |
SDB 1600D-24 |
Block max. Width-processing size |
mm |
3500 |
3500 |
3500 |
3500 |
Gross power |
kw |
62/82 |
85/97 |
117/139 |
139/157 |
Machine overall length |
mm |
6000 |
6000 |
6000 |
6000 |
Max. diameter of blade |
mm |
2200 |
2200 |
2200 |
2200 |
Max. vertical stroke-lifting stroke |
mm |
2200 |
2200 |
2200 |
2200 |
Total Weight |
Kg |
9000 |
9500 |
10000 |
11000 |
Max. No. of blades |
pcs |
16 |
18 |
22 |
24 |
Worktable size |
mm |
3500x1350x950 |
3500x1350x950 |
3500x1600x950 |
3500x1650x950 |
Machine overall width |
mm |
5000 |
5000 |
5000 |
5400 |
Machine overall height |
mm |
8600 |
8600 |
8600 |
8600 |
Block max. height-processing size |
mm |
1350 |
1350 |
1600 |
1650 |
Max. cutting thickness |
mm |
2200 |
2200 |
2200 |
2200 |
Water consumption |
m3/h |
27 |
30 |
33 |
40 |
Recommended Blade Combination Diameter |
mm |
940-2200 |
940-2200 |
940-2200 |
940-2200 |
Main Motor Power |
kw |
55/75 |
75/95 |
110/132 |
132/150 |
Block max. length-processing size |
mm |
950 |
950 |
950 |
950 |
Work Example
Machine moving as PLC setting, From Top to Bottom, and then next slcing, Top to Bottom
