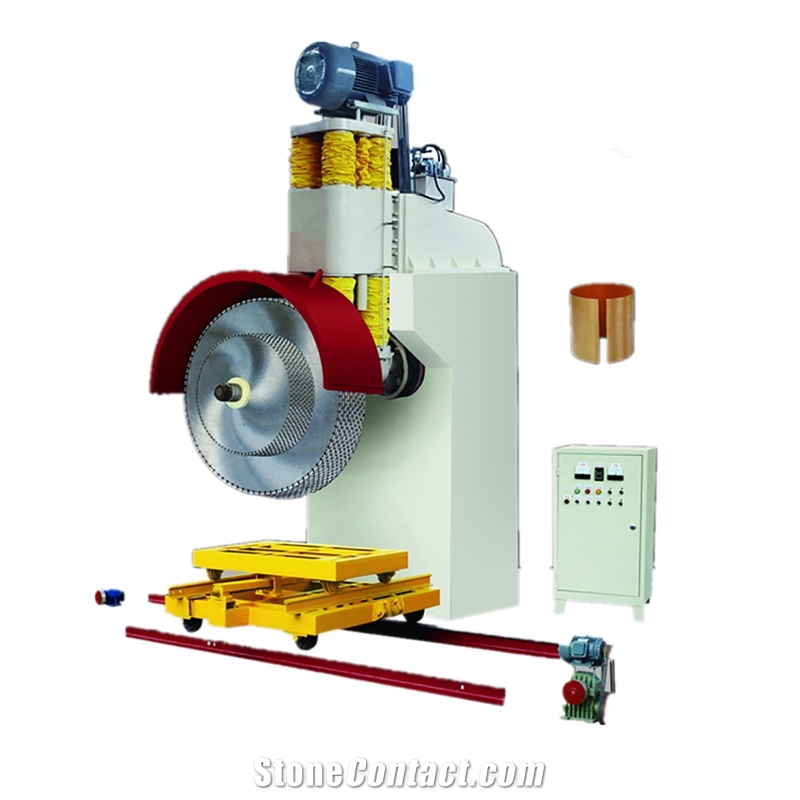

Single Arm Four Pillar Hydraulic Block Cutter
FOB Price:$20000-25000
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Arm Block Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :






More
Machinery Function Features
◆ Machine Features:
The multi-blade granite block cutting machine is suitable for cutting granite block. It uses four guide column structures, adopts high-quality material, host rigidity, with better lubrication, it is easy operation and more convenient maintenance.

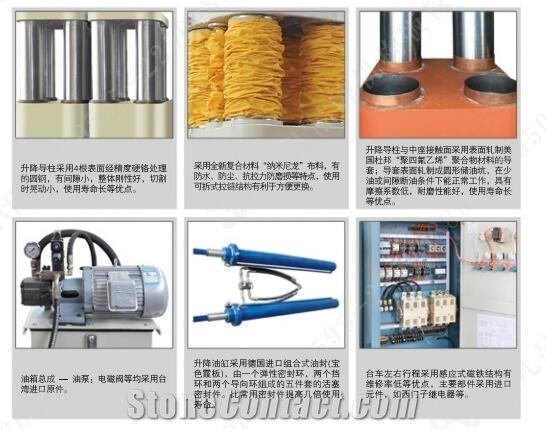

This hydraulic block cutter is optimized and improved from combination saw blades, it adopts four locked hydraulic pillars structure, with good overall rigidity and small gap which can effectively reduce the shaking during cutting, the finished products are with high flatness. At the same time, it has achieved remarkable results in improving the service life of the cutter head and reducing power consumption. The structure of such a machine featured of simple and functional is made up of a sturdy welded stabilized cast iron & steel to ensure maximum stability and utmost precision during sawing.
◆ After Sales Service:
We provide skilled and rich experience technician for installation and after-sale service.
◆Packaging & Shipping:
The machine will be consolidated tighly and safely within container and deliver by sea or railway, we offer fast delivery and prompt react.
Technical Data
Parameters |
Unit |
DFD-D12/16/18/22 |
Machine overall width |
mm |
5500 |
Main Motor Power |
kw |
75 |
Total Weight |
Kg |
9.25 |
Recommended Blade Combination Diameter |
mm |
1650+980 |
Max. diameter of blade |
mm |
1650 |
Machine overall length |
mm |
8500 |
Block max. Width-processing size |
mm |
1450 |
Max. cutting thickness |
mm |
650 |
Block max. length-processing size |
mm |
3000 |
Main spindle diameter |
mm |
120 |
Worktable size |
mm |
3000*1450 |
Water consumption |
m3/h |
30 |
Max. No. of blades |
pcs |
16 |
Max. vertical stroke-lifting stroke |
mm |
1000 |
Machine overall height |
mm |
6800 |
Gross power |
kw |
82.8 |
Block max. height-processing size |
mm |
650 |
Video
Install Video

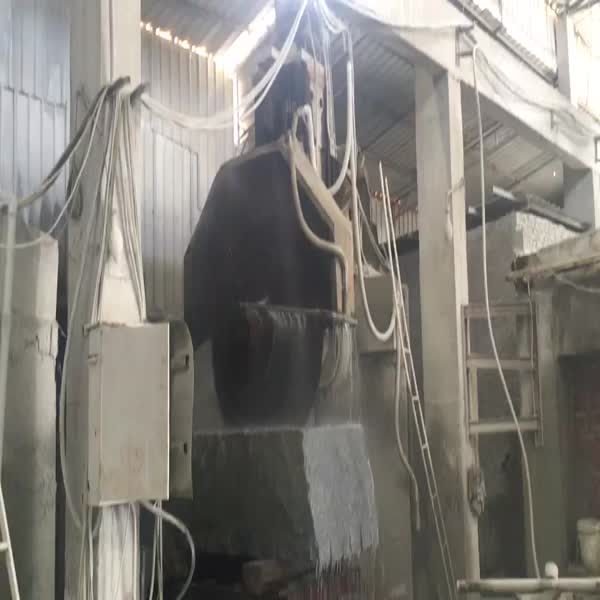

Operation Video
Screen.PrimaryScreen.Bounds.Height
