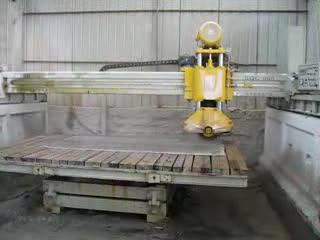

SQC-450/600/700 Bridge Cutting Machine

Name: SQC-450/600/700 Bridge Cutting Machine
Brand: XIAMEN SHUINAN MACHINE CO.,LTD.
SKU: 4603
Price: 21000 USD
Availability: InStock

FOB Price:$21000-23000

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 35 Days

Warranty:12 Months

Install and Guarantee:Remote guidance installation

Maintenance:Remote troubleshooting

Trade Terms

Port: XIAMEN- China

Delivery Details: FOB,CFR,CIF,EXW,Express Delivery

Payment :

Supplier

XIAMEN SHUINAN MACHINE CO.,LTD.

SHUINAN MACHINE

China level 5YR

Eatablished :Sep 10,2018

Main Product:

Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|

Contact supplier

Start Order

You may also like

SQC-450/600/700-4D 4 Post Guide Bridge Cutting Machine

Infrared Fully Automatic Bridge Type Edge Cutting Machine

Visual Intelligence Bridge Cutting Machine For Cutting Slabs

Infrared Stone Bridge Saw Cutting Machine DFQ-H450

Product Detail
Company Profile

Overview
Components
Trade Terms

Machinery Function Features

SQC-450/600/700 (Sliding Plate Type) uses PLC system and human-machine Interface, combined with Ultra-high precision rotary encoder to locate and infrared device,uses inverter to control left-right feeding, adjusts the speed according to the stone material.It uses hydraulic lifting system,main spare parts adopt imported good-quality materials.Thus the whole machine is featured as high cutting effciency,high cutting precision, high stability,easy-operating to suit granite and marble with high value and big size.

Technical Data

Parameters	Unit	SQC-450	SQC-600	SQC-700
Machine length	mm	6000	6000	6000
Machine height	mm	3100	3300	3300
C axis blade rotation	64	0°- 90°	0°- 90°	0°- 90°
Max. workable thickness	4	100	180	220
Machine width	mm	4800	4800	4800
Cooling water requirement(1.5 bar min. pressure)	m3/h	3	3	3
Disc diameter	4	Φ450	Φ600	Φ700
Z-axis working travel vertical cutting spindles	4	220	350	470
Worktable turn-over degree	64	0°- 85°	0°- 85°	0°- 85°
Head motor power	kw	15	18.5	18.5
Dimensions of the work table(L×W)	4	3200×2000	3200×2000	3200×2000
Tools holder head inclination(A axis blade rotation)	64	0°-360°	0°-360°	0°-360°
Approximate weight without table	Kg	5400 (including stand 10000kg)	5600 (including stand 10200kg)	5800 (including stand 10500kg)
Installed electrical power	7	21	24	24
