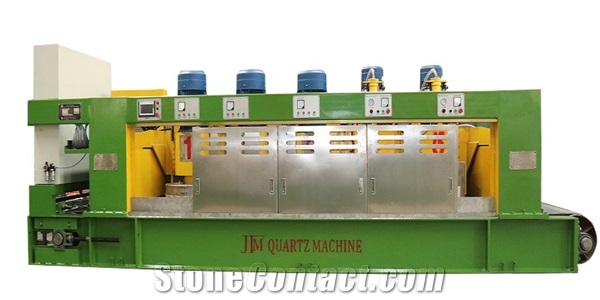

JTM Quartz Stone Calibration Machine, Artificial Stone Calibration Machine
FOB Price:$300000-500000
Type:
Artificial Stone MachinesArtificial Stone Polishing, Calibration Machine
Usage:
Artificial Stone
After-Sale
Lead Time:
30days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Sep 01,2008
Main Product:
Quartz Stone Press Machine, Engineered Stone, Quartz Surfaces, Synthetic Quartz Slab, Composite Quartz Slab|
You may also like
Machinery Function Features
Quality Material:JTM use high strength steel to weld the body of the calibration machine to make sure the machine is strong enough.
Easy Operation And Maintenance:The calibration machine is with very simple design, so the operation and maintenance of the machine are simple and convenient.

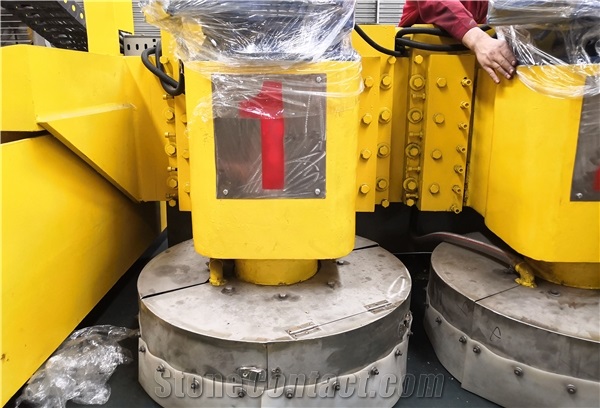

High Efficiency:JTM calibration machine is equipted with heavy duty calibration head with high efficiency
Automation:PLC controlled automatic calibration machine.
Technical Data
Parameters |
Unit |
JTM-2000/4C+2A |
Conveyor belt motor power |
kw |
4.5 |
Max. working width |
mm |
2000 |
Total power |
kw |
120 |
Conveyor belt feed speed |
m/min |
0.8 |
Min. working thickness |
mm |
10 |
Machine overall width |
mm |
3200 |
Sound pressure level |
dB |
60 |
Approx. Weight |
Kg |
20 |
Spindle motor power |
kw |
11 |
Max. working length |
mm |
3500 |
Water Consumption |
m3/h |
200 |
Max. working thickness |
mm |
50 |
Machine overall height |
mm |
2600 |
Conveyor belt width |
mm |
2000 |
Machine overall length |
mm |
11500 |
Number of spindle |
nr |
10 |
Processed Stone Photos

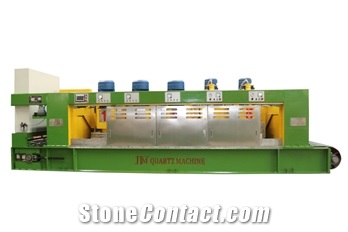

Components
Consumables
