Mining breaker Hand Held Rock Drilling Machine Petrol Yn27

FOB Price:$380-420

Type: Stone Quarry MachinesQuarry Drilling MachineGasoline Rock Drill Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time: 15 days
Warranty:6 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Eatablished :Dec 22,2000

Main Product:

Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features

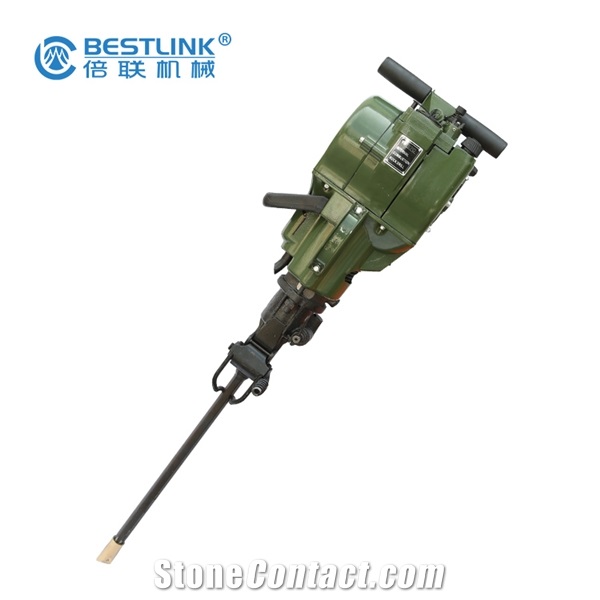

YN27C Internal Combustion Rock Drill YN27C internal combustion rock drill has the functions of drilling, splitting, crushing,tamping, shovel, etc. It can drill holes in the rock, and it can drill down to 6 meters vertically. YN27C internal combustion rock drill is widely used in mining, road construction, quarrying, national defense engineering, etc. Advantage: 1. Small size and lightweight, easy to carry. Weighs only 27kg 2. The machine can still work normally in a harsh operating environment (± 40 °) and has excellent adaptability. 3. The machine is easy to operate, saves time and effort, and features fast rock drilling and high efficiency.
Technical Data
Parameters
Unit
yn27c
Drilling speed
mm/min
More than 250r/min
Overall Height
mm
746
Overall Length
mm
229
Cylinder diameter
mm
58
Total Weight
Kg
27Kg
Overall Width
mm
315
Stroke of piston
mm
70
Drilling hole diameter
mm
42
Max drilling depth
m
6
Type of engine
Single culinder,air cooled two strokes
Software
Model
YN27C
Weight
27Kg
Overall Dimension
746*315*229mm
Engine
Single culinder,air cooled two strokes
Cylinder Diameter*Stroke Piston
58*70mm
Rotating Speed of Engine
More than 2450r/min
Displacement Of Engine
185cm3
Carburetor
Hand needle valve,no floating type
Lginition System
Contrpllable silicon contactless system
Drilling Speed
More than 250r/min
Max Drilling Depth
6M
Fuel Consumption
0.12L/min
Tank Capacity
1.65L
Mixing Ratio of Gasoline and Lubrication Oil
8:1
End of Drill Rod Dimensions
Hexagonal 22*108mm
Rotating Speed of Drill Rod
More than 200r/min
Clearance of Spark Plug
0.5-0.7mm
Processed Stone Photos
  • Processed Stone Photos

Components
Consumables

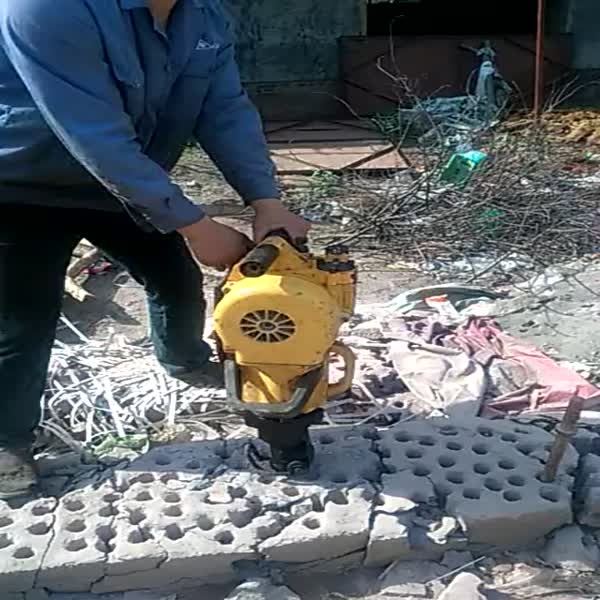

Video
