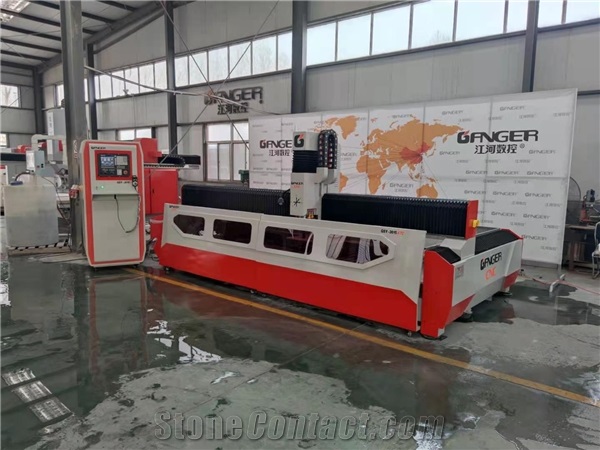

GSY-3015A CNC Router, Cutting Machine, CNC Machining Center
FOB Price:$17755-19999
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Artificial Stone
After-Sale
Lead Time:
25days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Eatablished :Mar 10,2021
Main Product:
Gq-3220d, Gq-3220c, Gq-3220b, Gsy-3015a, Gsy-3015b, Gsy-3015d|
Machinery Function Features
Technical parameters
Model GSY-3015A
X/Y/Z Axis working size 3000*1500*430mm
Working table
Aluminum profile with T-slot and water tank
X/Y/Z Axis transmission
X/Y Axis helical Gear and rack, Z Axis Ball screw
spindle power
ATC spindle 7.5KW(optional)
Max spindle speed 8000rpm
ATC type and capacity Linear ATC, 12 tools
Driver motor servo

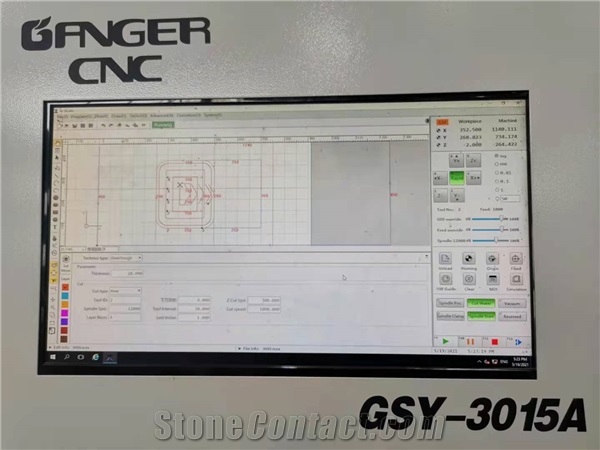

Control system GANGER
Gross weight 3500KGS
Technical Data
Parameters |
Unit |
GSY-3015A |
Y axis stroke |
mm |
1500 |
Tool-holder spindle rotation speed |
r/min |
8000 |
X axis stroke |
mm |
3000 |
Approx. Weight |
Kg |
3500 |
Z axis stroke |
mm |
430 |
Work Example
Processed Stone Photos
-
GSY-3015A
Components
-
1
¥Payment Required
Consumables
-
1
Video
Install Video
Operation Video
