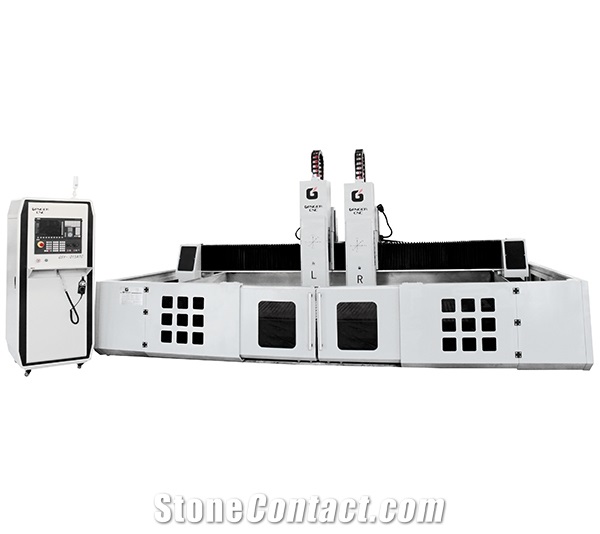

GSY-3015D CNC Machining Center for Countertops

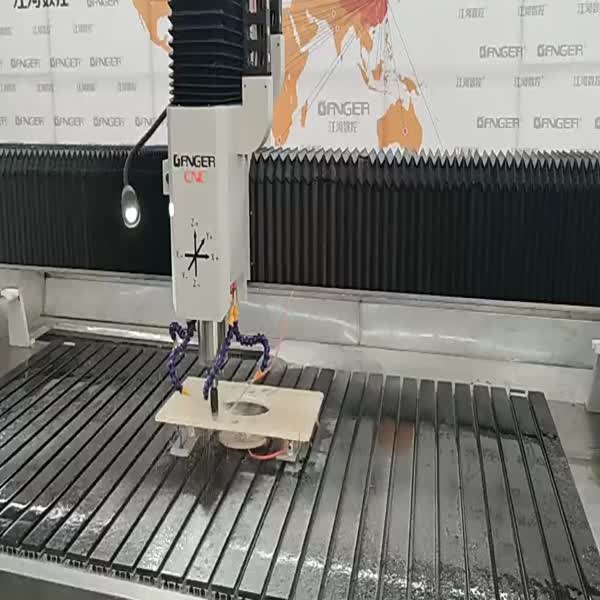

Two Heads CNC Machining Center for Countertops GSY-3015D Machine feature: 1. Double ATC spindle work simultaneously. 2. The spindles can work independently. 3. Linear type auto tool changer, double tool magazines, 12 tools, high efficiency. 4. Do cutting, drilling holes, edge profiling and polishing, finish two countertops simultaneously. 5. International control system, global warranty. Applicable industry and applicable materials Applicable industries: Widely used in CNC processing and production of basins, cabinet countertops, bathroom countertops, bar counters, kitchen countertops, washstands, marble walls, dining tables, coffee tables, window sills, door pockets, etc. Applicable materials: widely used in granite, quartz stone, artificial stone, marble and other stone. Technical parameters Model GSY-3015D X/Y/Z Axis working size 3000*1500*430mm Working table Aluminum profile with T-slot and water tank X/Y/Z Axis transmission X/Y Axis helical Gear and rack, Z Axis Ball screw spindle power ATC spindle 7.5KW(optional) Max spindle speed 8000rpm ATC type and capacity Linear ATC, 12 tools Driver motor servo Control system Siemens Gross weight 4000KGS
