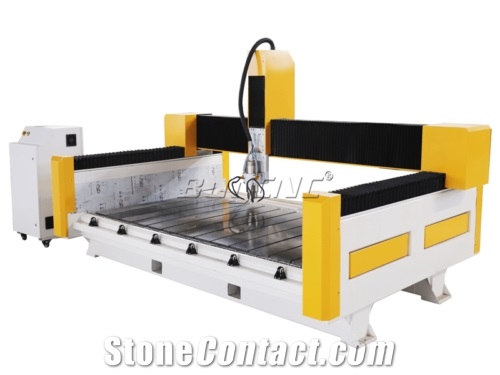

ASC-3015-MTC CNC Stone Cut Router, CNC Design Granite Cutting Machine

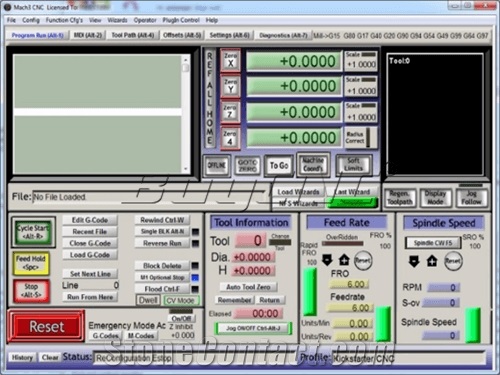

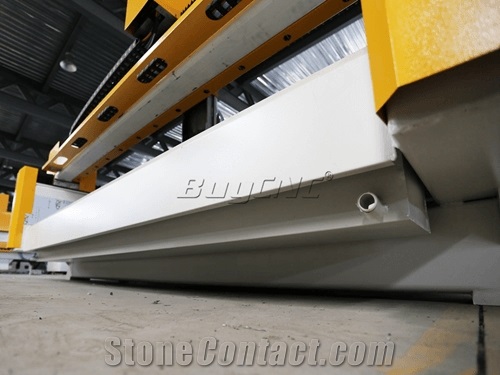

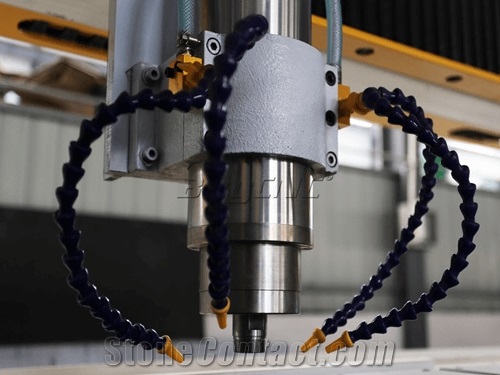

This Stone CNC Machine Which is also as a Granite Cutting tool can be used to cut granite, marble, and other stones. At the same time, as a Stone Design Machine, it can carry out various operations such as engraving, engraving, and punching on the stone. It is a very cost-effective stone CNC Router Descriptions Stone Design Machine Granite Cutting Tools Machine Parameters Model ASC-3015-MTC Custom Made Working Size 2500*1300*300mm 3000*1500*300mm Other size Accuracy ±0.025mm Stone CNC Machine Table Heavy duty steel T-slot table Stone CNC MachineFrame Thick steel machine frame X, Y Structure X/Y Helical German rack and pinion Z Structure Z High precision TBI ball screw XYZ Guide rail XYZ Axis HIWIN Square Rail Spindle Power Powerful 5.5KW Water Cooling Spindle Max. Rapid Travel Rate 30,000mm/min Max. Working Speed 20,000mm/min Drive Motors Yako or Leadshine Way of fixing Workpiece Vacuum cup sucking Operating System Mach 3 Working Voltage AC380V/3PH/50Hz (option:220V or custom made) Command Language G Code Software Option: Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill, Solidworks,etc. Stone Design machine Running Environment Temperature: 0℃~45℃ Relative Humidity: 30%~75%
