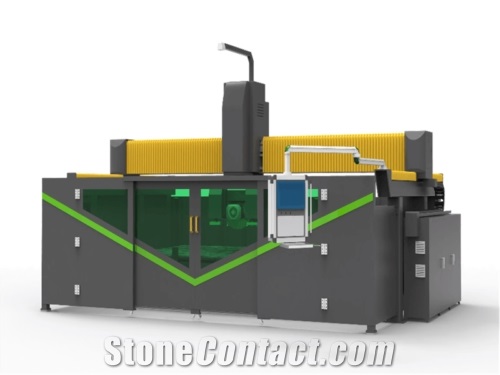

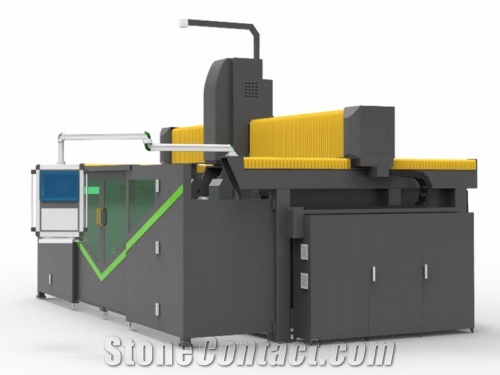

5 Axis CNC Working Center, Bridge Cutting Saw for Stone Big Stone Cutting Machine ASC-2032-S-5

The CNC 5 axis bridge cutting machine is a cost-effective stone processing machine tailor-made for the majority of stone companies in order to meet the diversified processing needs of the market. This 5 axis granite cutting machine is a multifunctional CNC stone router machine, it can process almost all stone. As a 5 axis stone cutting machine, it come with Five-axis cnc bridge saw, which support tool tip follow RTCP, high precision and easy to learn and understand. More over it can complete 5D plane And 3D carving. You only need to buy this 5 axis marble cutting machine to complete almost all the tasks required by small processing plants. Descriptions 5 axis Stone Cutting Machine Parameters Model ASC-2032-S-5 Working Area 3200*2000mm Spindle Power 13KW Italian spindle Accuracy ±0.025mm Angle of A-axis (top view of spindle) 360° Angle of C-axis (top view of spindle) 0-90°,or 0°,45°,90°(for option) Table Surface Steel Max. Rapid Travel Rate 40,000mm/min Max. Working Speed 20,000mm/min Gear reducer Japan Shimpo Drive Motors Yaskawa Servo Motor Working Voltage 380V 3 phase Command Language G Code Operating System Taiwan Syntec Software Italian Pegasus Running Environment Temperature: 0℃~45℃ Relative Humidity: 30%~75%
