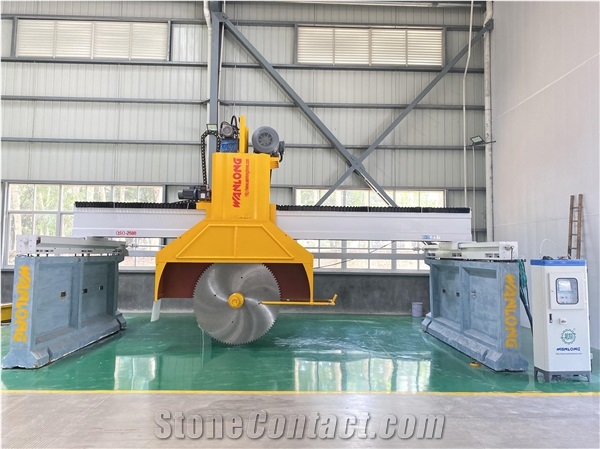

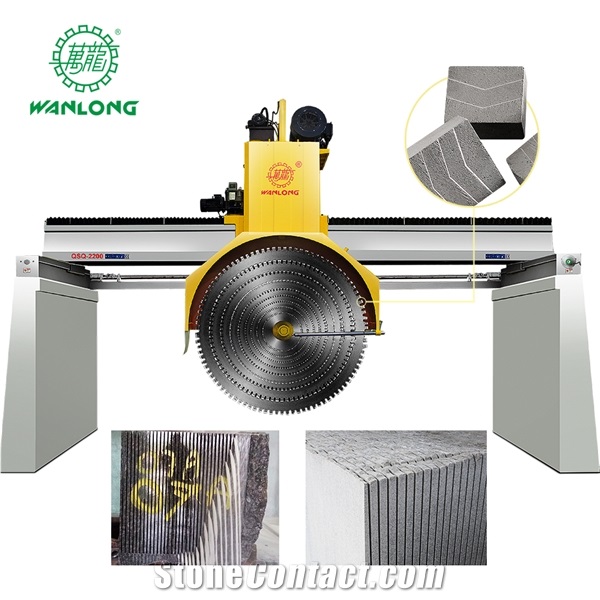

WANLONG QSQ-2200/2500/3000 Multi-Blade Block Cutting Machine

FOB Price:$27000-520000

Type: Stone Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw Cutting Centre–Vertical
Usage: Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

FuJian WanLong Diamond Tools CO,.LTD

FuJian WanLong Diamond Tools CO,.LTD
WANLONG

ChinaChina idicon

Eatablished :Jan 08,1993

ISO9001-2000,SGS,TUV

Main Product:

Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|

Contact supplier

Start Order

You may also like
Hydraulic Lifting Multi-Blade Stone Cutting Machine
Hydraulic Lifting Multi-Blade Stone Cutting Machine
Modulgranito -Pedrini Arco di Trionfo M594-M595-M596 Cutting Center for Granite Blocks
Modulgranito -Pedrini Arco di Trionfo M594-M595-M596 Cutting Center for Granite Blocks
NT2 60+SM - Cutting Centres for Granite Blocks
NT2 60+SM - Cutting Centres for Granite Blocks
STANDISH Multi-Blade Gang Saw- Block Cutting Machine
STANDISH Multi-Blade Gang Saw- Block Cutting Machine
WSM80 Multi Blade Diamond Marble- Granite Gang Saw Block Cutting Machine
WSM80 Multi Blade Diamond Marble- Granite Gang Saw Block Cutting Machine
  • Overview
  • Components
  • Video
  • Customer Case
Machinery Function Features

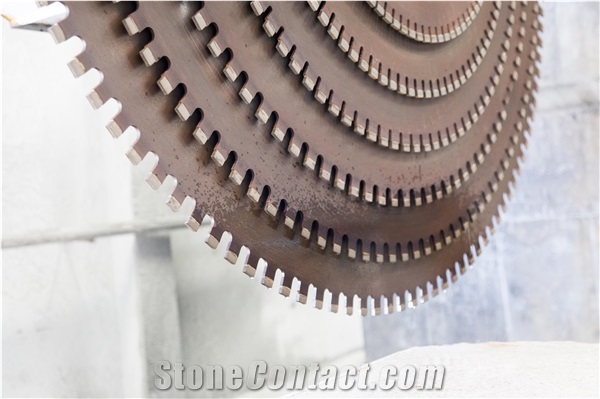

QSQ2200/2500/3000 combines different diameters of blades working simultaneously as multiblade cutting. It has screw-rod lifting system and hydraulic lifting system for choice. The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ). Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper. It is also flexible in modification for Single blade cutting.
Technical Data
Parameters
Unit
QSQ-2200
QSQ-2500
QSQ-3000
Bridge Stroke (W axis)
mm
950
1100
1350
Production Capacity
m2/h
7
6
3
Max. block length
mm
950
1100
1350
Machine front dimension
mm
7500X4350
7500X4350
7500X4350
Max. block height
mm
2100
2100
2100
Control system
PLC(imported Brand)
PLC(imported Brand)
PLC(imported Brand)
Vertical disks diameter
mm
2200
2500
3000
Voltage
380V/50Hz
380V/50Hz
380V/50Hz
Max. vertical disks quantity
pcs
9
5
1
Installed power
kw
45/55
45/55
45/55
Water consumption
m3/h
30
30
30
Machine heigth
mm
6000
6500
6700
Max. block width
mm
3600
3800
3800
Certification
CE Certificate
CE Certificate
CE Certificate
Approx. Weight
Kg
12000
12000
12000
Software

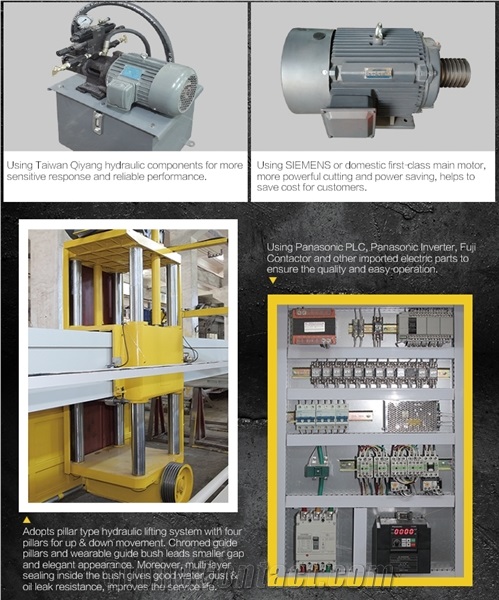

1. SIEMENS or indigenous main motor, 45KW.
2. PANASONIC PLC, PANASONIC converter, FUJI contactor

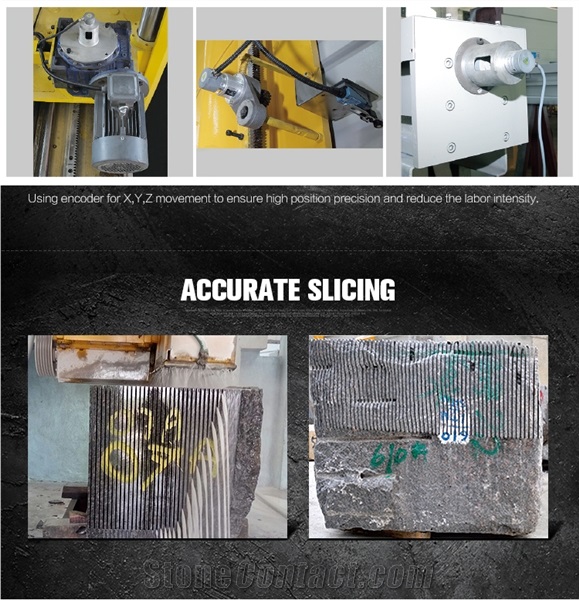

3. Encoder for X, Y, Z (left & right, up & down, and forward & backward) movement.
4. Crossbeam length 7.5 meter, Side beam length 3.7 meter
5. Equiped locking devices on side beams to avoid crossbeam shifting
6. With pulley cover for better protection
7. Adopts reductor RV130 for feeding.
8. Pillar type hydraulic lifting system.
9. Crossbeam size 7500x530x600mm

Work Example

It has screw-rod lifting system and hydraulic lifting system for choice. The crossbeam moves for feeding so that the table for block is not necessary ( which does not supply along with machine, only available upon request ). Heavy duty strcuture, logical control system, easy operation together with " Wanlong" blade give high production and also make the finish slab with flat surface, no tapper.

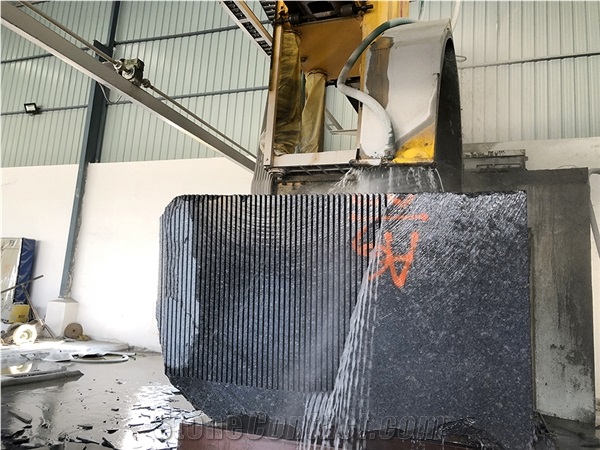

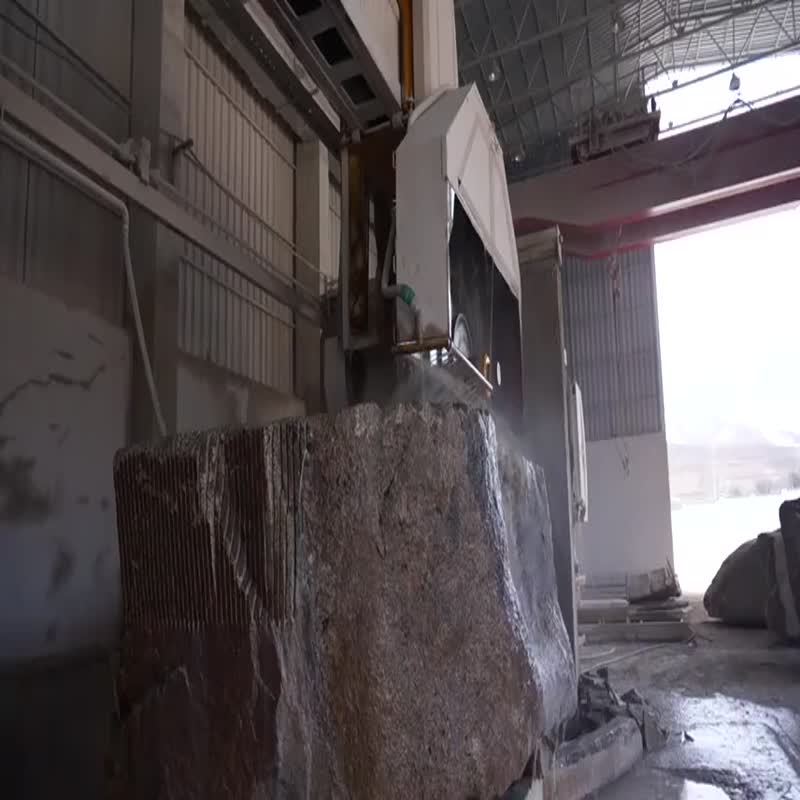

Processed Stone Photos
