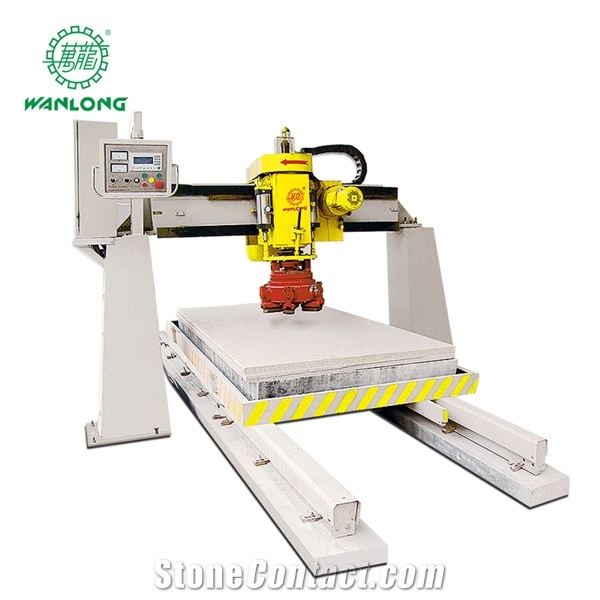

Wanlong Stone Machinery QDM-900/1800 Bridge Single Head Automatic Polisher
FOB Price:$10000-11000
Type:
Stone Factory MachinesStone Surface Processing Machines Single Head Polishing Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
Machinery Function Features
QDM-900/1800 type Bridge Single Head Automatic Polisher is used to grind and polish stone slab. Same machine could be used for granite or mable polishing, but differences on polishing head to be installed.
Technical Data
Parameters |
Unit |
QDM-900 |
QDM-1200 |
QDM-1800 |
Compressed air min. pressure |
bar |
0.35-0.5 |
0.35-0.5 |
0.35-0.5 |
Machine overall height |
mm |
2000 |
2000 |
2000 |
Polishing head vertical travel |
mm |
150 |
150 |
150 |
Polishing slabs efficiency |
m2/h |
2-2.5 |
2.5-3 |
3-3.5 |
X axis max. speed |
mm/min |
0-5600 |
0-5600 |
0-5600 |
Slabs max. processable width |
mm |
900 |
1200 |
1800 |
Number of polishing head |
pcs |
1 |
1 |
1 |
Power of single polishing head |
kw |
15 |
15 |
15 |
Machine overall length |
mm |
6500 |
6500 |
6500 |
Approx. Weight |
Kg |
2000 |
2500 |
3000 |
Diameter of polishing heads/plates |
mm |
220 |
220 |
220 |
Slabs max. processable thickness |
mm |
120 |
120 |
120 |
Machine overall width |
mm |
2200 |
2500 |
3100 |
Slabs max. processable length |
mm |
3000 |
3000 |
3000 |
Work Example
QDM-900/1800 type Bridge Single Head Automatic Polisher is used to grind and polish stone slab. Same machine could be used for granite or mable polishing, but differences on polishing head to be installed.
- SIEMENS or indigenous premium beand main motor, 15KW
- 2. PANASONIC PLC, PANASONIC converter for left & right polishing speed control, FUJI contactor
- 3. Hydraulic lifting head
- 4. Maximum polishing size 3000x1800x120mm
Processed Stone Photos
Components

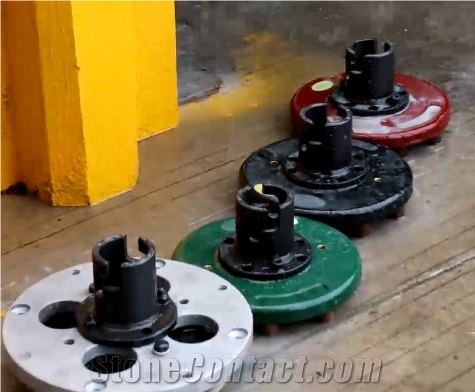

Consumables
